Wheel Hub: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-

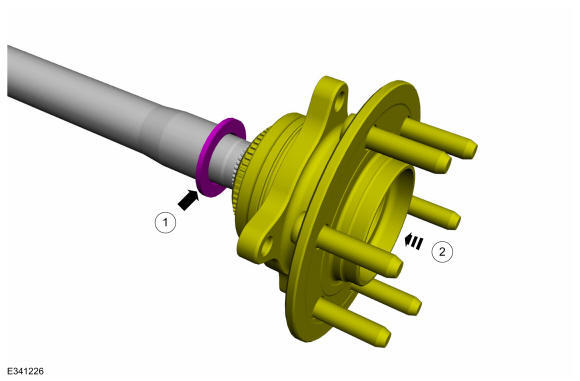

- Install the inboard washer.
- Using general equipment, press the wheel hub assembly onto the axle shaft.
Use the General Equipment: Hydraulic Press
-

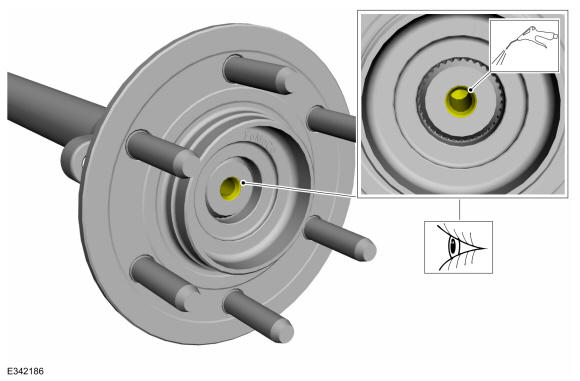

NOTE: Make sure that the threaded holes are clean and free of foreign matter.
Using compressed air, clean the internal threads of axle shaft.
-
NOTE: Make sure a new bolt is installed.

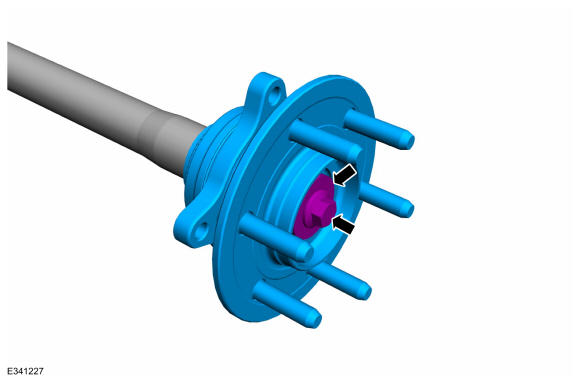

Install the washer and tighten the bolt.
Torque
Stage 1: 52 lb.ft (70 N.m)
Stage 2: 90°
- Install the axle shaft. Refer to: Axle Shaft .
