Axle Shaft: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear brake disc. Refer to: Brake Disc .

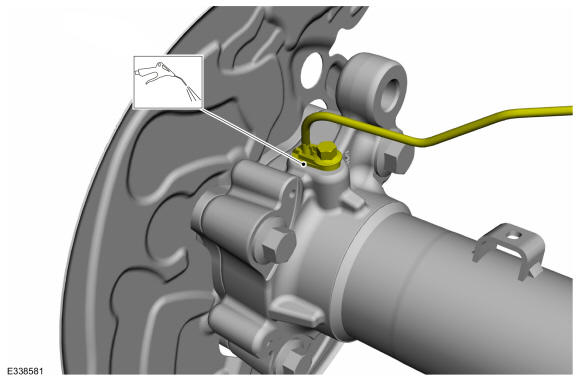

On both sides. Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the wheel speed sensor bolt and position aside the wheel speed sensor.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the different lengths of the bolts.

NOTE: The bolts are to be reused.

Remove the bolts and axle shaft.

Torque

: 166 lb.ft (225 Nm)

Courtesy of FORD MOTOR COMPANY
