Drive Pinion Seal: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

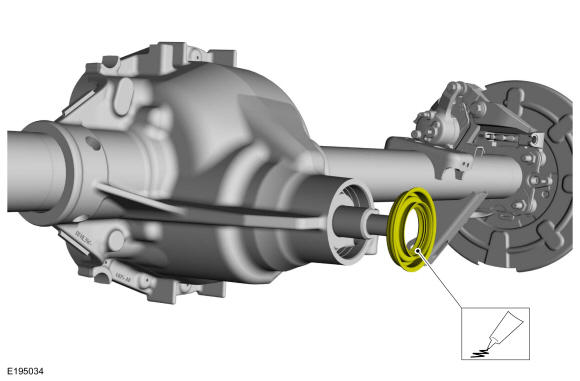

  1. Lubricate the new drive pinion seal lip with grease.

    Material

    : Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

    GFD551896Courtesy of FORD MOTOR COMPANY
  2. Using the special tool, install the drive pinion seal. Use Special Service Tool: 205-208 (T83T-4676-A) Installer, Drive Pinion Oil Seal.
    GFD551897Courtesy of FORD MOTOR COMPANY
  3. Install the drive pinion flange. Refer to: Drive Pinion Flange .
