Axle Assembly: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not apply heat or flame to the shock absorber or strut tube. The shock absorber and strut tube are gas pressurized and could explode if heated. Failure to follow this instruction may result in serious personal injury.

WARNING: Keep all body parts clear of shock absorbers or strut rods. Shock absorbers or struts can extend unassisted. Failure to follow this instruction may result in serious personal injury.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear brake discs. Refer to: Brake Disc .

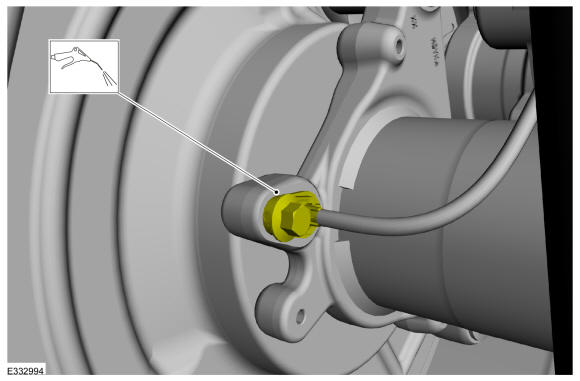

On both sides. Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the wheel speed sensor bolt and position aside the wheel speed sensor.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

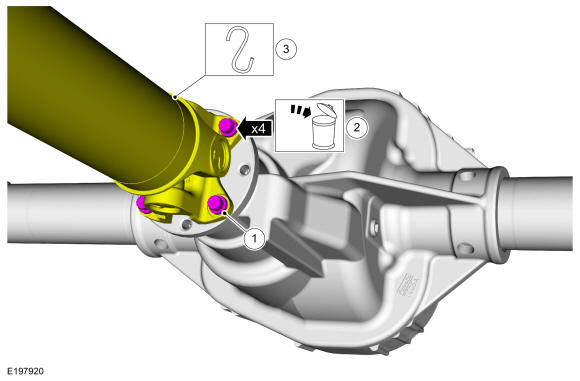

1. Index-mark the driveshaft flange to the pinion flange to maintain alignment during installation.
2. Remove and discard the driveshaft flange to pinion flange bolts.
  Torque: 76 lb.ft (103 Nm)
3. NOTE: The driveshaft flange fits tightly on the flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft flange from the flange pilot.

  Separate the driveshaft flange from the pinion flange and support the driveshaft.
Courtesy of FORD MOTOR COMPANY

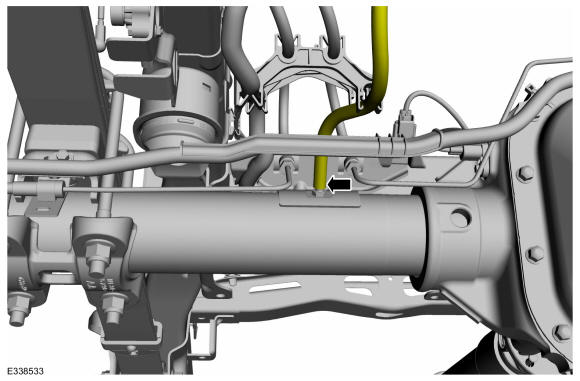

Disconnect the axle assembly vent hose.

Courtesy of FORD MOTOR COMPANY

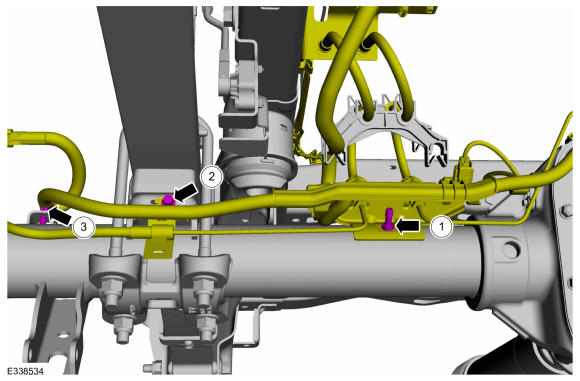

1. Remove the axle assembly vent.
  Torque: 159 lb.in (18 Nm)
2. Remove the brake tube and ABS harness mounting bracket bolt.
  Torque: 22 lb.ft (30 Nm)
3. Remove the ABS harness push pin.
Courtesy of FORD MOTOR COMPANY

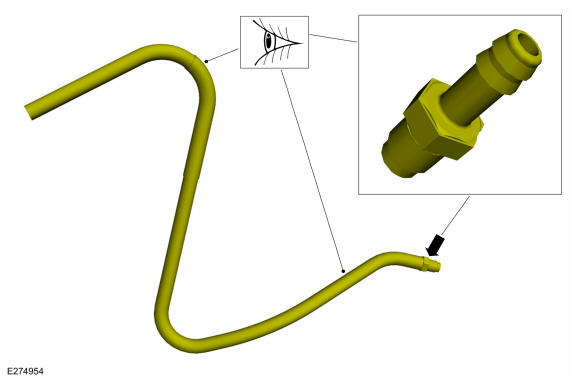

NOTE: Make sure the axle assembly vent tube and vent plug is not damaged or blocked.

NOTE: This step is not necessary when installing a new component.

NOTE: Apply loctite to the vent plug threads while installing vent plug into the axle assembly.

Install new vent tube and vent plug if the vent tube or plug is blocked or cracked.

Material

: Motorcraft® Threadlock and Sealer / TA-25-B

Courtesy of FORD MOTOR COMPANY

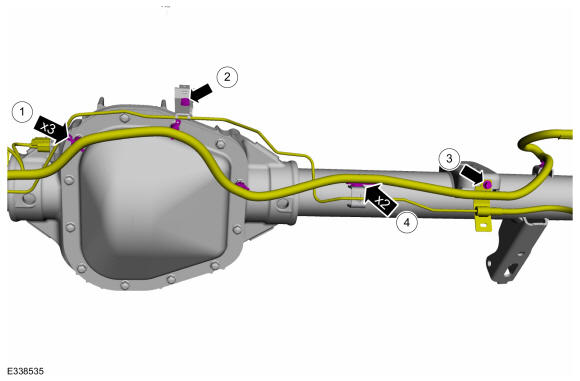

1. Separate the ABS harness clips from the differential housing cover stud bolts.
2. Remove the brake line mounting bolt from the top of the axle assembly.
  Torque: 18 lb.ft (25 Nm)
3. Remove the brake line and ABS harness mount bolt from the RH rear spring seat.
  Torque: 22 lb.ft (30 Nm)
4. Remove the brake line and ABS harness push pins from the RH axle tube.
Courtesy of FORD MOTOR COMPANY
If equipped. Disconnect the ELD connector.

Courtesy of FORD MOTOR COMPANY
Support the axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
On both sides. Remove and discard the rear shock absorber lower nuts and bolts. Use the General Equipment: Transmission Jack
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

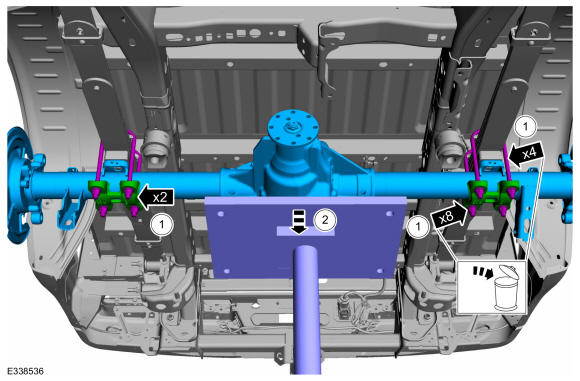

1. NOTE: The rear axle must be supported before removing the rear spring U-boats.

  NOTE: The rear spring U-boats need to be tightened in a cross pattern with the vehicle resting on the wheels and tires (curb height).

  With the axle assembly supported with a transmission jack, remove and discard the rear spring U-boats and U-boat nuts and remove the U-boat mounting plates. Use the General Equipment: Transmission Jack

  Torque: Stage 1: 30 lb.ft (40 Nm); Stage 2: 59 lb.ft (80 Nm); Stage 3: 89 lb.ft (120 Nm); Stage 4: 111 lb.ft (150 Nm)
2. Lower the transmission jack and remove the axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
