Differential Carrier - Vehicles With: Electronic Locking Differential (ELD): Assembly

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

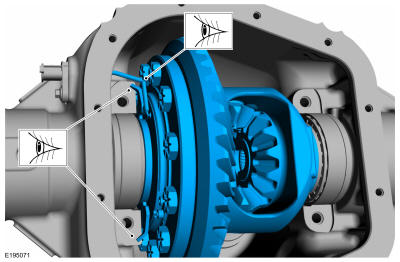

Using the general equipment, install the new differential bearings. Use Special Service Tool: 205-D044 (D81T-4221-A) Installer, Differential Carrier Bearing.

Courtesy of FORD MOTOR COMPANY

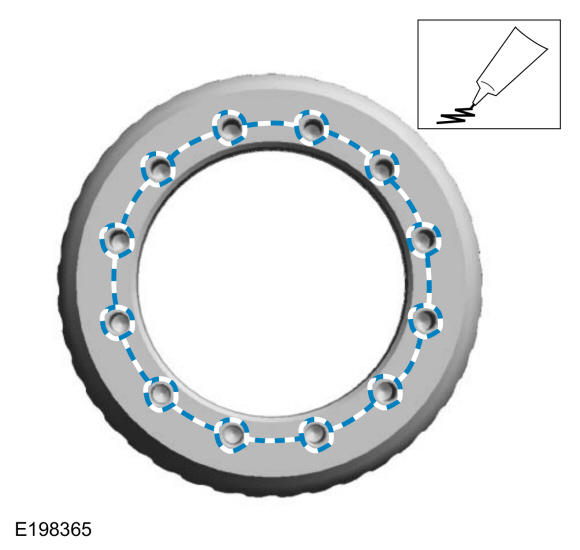

Apply a one-eighth inch bead of maximum strength retaining compound on the rear face of the ring gear in the pattern shown.
Material

: Retaining Compound / Loctite® 638™ (WSK-M2G349-A8)

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the ring gear bolts in a cross pattern.

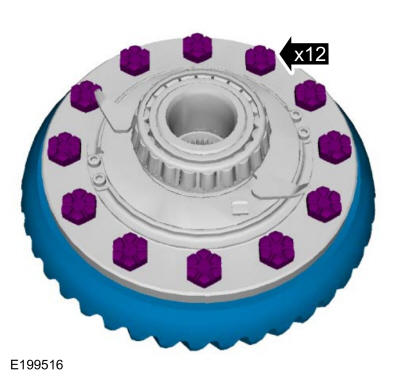

Install the ring gear and the new differential ring gear bolts. Tighten in 2 stages.

Torque: Stage 1: 44 lb.ft (60 Nm); Stage 2: 90 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care not to damage the wiring harness.

NOTE: Install the differential with the tabs on the ELD coil up against the differential bearing cap mounting surface.

Install the differential carrier. Refer to: Differential Carrier .
