Tailgate Release Switch: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate release handle. REFER to: Tailgate Release Handle .
  2. NOTE: This step is only necessary when installing a new component.

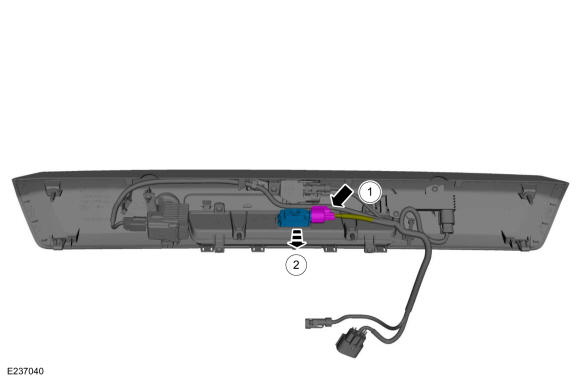

    Remove the tailgate release switch.

    1. Disconnect the tailgate release switch electrical connector.
    2. Remove the tailgate release switch from the tailgate release handle.

GFD206908Courtesy of FORD MOTOR COMPANY
