Rear Door Upper Latch - Super Cab: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door trim panel. REFER to: Rear Door Trim Panel - Super Cab .

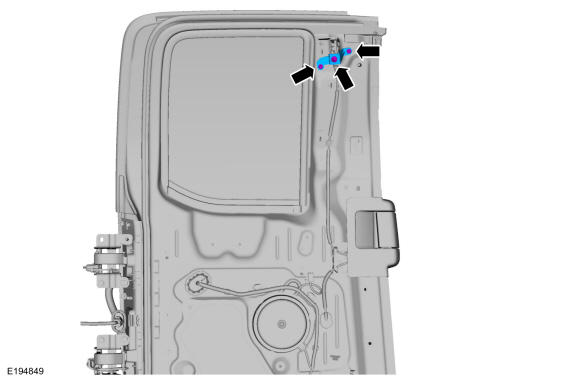

Remove the rear door upper latch bolts and the upper door latch bracket.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

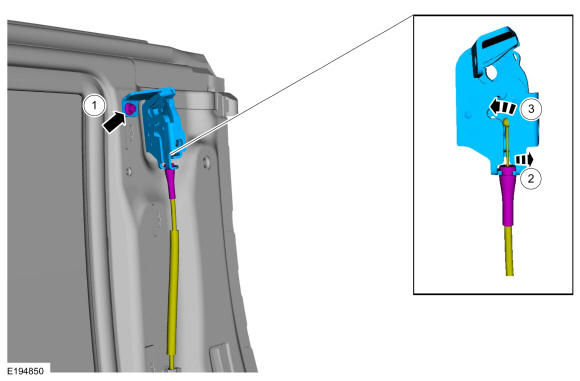

Remove the rear door upper latch.
1. Remove the rear door upper latch bolt.
  Torque: 106 lb.in (12 Nm)
2. Detach the cable from the retaining bracket.
3. Release the upper cable end from the rear door upper latch.

Courtesy of FORD MOTOR COMPANY
