Rear Door Cable - Super Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

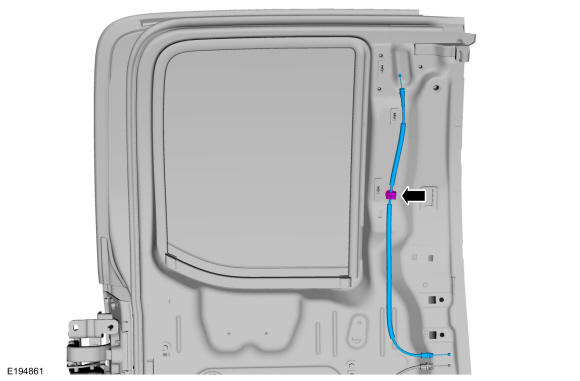

LH side shown, RH side similar.
Upper door latch cable
- Remove the interior rear door handle. REFER to: Interior Rear Door Handle - Super Cab .
- Remove the rear door upper latch. REFER to: Rear Door Upper Latch - Super Cab .
- Remove the rear door upper latch cable.
Lower door latch cable
-
NOTE: The lower door latch cable is serviced with the rear door lower latch as an assembly.
Remove the rear door lower latch. REFER to: Rear Door Lower Latch - Super Cab .
