Door Latch Lubrication
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| Flat-Bladed Screwdriver |
|---|
Materials
| Name | Specification |
|---|---|
| Motorcraft ® Multi-Purpose Grease Spray XL-5-A | ESB-M1C93-B |
Activation
NOTE:
Typical left front door shown, others similar.

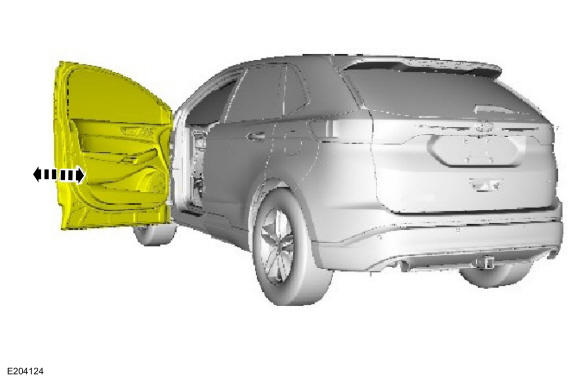

- Open the door.

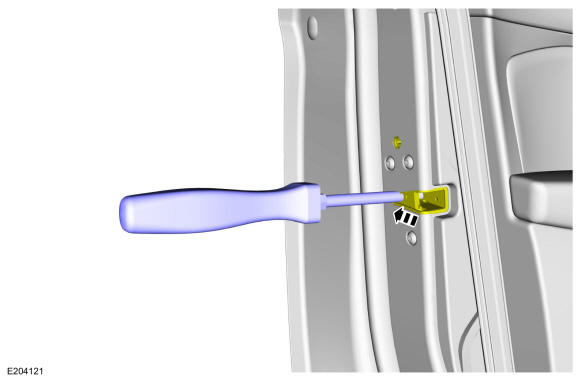

- Using a flat blade screwdriver, fully close the latch (2 clicks). Use the General Equipment: Flat-Bladed Screwdriver
-
NOTE: Do not over-lubricate the latch. Using excessive grease may damage the internal lock motor.

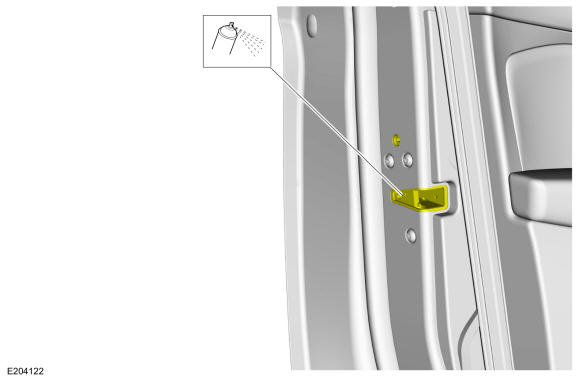

Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.
Material: Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)
-
NOTE: Some exterior door handles are operated mechanically while other exterior door handles are operated electronically.

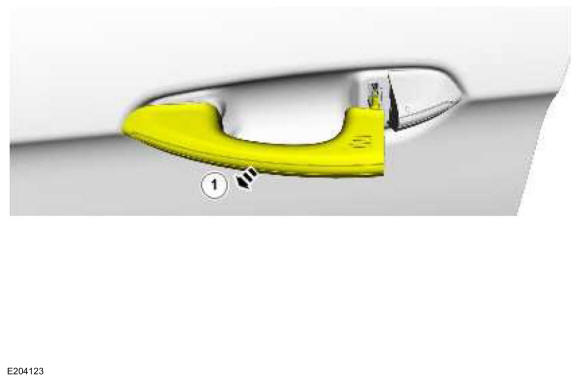

Open the latch using the exterior door handle.
- Open and close the door several times to circulate the lubricant inside the latch.

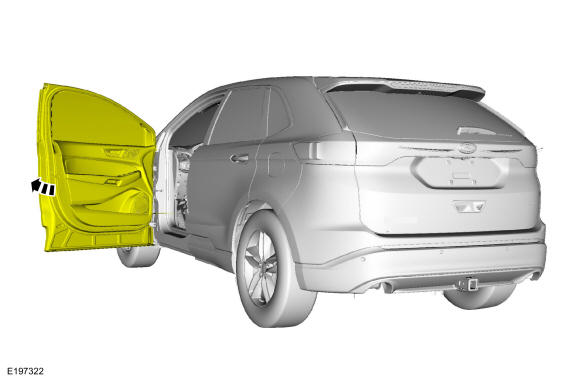

- Open the door.

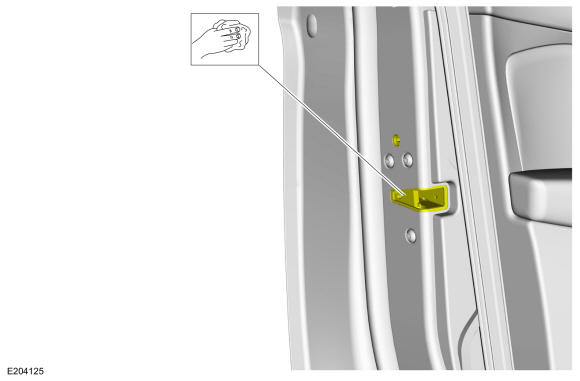

- Wipe off any excess grease.
