Axle Shaft: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
    • Inspect the axle shaft seal.

    • Lubricate the axle seal lip.

      Material

      : Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

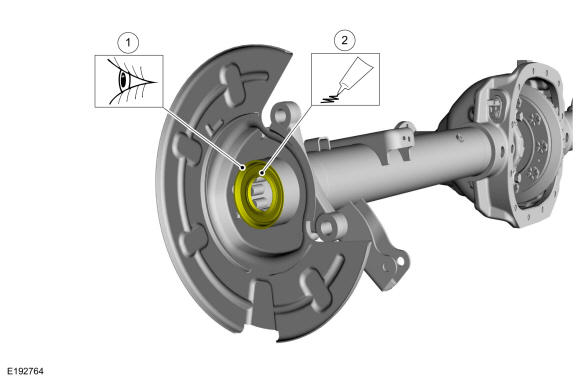

    GFD551733Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
