Differential Fluid Level Check

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Special Tool(s) / General Equipment

Fluid Suction Gun

Materials

Name	Specification
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL	WSS-M2C942-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

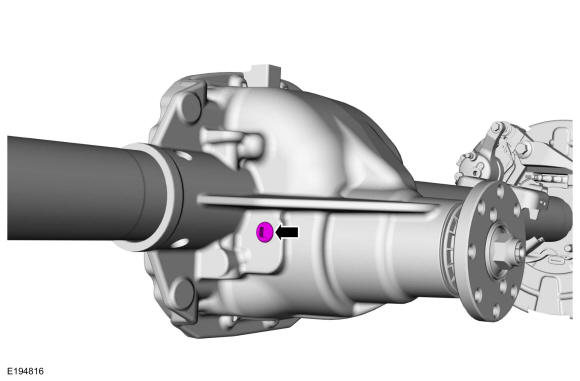

Remove the differential fluid fill plug.

Courtesy of FORD MOTOR COMPANY

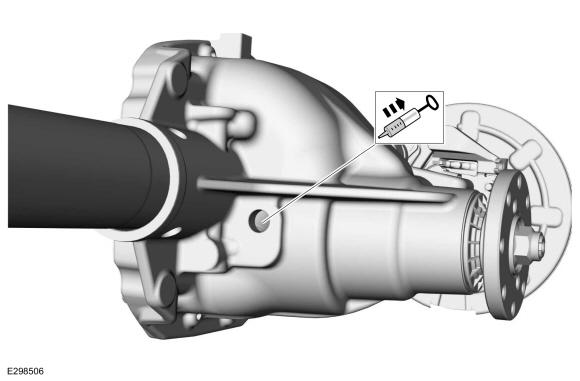

If draining is needed. Using a general equipment, remove as much fluid as possible from the RDU. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY

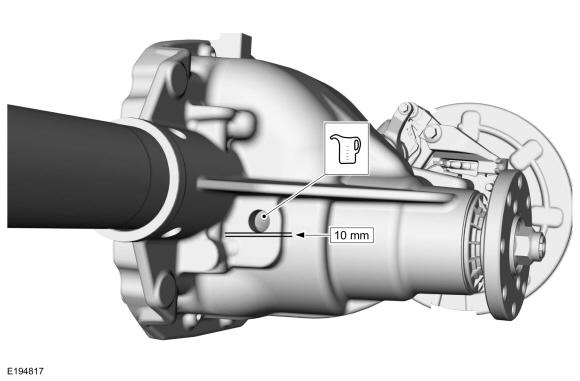

Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 10 mm (0.0394 in.) from the fluid level fill plug opening. Refer to: Specifications .
Material

: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the differential fluid fill plug.
Torque: 38 lb.ft (51 Nm)

Courtesy of FORD MOTOR COMPANY
