Removal And Installation: Tailpipe: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: The isolator must be installed using the same bolt installation sequence as the removal process.

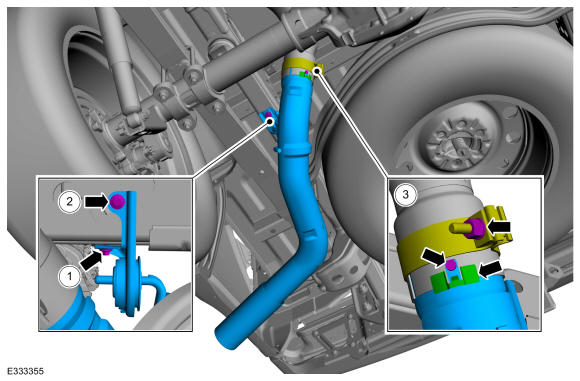

1. Remove the bottom frame rail bolt.
  Torque

  : 22 lb.ft (30 Nm)
2. Remove the side frame rail bolt and the isolator.
  Torque

  : 22 lb.ft (30 Nm)
3. During removal release the tailpipe clip and separate the tailpipe. Loosen the clamp and remove the tailpipe.
  Torque

  : 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
