Muffler Inlet Pipe: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Muffler inlet pipes will vary in configuration with different wheelbases and powertrains. Typical application shown in illustration.

NOTE: The muffler inlet pipe on hybrid variants contains the hybrid engine exhaust heat exchanger.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

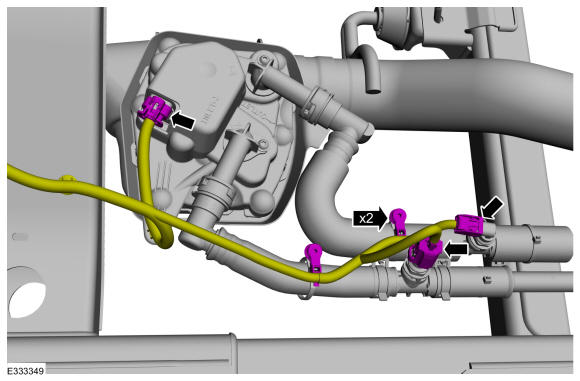

Disconnect the electrical connectors and detach the wire clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Coolant spillage from the disconnected coolant hoses must be prevented using hose clamps.

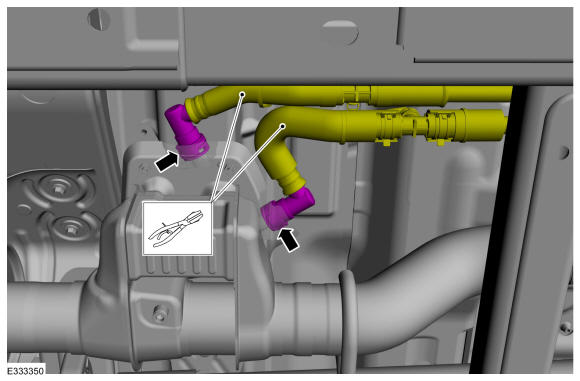

Release the coolant hoses from the heat exchanger. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Remove the muffler assembly. Refer to: Muffler .

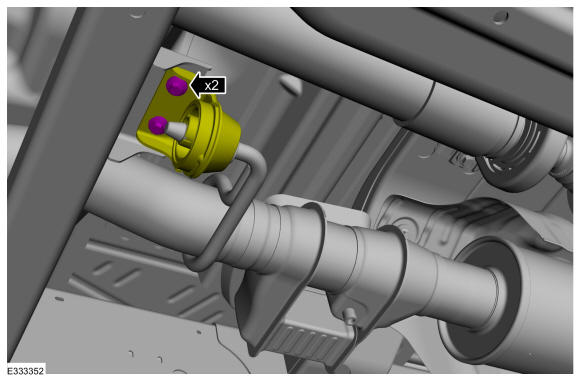

Remove the isolator bolts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

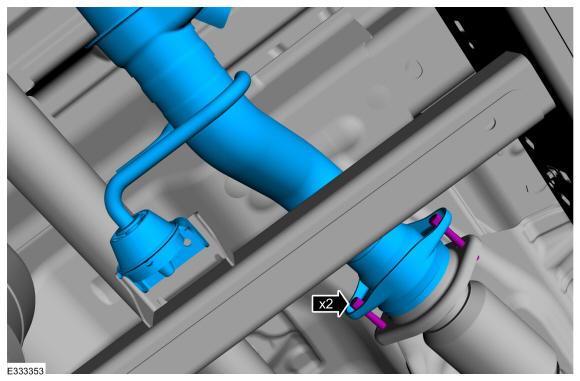

Remove the bolts and the muffler inlet pipe.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
