Exhaust System - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

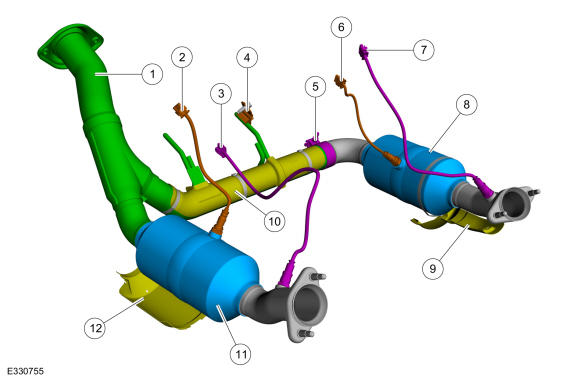

Exhaust hot end assembly
| Item | Description |
|---|---|
| 1 | Exhaust Y-pipe |
| 2 | RH exhaust gas oxygen sensor - downstream |
| 3 | RH exhaust gas oxygen sensor - upstream |
| 4 | Isolator |
| 5 | Exhaust clamp |
| 6 | LH exhaust gas oxygen sensor - downstream |
| 7 | LH exhaust gas oxygen sensor - upstream |
| 8 | LH catalytic converter |
| 9 | LH catalytic converter heat shield |
| 10 | Exhaust Y-pipe heat shield |
| 11 | RH catalytic converter |
| 12 | RH catalytic converter heat shield |

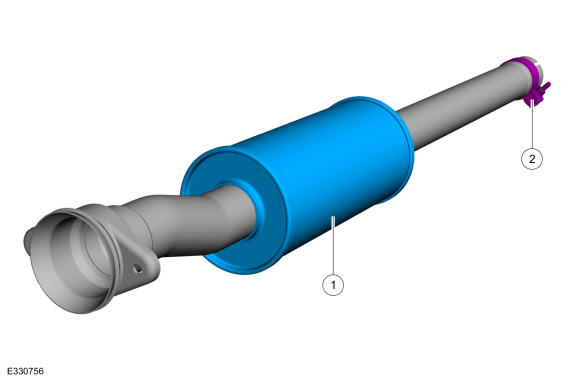

Exhaust intermediate pipe
| Item | Description |
|---|---|
| 1 | Resonator |
| 2 | Exhaust clamp |

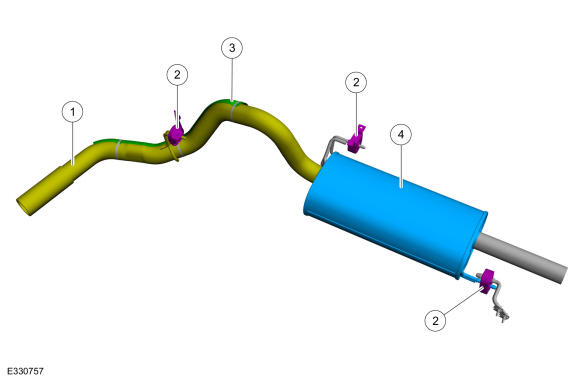

Muffler and tailpipe assembly
| Item | Description |
|---|---|
| 1 | Tailpipe |
| 2 | Isolators |
| 3 | Heat shield |
| 4 | Muffler |
