Catalytic Converter LH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Clean all exhaust connections before reassembly.
NOTE: This step is only required if you are replacing with new components.

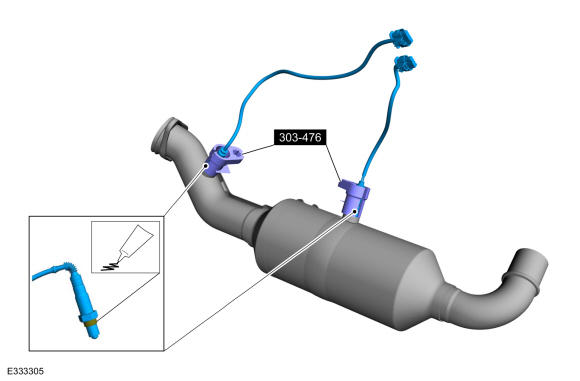

Apply anti-seize to thread of sensor. Using the special tool, install the HO2S and the catalyst monitor sensors.

Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material

: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new nuts are installed.

NOTE: The nuts and clamp are only finger tight at this step.

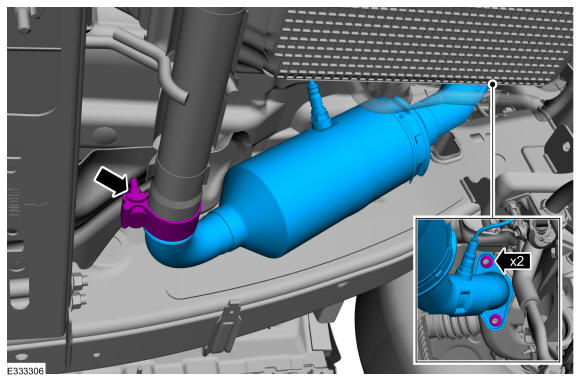

Position the LH catalytic converter in vehicle. Install the LH catalytic converter nuts and position in place the clamp.

Courtesy of FORD MOTOR COMPANY

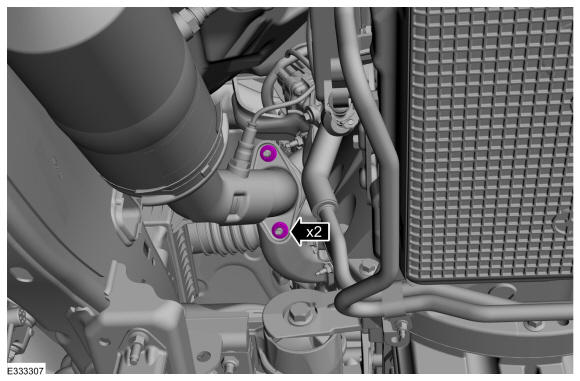

NOTE: Evenly tighten the LH catalytic converter nuts.

Tighten the LH catalytic converter nuts.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

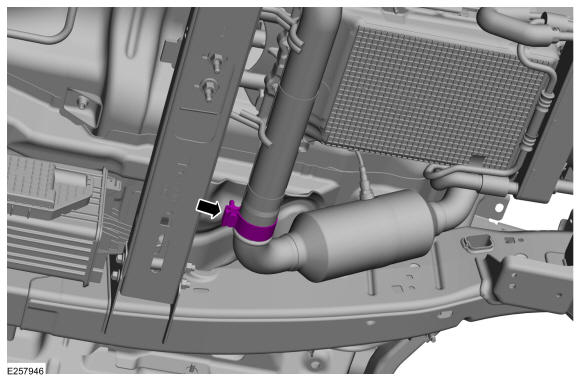

Tighten the clamp.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the electrical connectors and attach the wire clips.

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
