Exhaust System - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

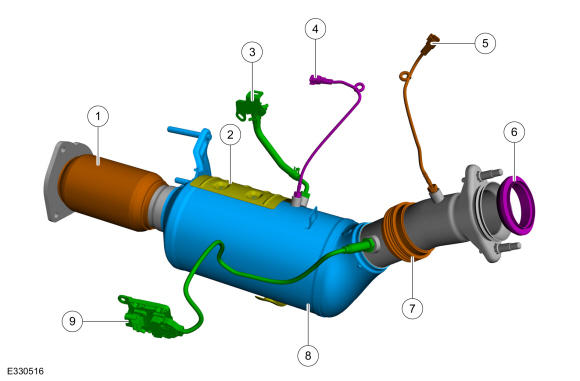

Combined DPF (diesel particulate filter) and catalyst assembly
| Item | Description |
|---|---|
| 1 | Exhaust Flexible pipe |
| 2 | Heat shield |
| 3 | Exhaust pressure sensor |
| 4 | Exhaust temperature sensor |
| 5 | Exhaust temperature sensor |
| 6 | Exhaust gasket |
| 7 | High frequency decoupling element |
| 8 | DPF |
| 9 | Engine NOx sensor and module |

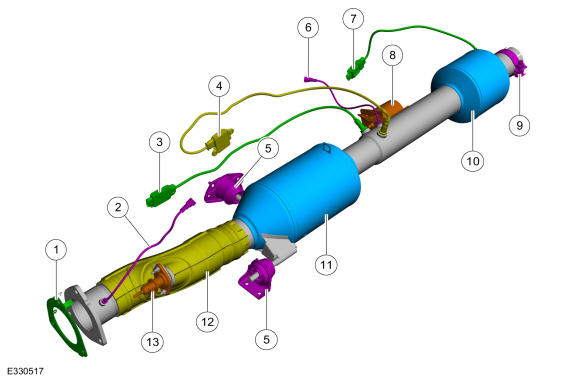

SCR (Selective catalytic reduction system) assembly
| Item | Description |
|---|---|
| 1 | Exhaust gasket |
| 2 | Exhaust temperature sensor |
| 3 | Engine NOx sensor and module |
| 4 | Engine Particulate Matter sensor and module |
| 5 | Isolators |
| 6 | Exhaust temperature sensor |
| 7 | Engine NOx sensor and module |
| 8 | Damper assembly |
| 9 | Exhaust clamp |
| 10 | Converter sub-assembly |
| 11 | SCR |
| 12 | Heat shield |
| 13 | Exhaust urea injector |

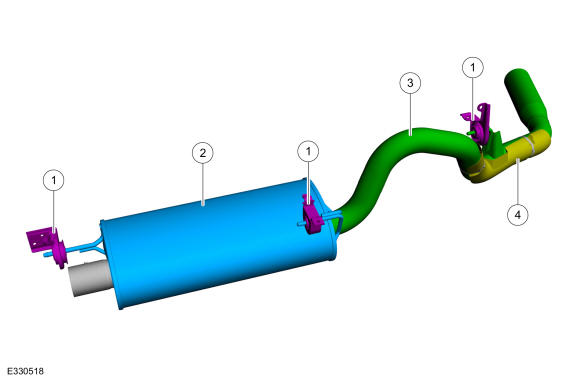

Muffler and tailpipe assembly
| Item | Description |
|---|---|
| 1 | Isolators |
| 2 | Muffler |
| 3 | Tailpipe |
| 4 | Heat shield |
