Catalytic Converter RH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the catalytic converter is not being replaced, the HO2S and the catalyst monitor sensor do not need to be removed from the catalytic converter. Disconnecting the electrical connectors is still necessary.

NOTE: The exhaust Y-pipe dual catalytic converter is a 2-piece assembly. The LH and RH converters can be serviced separately as needed.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the LH catalytic converter. Refer to: Catalytic Converter LH .
Remove the muffler inlet pipe. Refer to: Muffler Inlet Pipe .

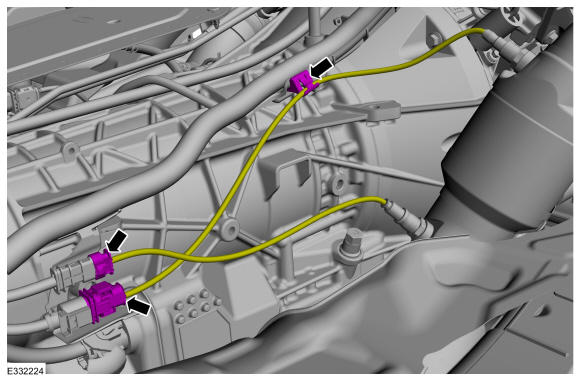

Disconnect the electrical connectors and detach the wire clips.

Courtesy of FORD MOTOR COMPANY

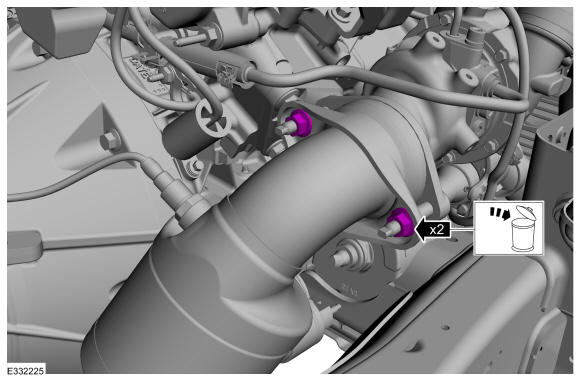

Remove the RH catalytic converter nuts and discard.

Courtesy of FORD MOTOR COMPANY
Remove the transmission support insulator. Refer to: Transmission Support Insulator .

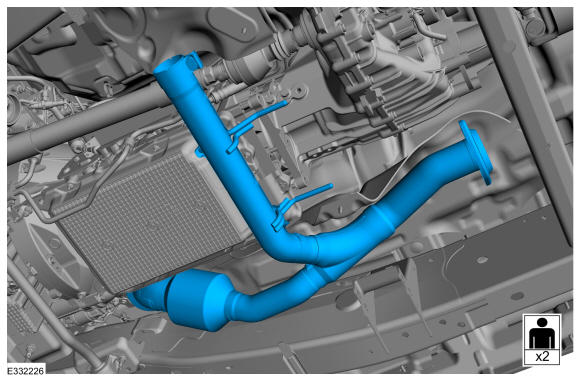

Remove the RH catalytic converter.

Courtesy of FORD MOTOR COMPANY

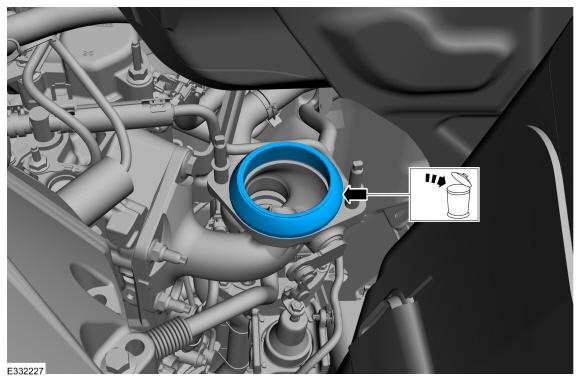

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only required if you are replacing with new components.

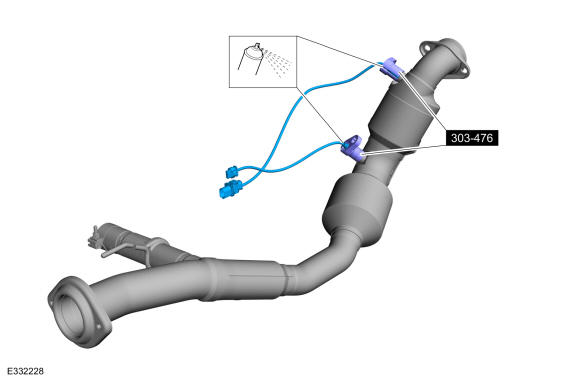

Apply penetrating oil to sensor. Using the special tool, remove the HO2S and the catalyst monitor sensors.

Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material

: Motorcraft® Penetrating and Lock Lubricant / XL-1

Courtesy of FORD MOTOR COMPANY
