Rear Door - Crew Cab: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Open the rear door.

Courtesy of FORD MOTOR COMPANY
Remove the check arm bolt.
Torque: 17 lb.ft (22.5 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the rear door electrical connector.

Courtesy of FORD MOTOR COMPANY

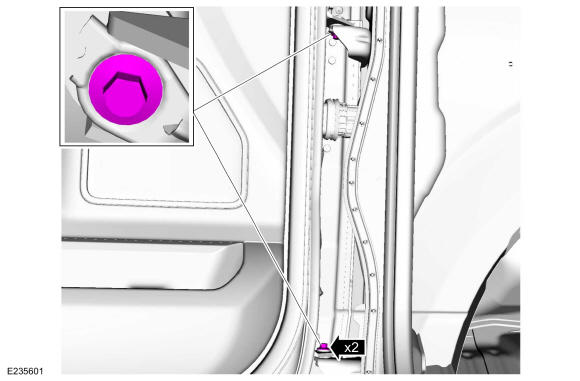

Remove the door hinge pivot bolts. Use the General Equipment: Door Lift
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

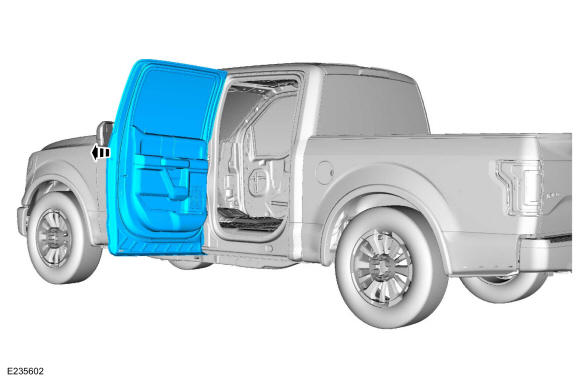

Remove the door. Use the General Equipment: Door Lift

Courtesy of FORD MOTOR COMPANY
