Fuel Filler Door: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

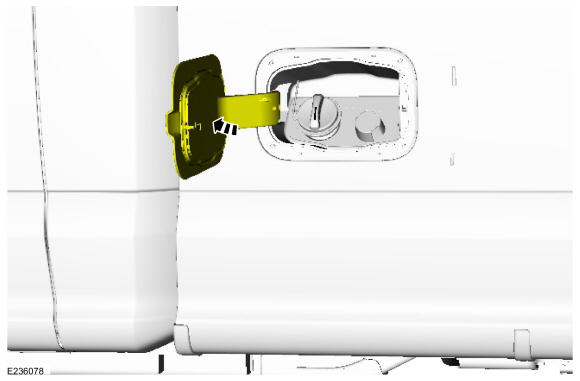

  1. Open the fuel filler door.
    GFD206226Courtesy of FORD MOTOR COMPANY

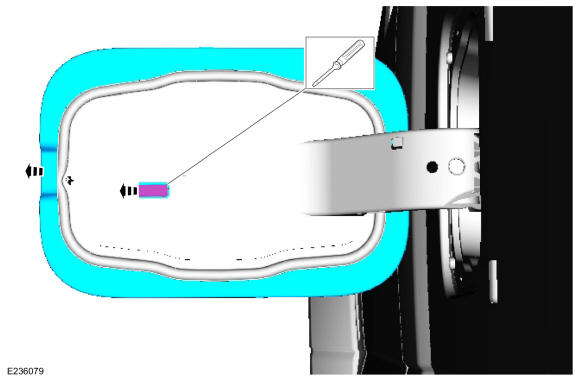

  2. Pry the retaining tab back and slide the fuel filler door from the fuel filler door hinge. Use the General Equipment: Flat Headed Screw Driver
GFD206227Courtesy of FORD MOTOR COMPANY
