Front Door Check Arm: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH shown, RH similar.
NOTE: Regular Cab shown, Crew Cab similar.
  1. Open the door.
    GFD206143Courtesy of FORD MOTOR COMPANY

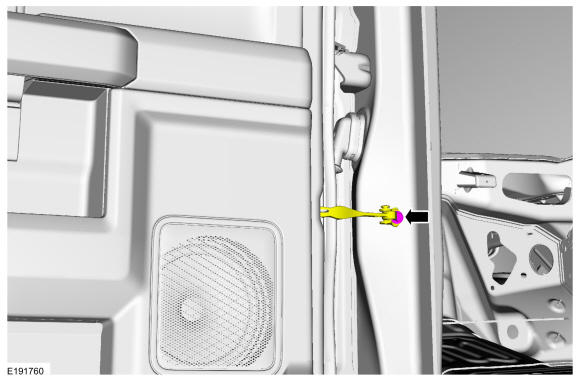

  2. Remove the check arm bolt.

    Torque: 17 lb.ft (22.5 Nm)

    GFD206218Courtesy of FORD MOTOR COMPANY
  3. Remove the front door trim panel. Refer to: Front Door Trim Panel .

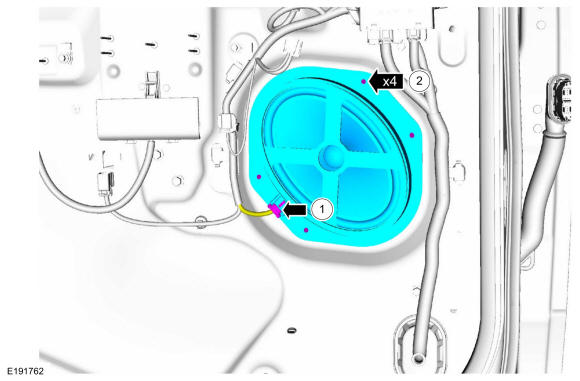

  4. Remove the speaker.

    1. Disconnect the electrical connector.
    2. Remove the bolts and the speaker.

    GFD206223Courtesy of FORD MOTOR COMPANY

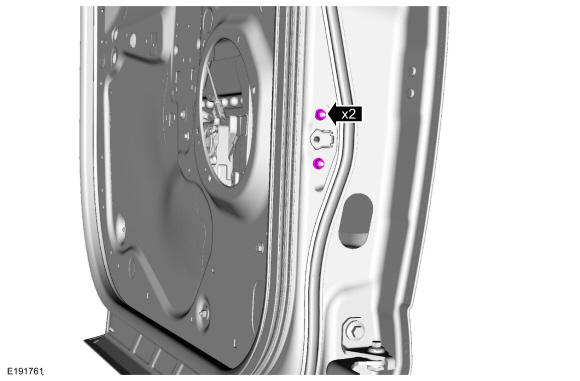

  5. Remove the nuts.

    Torque: 80 lb.in (9 Nm)

    GFD206224Courtesy of FORD MOTOR COMPANY

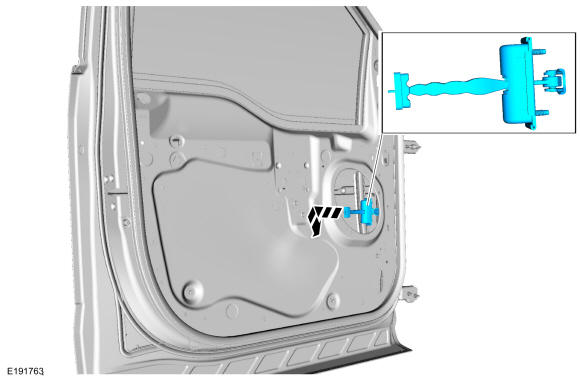

  6. Remove the check arm assembly.
GFD206225Courtesy of FORD MOTOR COMPANY
