Front Door Alignment - Crew Cab Regular Cab
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Inspection
NOTE:
LH shown, RH similar.
NOTE:
Regular Cab shown, Crew Cab similar.

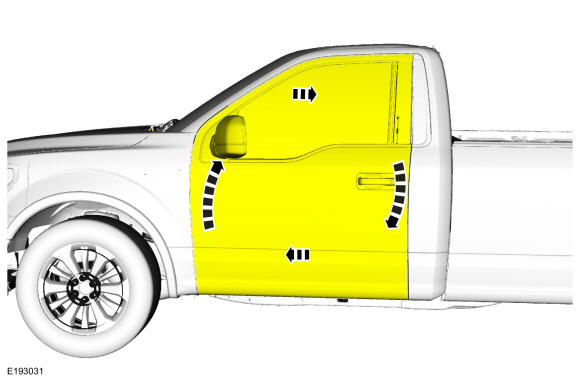

- Inspect the front door-to-body dimensions. Refer to: Body and Frame .
Adjustment
All alignments
- Open the door.

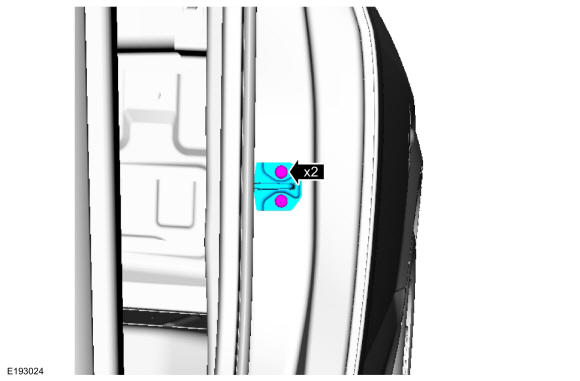

- Remove the bolts and the striker assembly.

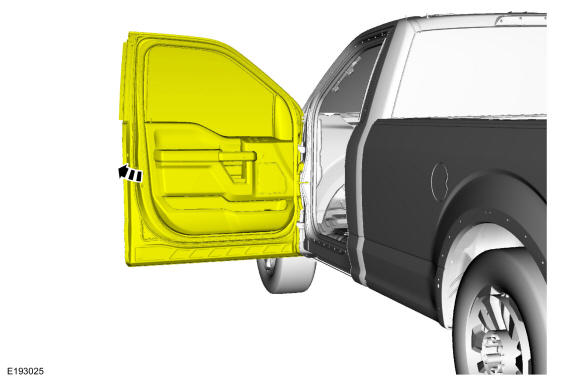

Front door in and out, up and down alignment
- Loosen the bolts enough to permit movement of the door.
- Adjust the door to specification. Refer to: Body and Frame
.
- Tighten the bolts.
Torque: 41 lb.ft (55 Nm)

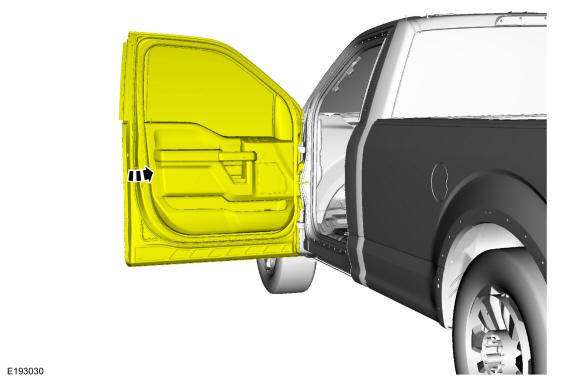

Front door fore, aft and tilt alignment
- Loosen the bolts enough to permit movement of the door.
- Carefully close the door.
- Adjust the door to specification. Refer to: Body and Frame
.
- Carefully open the door.
-
NOTE: Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in the chart below.
Tighten the bolts.
Torque:1: 20 lb.ft (27.5 Nm)
All alignments
- Install the striker assembly.
Torque: 18 lb.ft (25 Nm)
- Close the door.
- Inspect the body-to-front door dimensions. Refer to: Body and Frame .
