Fuel Supply Line: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components. Always install Fuel System Caps to any open orifices or tubes.

NOTE: Removal steps in this procedure may contain installation steps.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

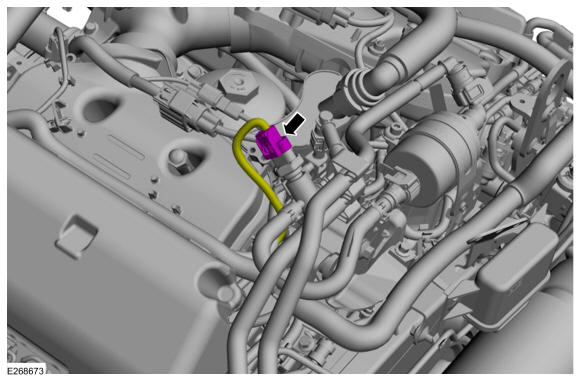

Disconnect the fuel pressure and temperature sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the retainer clip and position aside the fuel lines.

Courtesy of FORD MOTOR COMPANY

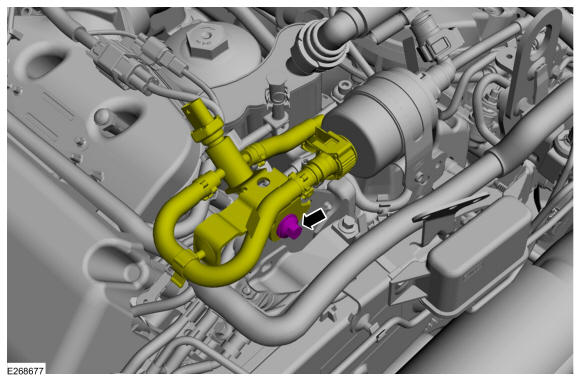

Remove the bracket bolt.
Torque

: 168 lb.in (19 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fulid.

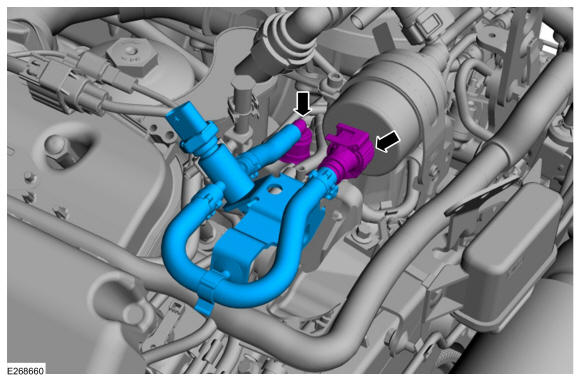

Disconnect the quick connectors. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY
