Fuel Lines: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
All vehicles
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery. Refer to: Battery Cables - 3.0L Power Stroke Diesel .
- Remove the engine appearance cover.
-
NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.

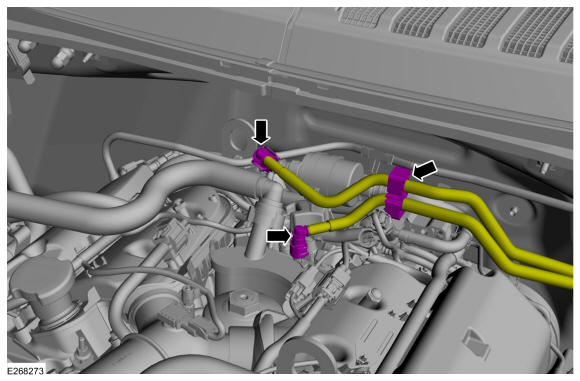

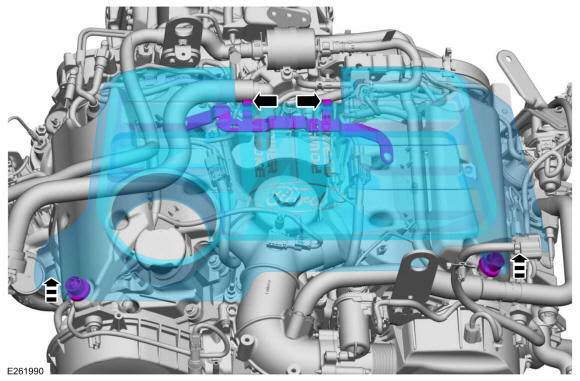

Detach the retainer and disconnect the quick release couplings. Refer to: Quick Release Coupling .

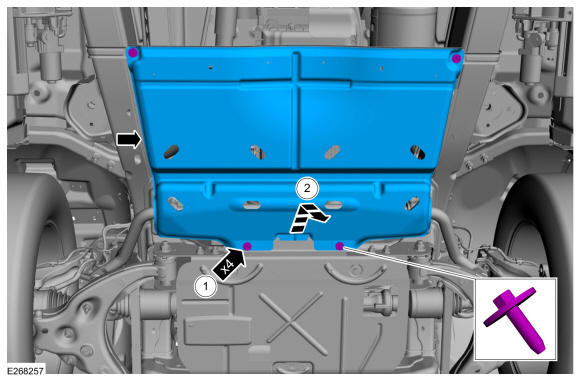

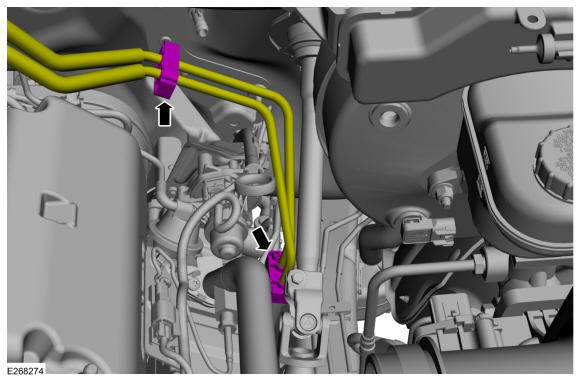

- Release the retainers.
- Remove the bolts and the transmission housing cover.
Torque
: 71 lb.in (8 Nm)

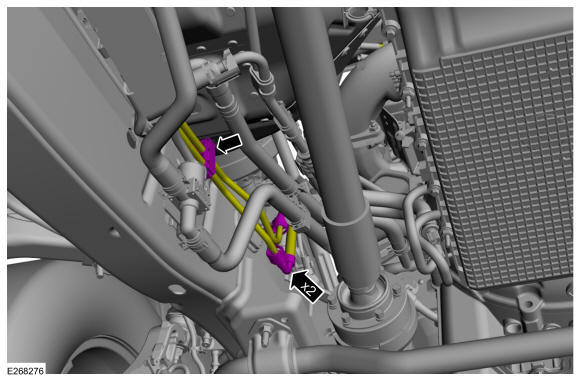

- Detach the retainer and disconnect the quick release couplings. Refer to: Quick Release Coupling
.

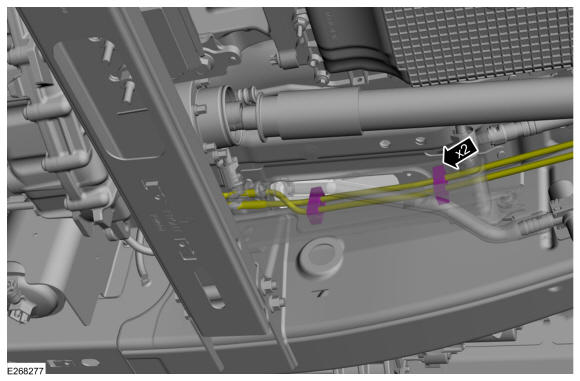

- Release the retainers.
- Disconnect the quick release couplings and remove the fuel lines. Refer to: Quick Release Coupling
.
All vehicles
-

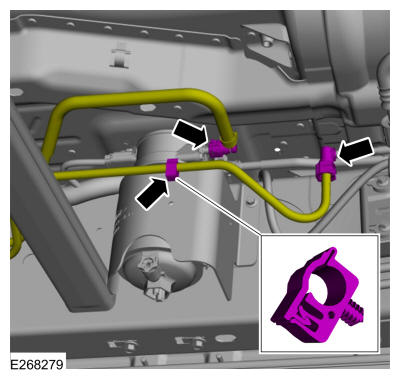

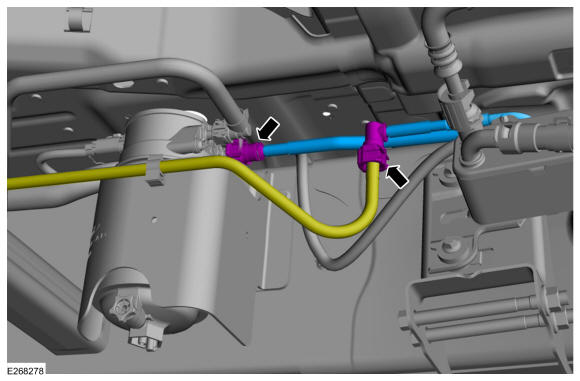

- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Detach the retainer.
-

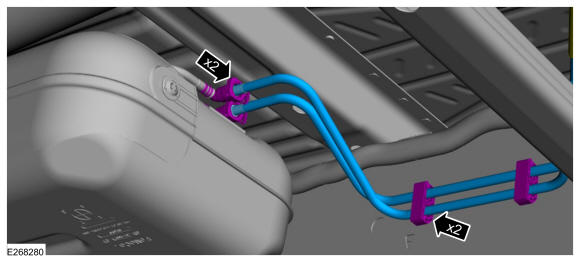

- If equipped with 157 Wheel Base. Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Detach the retainers and remove the fuel lines.
-

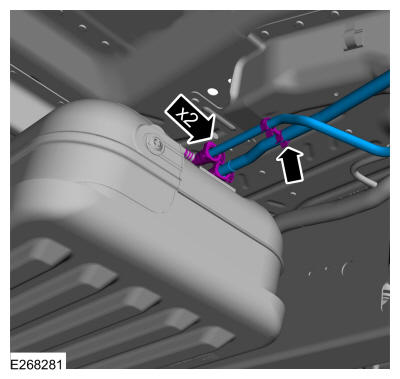

- If equipped with 145 Wheel Base. Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Detach the retainers and remove the fuel lines.
