Fuel Level Sender: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

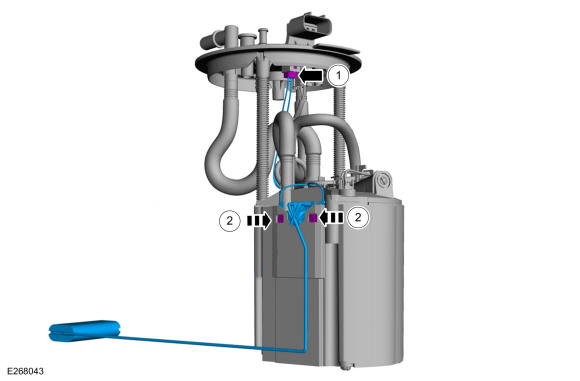

- Disconnect the electrical connector. Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .
-
- Release the retainer tab.
- Remove the Fuel Level Sender.
