Fuel Lines: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation steps.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable. Refer to: Battery Cables - 5.0L 32V Ti-VCT .
- NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.

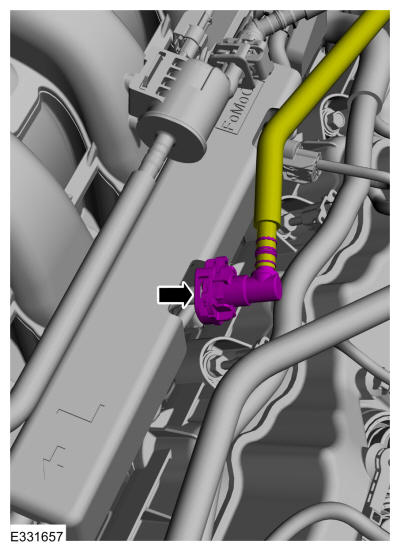

  Disconnect the fuel supply line quick release coupling. Refer to: Quick Release Coupling .
- Release the clip and position aside the fuel supply line.
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the splash shield.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

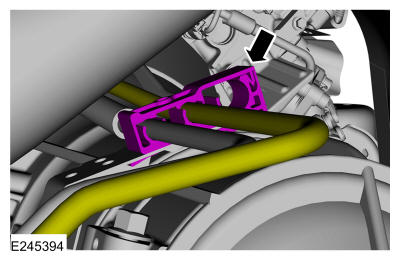

Separate the fuel supply line from the bracket on the upper transmission bell housing.

Courtesy of FORD MOTOR COMPANY

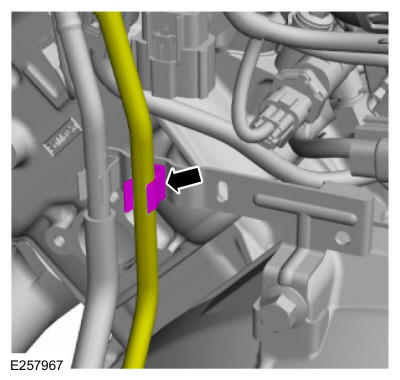

Release the retainer clip on the rear of the transmission and position aside the fuel supply line.

Courtesy of FORD MOTOR COMPANY
- Disconnect the fuel supply line quick connect coupling. Refer to: Quick Release Coupling .
- Release the retainer clips.
- Remove the fuel supply line from the underside of the vehicle.
