Fuel Tank: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation steps.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
If equipped, remove the nuts and the skid plate.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clamp and position the fuel tank filler pipe hose aside.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Standard fuel tank
Disconnect the fuel feed and vapor tube quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

Extended range fuel tank
Disconnect the fuel feed and vapor tube quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

All vehicles
Using a powertrain lift, support the fuel tank.
Use Special Service Tool: 300-OTC1585AE Powertrain Lift.
- Remove the bolts.
  Torque

  : 35 lb.ft (47 Nm)
- Partially lower the fuel tank.
Courtesy of FORD MOTOR COMPANY

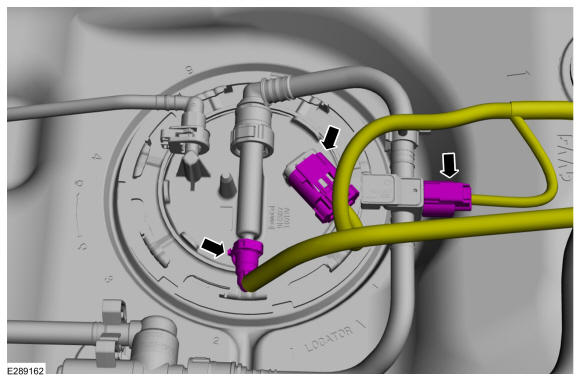

NOTE: Make sure the fuel tank is partially lowered before disconnecting the quick release coupling and electrical connectors.
- Disconnect the quick release coupling. Refer to: Quick Release Coupling .
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY
Remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
If the fuel tank is being replaced, remove the fuel pump and sender unit and drain the fuel tank using the fuel tanker. Refer to: Fuel Pump and Sender Unit .
Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
