Fuel Lines: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Removal steps in this procedure may contain installation steps.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Cables - 2.7L EcoBoost (238kW/324PS) .

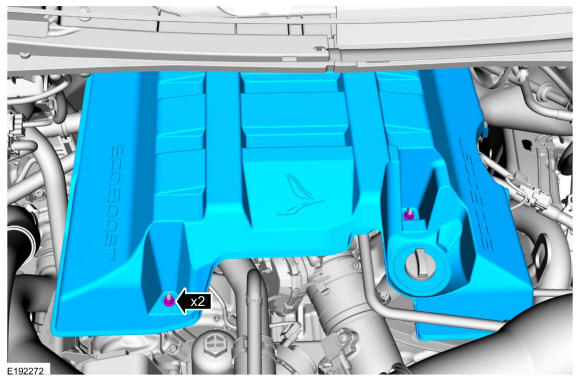

- If equipped. Remove nuts and the engine appearance cover.
Torque
: 53 lb.in (6 Nm)
-
NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.

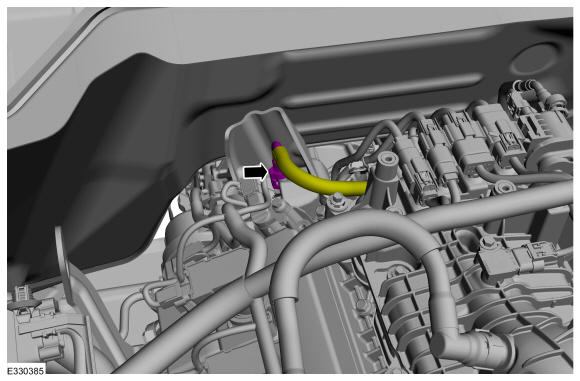

Disconnect the fuel supply line quick release coupling. Refer to: Quick Release Coupling .

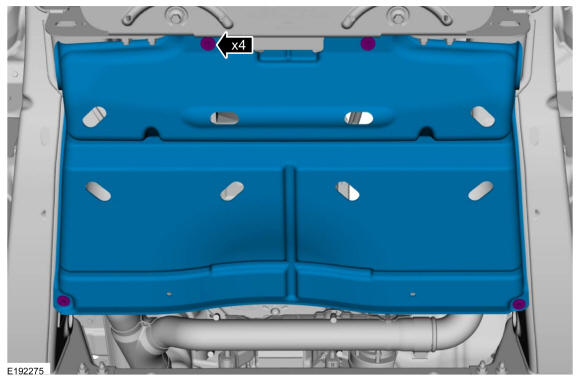

- Remove the bolts and the splash shield.
Torque
: 53 lb.in (6 Nm)

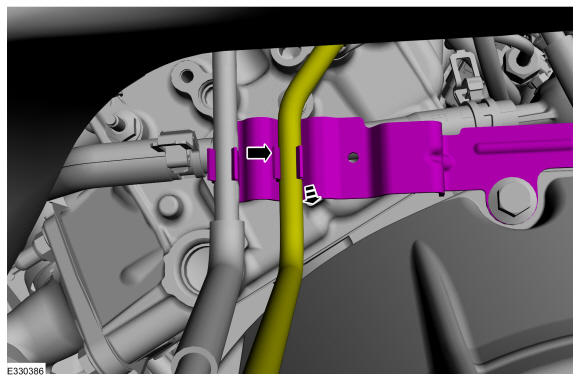

- Separate the fuel supply line from the bracket on the upper transmission bell housing.

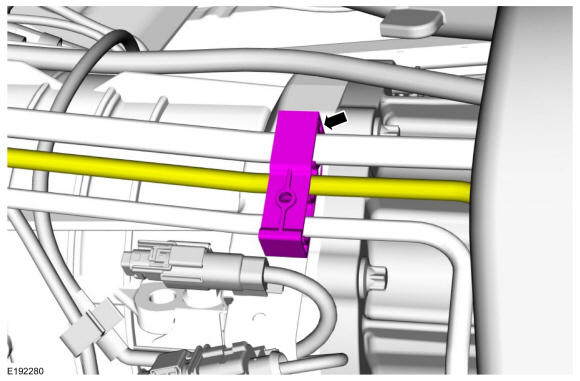

- Release the retainer clip on the rear of the transmission and position aside the fuel line.
-

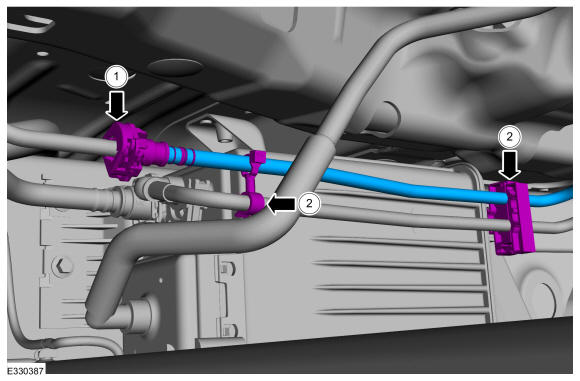

- Disconnect the fuel supply line quick connect coupling. Refer to: Quick Release Coupling .
- Detach the retainer clips and Remove the fuel line.
