Fuel Level Sender: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .

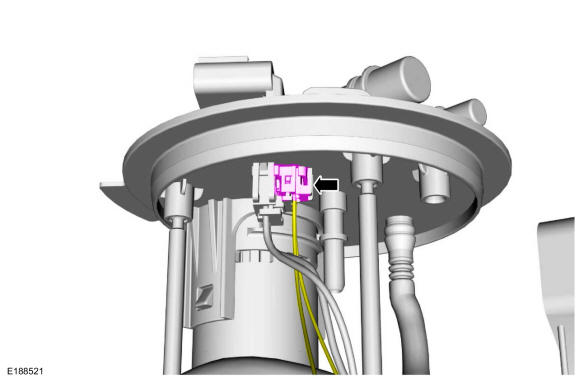

  2. Disconnect the electrical connector.
    GFD560188Courtesy of FORD MOTOR COMPANY

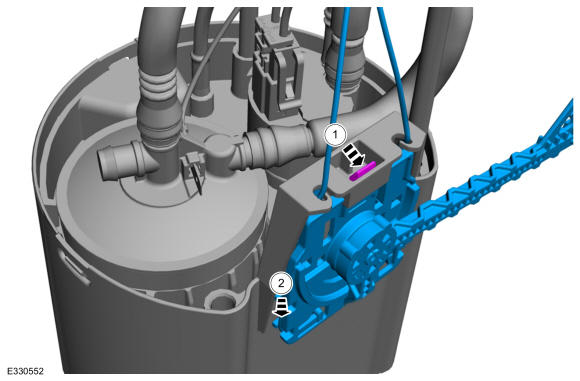

    1. Release the retainer tab.
    2. Remove the fuel level sender.
GFD560189Courtesy of FORD MOTOR COMPANY
