Rear Shock Absorber: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not apply heat or flame to the shock absorber or strut tube. The shock absorber and strut tube are gas pressurized and could explode if heated. Failure to follow this instruction may result in serious personal injury.

WARNING: Keep all body parts clear of shock absorbers or strut rods. Shock absorbers or struts can extend unassisted. Failure to follow this instruction may result in serious personal injury.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Support the rear axle assembly. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

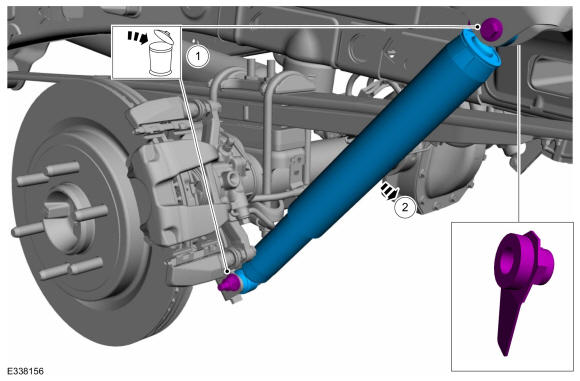

1. NOTE: A J-nut is used on the upper LH side only.

  Remove and discard the rear shock absorber upper and lower bolts and nuts.

  Torque

  : 66 lb.ft (90 Nm)
2. Remove the rear shock absorber.

Courtesy of FORD MOTOR COMPANY
