Wheel Studs: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the brake disc shield. Refer to: Brake Disc Shield .

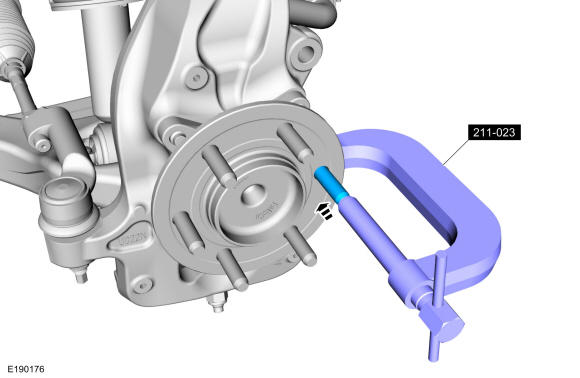

Press the wheel stud from the hub flange.
Use Special Service Tool: 211-023 (T74P-3044-A1) C-Frame and Screw.

Courtesy of FORD MOTOR COMPANY
