Wheel Studs: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Make sure to use washers that have an ID that is larger than the OD of the wheel stud serrations. Use enough washers (approximately 3 to 4) to allow the wheel stud to fully seat against the hub flange.

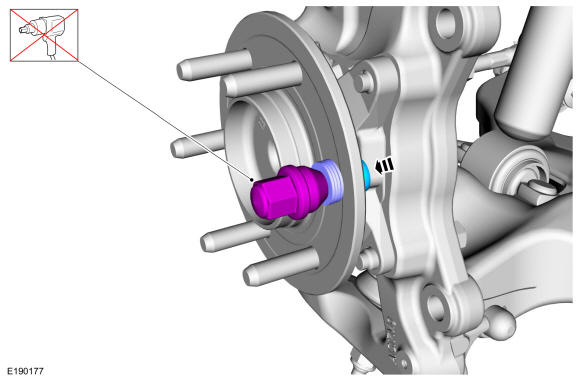

Install the wheel stud.
- Tighten the wheel nut until the wheel stud is seated against the hub flange.
- Discard the wheel nut.
- Install the brake disc shield. Refer to: Brake Disc Shield .
