Wheel Knuckle: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
  1. Remove the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .
  2. NOTE: Do not use power tools to remove the stabilizer bar link nut. Damage to the stabilizer bar link ball joint or boot may occur.
    NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
    NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.

    Remove and discard the front stabilizer bar link upper nut.

    GFD551506Courtesy of FORD MOTOR COMPANY
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  4. NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.
    NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

    Remove and discard the tie rod end nut and separate the tie rod end from the wheel knuckle.

    Use the General Equipment: Tie Rod End Remover

    GFD551502Courtesy of FORD MOTOR COMPANY
  5. Remove the brake hose bracket bolt and position the brake hose bracket aside.
    GFD551582Courtesy of FORD MOTOR COMPANY
  6. Remove the IWE bolts.
    GFD551583Courtesy of FORD MOTOR COMPANY

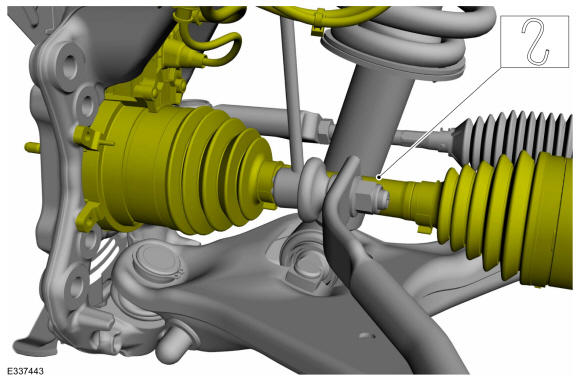

  7. Position the IWE and halfshaft.
    GFD551584Courtesy of FORD MOTOR COMPANY
  8. Remove and discard the upper ball joint nut.
    GFD551504Courtesy of FORD MOTOR COMPANY
  9. NOTE: Be sure not to damage the ball joint boot when installing the Ball Joint Separator.

    Separate the upper ball joint from the wheel knuckle.

    Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

    GFD551505Courtesy of FORD MOTOR COMPANY

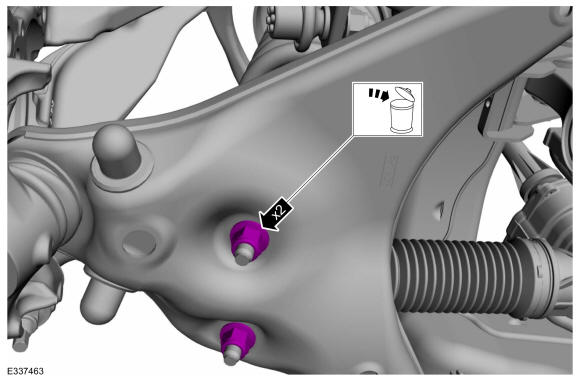

  10. Remove and discard the shock absorber and spring assembly lower nuts.
    GFD551585Courtesy of FORD MOTOR COMPANY

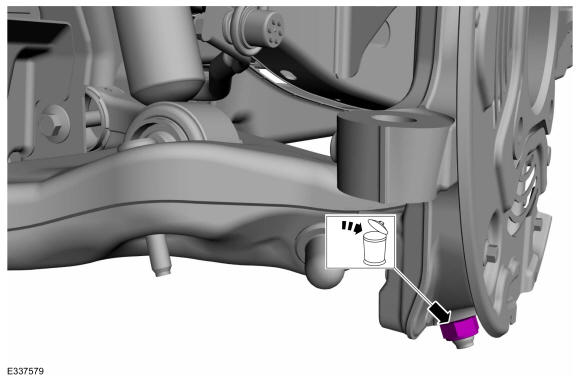

  11. Remove and discard the lower ball joint nut.
    GFD551522Courtesy of FORD MOTOR COMPANY
  12. If necessary. Remove the 3 brake disc shield bolts and the brake disc shield.
    GFD551523Courtesy of FORD MOTOR COMPANY
  13. NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

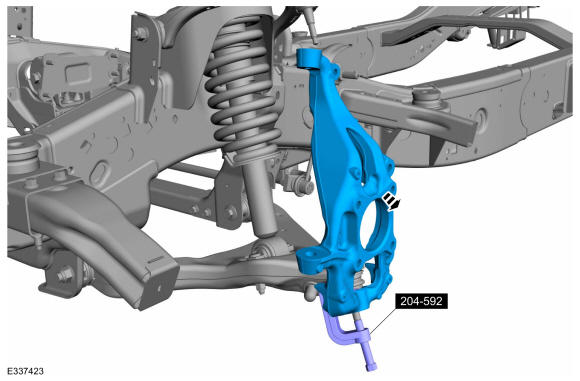

    Separate the wheel knuckle from the lower ball joint and remove the wheel knuckle.

    Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

GFD551524Courtesy of FORD MOTOR COMPANY
