Shock Absorber and Spring Assembly: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the wheel knuckle. Refer to: Wheel Knuckle .

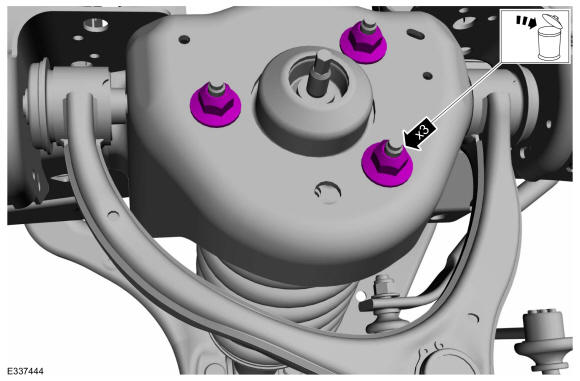

Remove and discard the 3 shock absorber and spring assembly upper nuts.

Courtesy of FORD MOTOR COMPANY

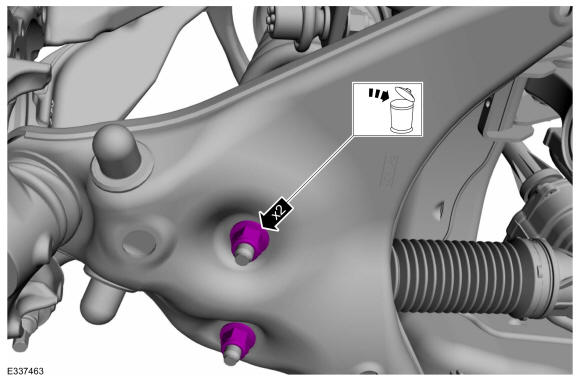

Remove and discard the shock absorber and spring assembly lower nuts.

Courtesy of FORD MOTOR COMPANY

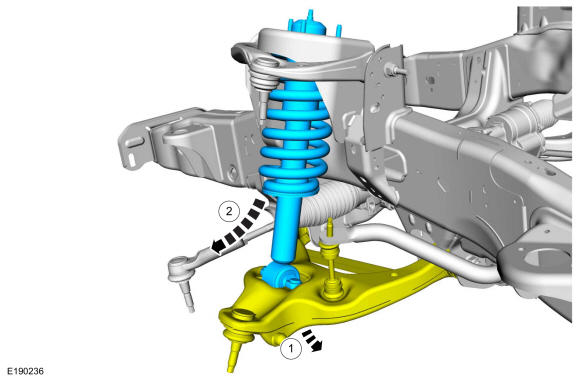

1. Position the lower arm down to gain clearance for removing the shock absorber and spring assembly.
2. Remove the shock absorber and spring assembly.

Courtesy of FORD MOTOR COMPANY
