Shock Absorber and Spring Assembly: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

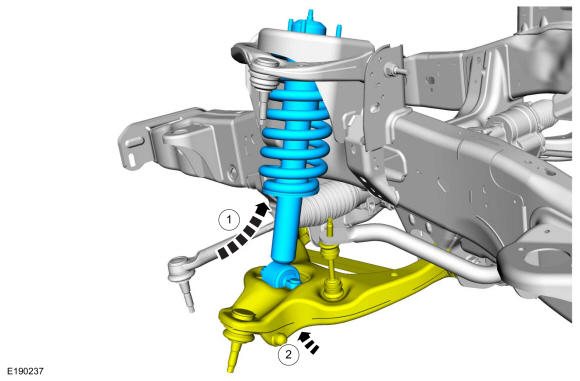

1. Install the shock absorber and spring assembly.
2. Position the lower arm up.
Courtesy of FORD MOTOR COMPANY

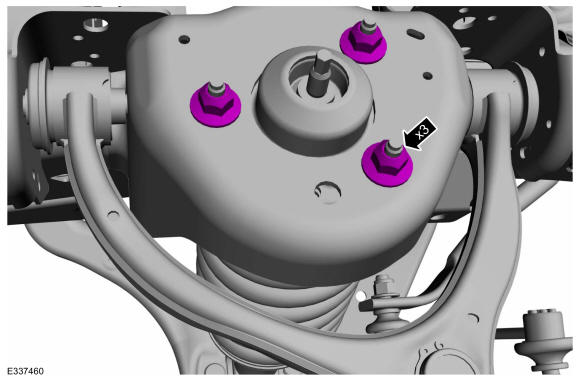

Install the 3 new shock absorber and spring assembly upper nuts.
Torque

: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

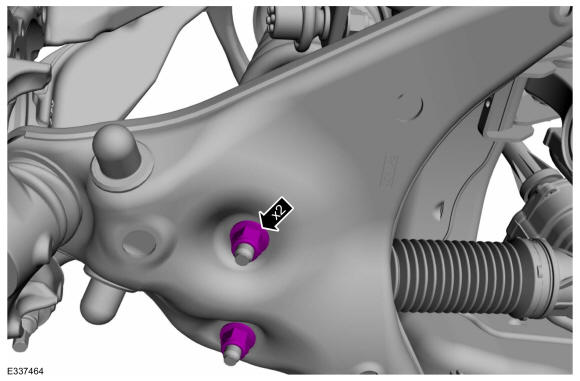

Install the 2 new shock absorber and spring assembly lower nuts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel knuckle. to: Wheel Knuckle .
