Lower Ball Joint: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

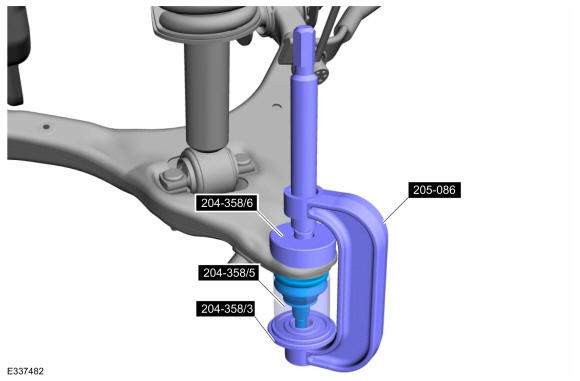

- Install the ball joint into the lower arm.
Use Special Service Tool: 204-358 Remover/Installer, Ball Joint., 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.
-
NOTE: Make sure the ball joint snap ring is fully seated.
Install the new lower ball joint snap ring.
- Install the wheel knuckle. Refer to: Wheel Knuckle .
