Lower Arm: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

NOTE: Only tighten the nuts and bolts finger tight at this stage.

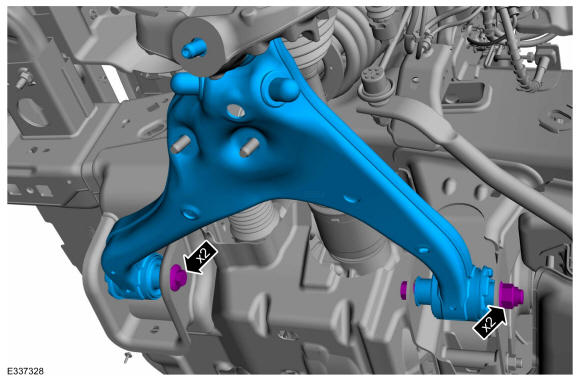

Position the lower arm and install the new lower arm bolts and nuts.

Courtesy of FORD MOTOR COMPANY

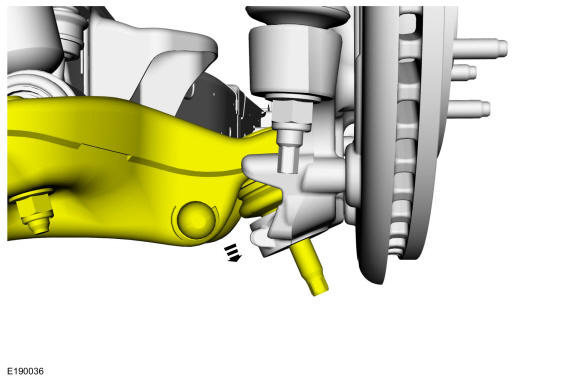

Attach the lower ball joint to the wheel knuckle.

Courtesy of FORD MOTOR COMPANY

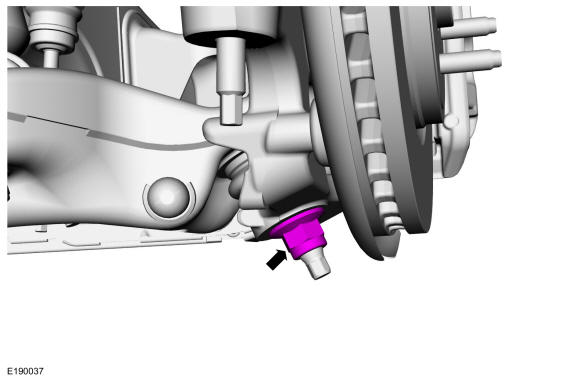

Install the new lower ball joint nut.
Torque

: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY

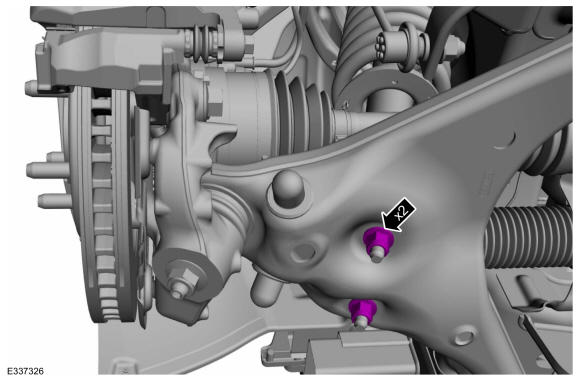

Install the new shock absorber and spring assembly lower nuts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

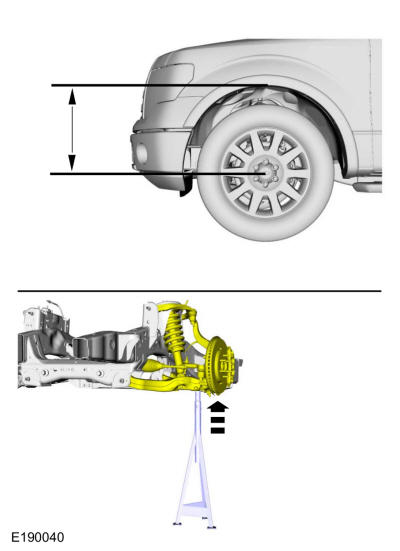

Use a suitable jack to raise the suspension until the distance between the center of the hub and the lip of the fender is equal to the measurement taken during removal (curb height).

Courtesy of FORD MOTOR COMPANY

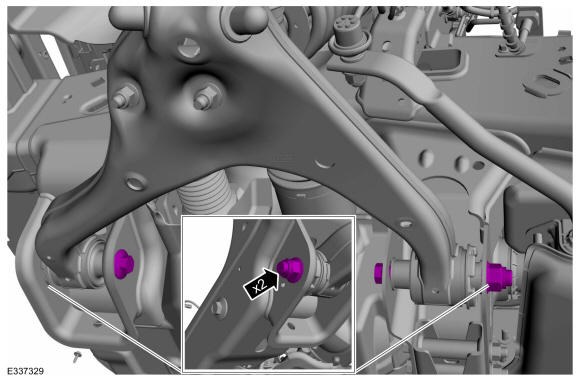

Tighten the new lower arm bolts nuts.
Torque

: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Check and if necessary adjust front camber. Refer to: Front Camber and Caster Adjustment .
