Front Wheel Bearing and Wheel Hub: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
-
NOTE: The wheel speed sensor electrical connector is located in the engine compartment secured to the fender apron.
Disconnect the wheel speed sensor electrical connector and detach the harness retainer.
- Remove the brake disc. Refer to: Brake Disc .
- Detach the wheel speed sensor harness retainers and routing clips.
- Remove the wheel hub nut dust cap.
-
NOTE: When installing the halfshafts measure the depth of the CV shaft threaded end to the inner bearing race. The minimum depth is 15.5 mm (0.61 in). If the depth is less than 15.5 mm (0.61 in) rotate the CV shaft to clear a binding condition between the IWE and CV splines. Installing the axle nut and tightening without the proper depth of protrusion will result in damage to the IWE.

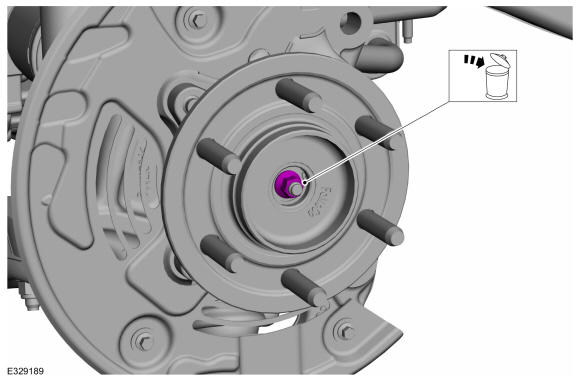

Remove and discard the wheel hub nut.

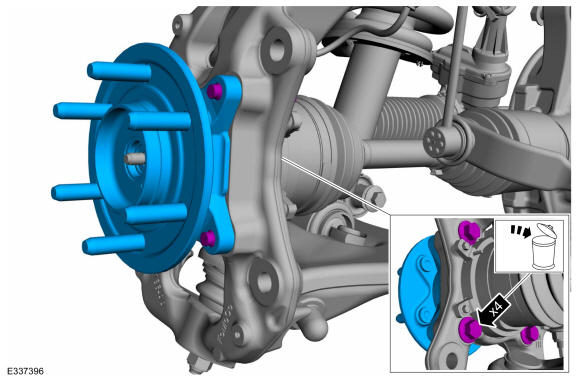

- Remove and discard the 4 front wheel bearing and wheel hub bolts and remove the front wheel bearing and wheel hub.
