Shock Absorber and Spring Assembly: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

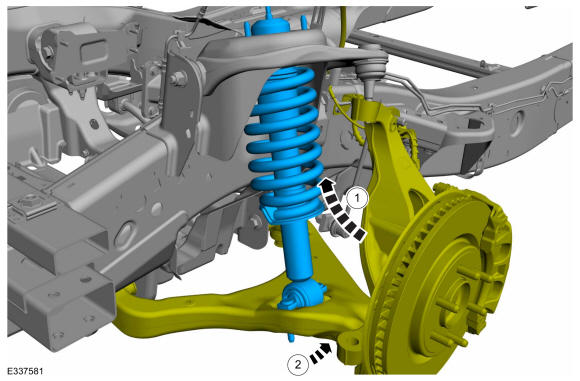

1. Install the shock absorber and spring assembly.
2. Position the lower arm and wheel knuckle up.
Courtesy of FORD MOTOR COMPANY
Install the new shock absorber and spring assembly upper nuts.
Torque

: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new upper ball joint nut.
Torque

: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the 2 new shock absorber and spring assembly lower nuts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use power tools to remove the stabilizer bar link nut. Damage to the stabilizer bar link ball joint or boot may occur.

NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.

Position the front stabilizer bar link and install the new front stabilizer bar link upper nut.

Torque

: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
Position the brake hose bracket and install the brake hose bracket bolt and wheel speed harness retainer.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
1. Connect the tie rod end to the wheel knuckle.
2. NOTE: Use the hex-holding feature to prevent the stud from turning while installing the nut.

  Install the new tie rod end nut.

  Torque

  : 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Install the wheel and tire. Refer to: Wheel and Tire .
