Front Wheel Bearing and Wheel Hub: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
-

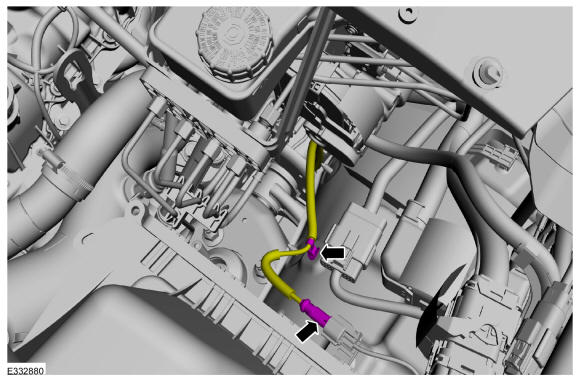

NOTE: The wheel speed sensor electrical connector is located in the engine compartment secured to the fender apron.
Disconnect the wheel speed sensor electrical connector and detach the harness retainer.
- Remove the brake disc. Refer to: Brake Disc .

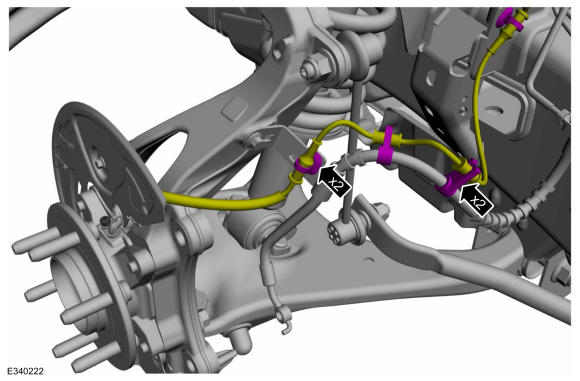

- Unclip the wheel speed sensor wire retainers and position aside the wheel speed sensor wire.

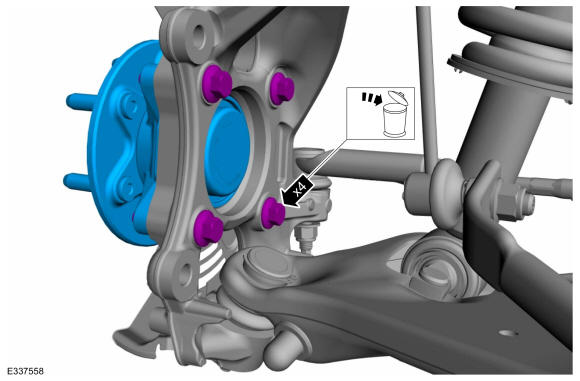

- Remove and discard the 4 front wheel bearing and wheel hub bolts. Remove the front wheel bearing and wheel hub and ABS sensor assembly.
