Front Wheel Bearing and Wheel Hub: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-

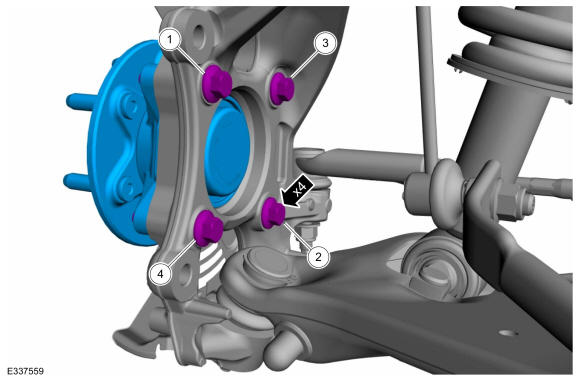

NOTE: A new wheel bearing is supplied with a new ABS wheel speed sensor.NOTE: Tighten the bolts in a cross pattern.
Install the front wheel bearing and wheel hub and ABS sensor assembly and install the 4 new front wheel bearing and wheel hub bolts.
Torque
: 129 lb.ft (175 Nm)
- Attach the wheel speed sensor harness retainers and routing clips.
- Install the brake disc. Refer to: Brake Disc .
-
NOTE: The wheel speed sensor electrical connector is located in the engine compartment secured to the fender apron.
Connect the wheel speed sensor electrical connector and attach the harness retainer.
