Wheel Hub: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The wheel hub bearings must be prelubricated with grease prior to installation. Pack each bearing with a bearing packing tool.

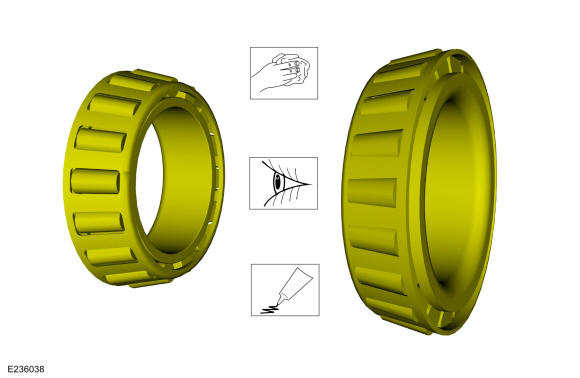

Clean, inspect and pack the inner and outer bearings with grease.

Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY
Install the new inner wheel hub seal. REFER to: Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups .

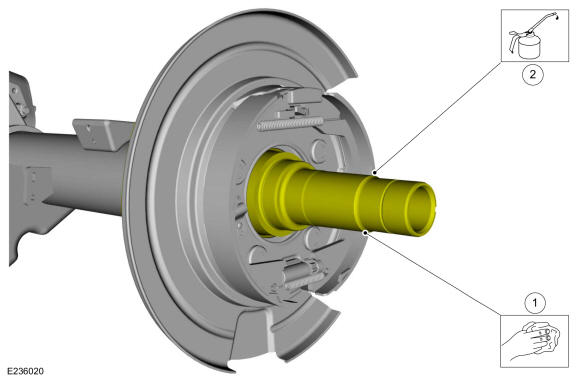

1. Clean the hub spindle.
2. Coat the hub spindle with clean axle lubricant.
  Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
Courtesy of FORD MOTOR COMPANY
1. Clean the hub.
2. Coat the hub with clean axle lubricant.
  Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
Courtesy of FORD MOTOR COMPANY

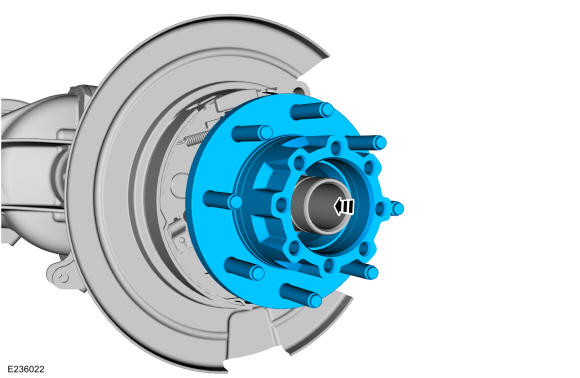

Install the wheel hub.

Courtesy of FORD MOTOR COMPANY
NOTE: The wheel hub bearings must be prelubricated with grease prior to installation. Pack each bearing with a bearing packing tool. Also apply grease to the thrust surface of the bearing.

Install the outer wheel hub bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: LH shown in illustration RH similar.

NOTE: Always apply inward pressure when tightening or loosening the hub nut.

NOTE: The wheel hub nuts are RH thread (right hub), and LH thread (left hub).

NOTE: Rotate the wheel hub occasionally while tightening the hub nut.

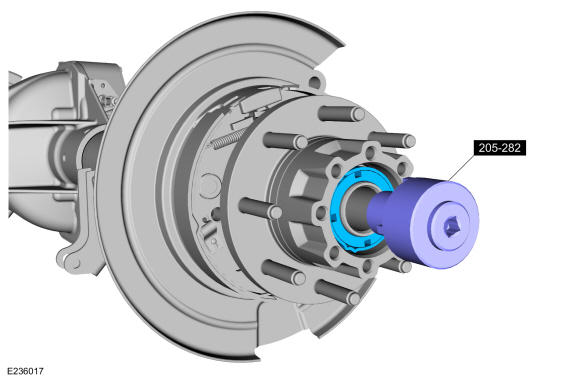

Using the special tool, install the hub nut.

Use Special Service Tool: 205-282 (T88T-4252-A) Socket, Wheel Hub Nut.

Torque:

Stage 1: 70 lb.ft (95 Nm)

Stage 2: Loosen: 180°

Stage 3: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

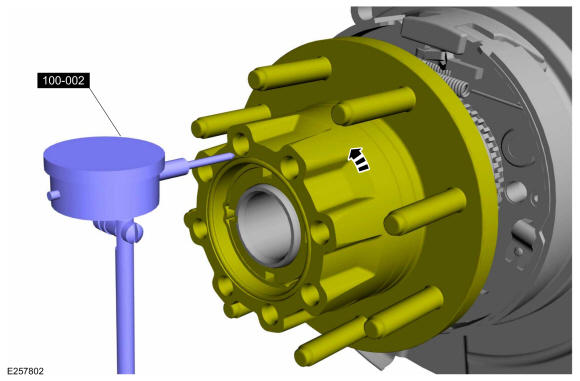

- Zero the Dial Indicator Gauge with the Holding Fixture.
- Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
- Place the dial indicator tip on the outboard surface of the wheel hub and verify there is no side-to-side end play.
Courtesy of FORD MOTOR COMPANY
Install the brake disc. REFER to: Brake Disc .
Install the axle shaft. REFER to: Axle Shaft .
Check the differential fluid level. REFER to: Differential Fluid Level Check - Vehicles With: Ford 10.5 Inch Ring Gear.
