Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel hub. REFER to: Wheel Hub .

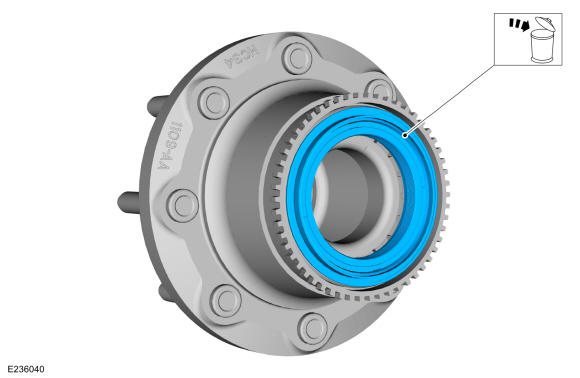

- Remove and discard the wheel hub inner seal.
- Remove the inner wheel hub bearing.

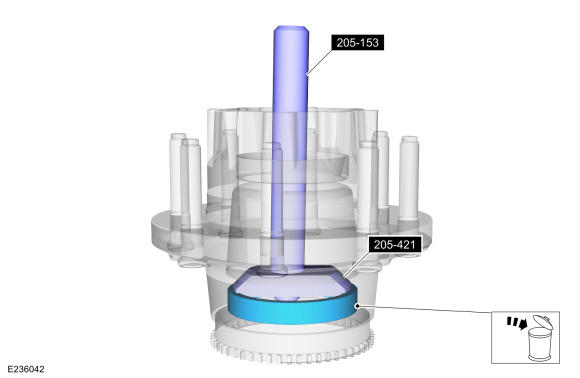

- Using the specials tools, remove and discard the inner wheel bearing cup.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-421 Remover, Wheel Hub Inner Bearing Cup (10 1/2).

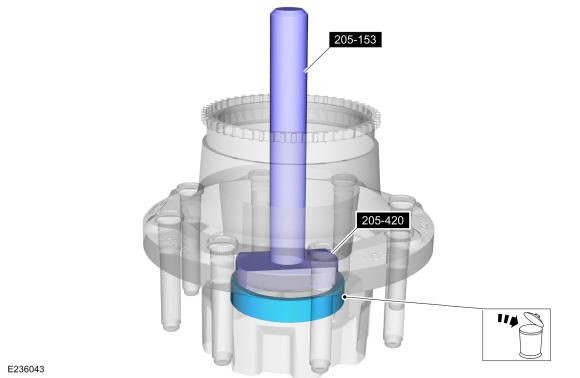

- Using the specials tools, remove and discard the outer wheel bearing cup.
Use Special Service Tool: 205-420 Remover, Wheel Hub Outer Bearing Cup (10 1/2), 205-153 (T80T-4000-W) Handle.
