Jacking Points - Rear
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not use the differential housing as a lift point. Leaks or damage to the rear axle cover and adjoining differential housing surface may occur if a floor jack or any lifting device is allowed to contact the cover at any point where the cover joins the housing.
NOTE:

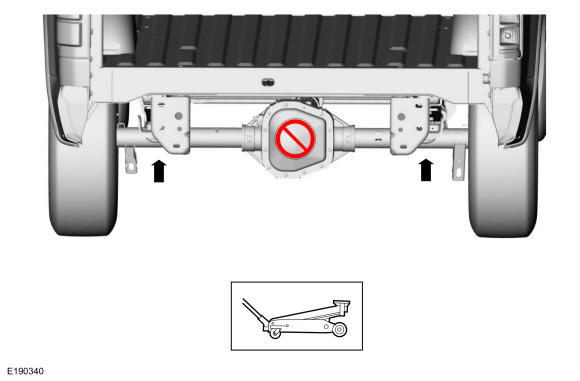

Rear bumper removed for clarity.
Only the specified jacking points may be used for jacking and supporting the vehicle.
The rear jacking points are located on the rear axle.
