Transmission Controls - 10R80

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

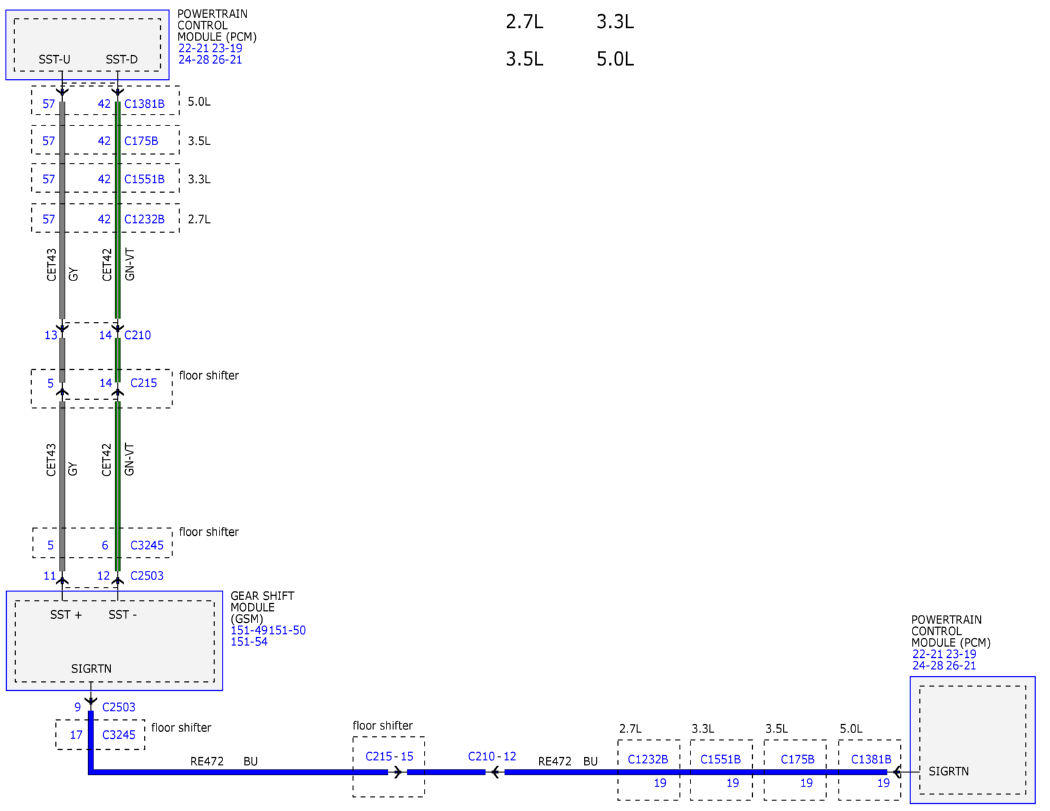

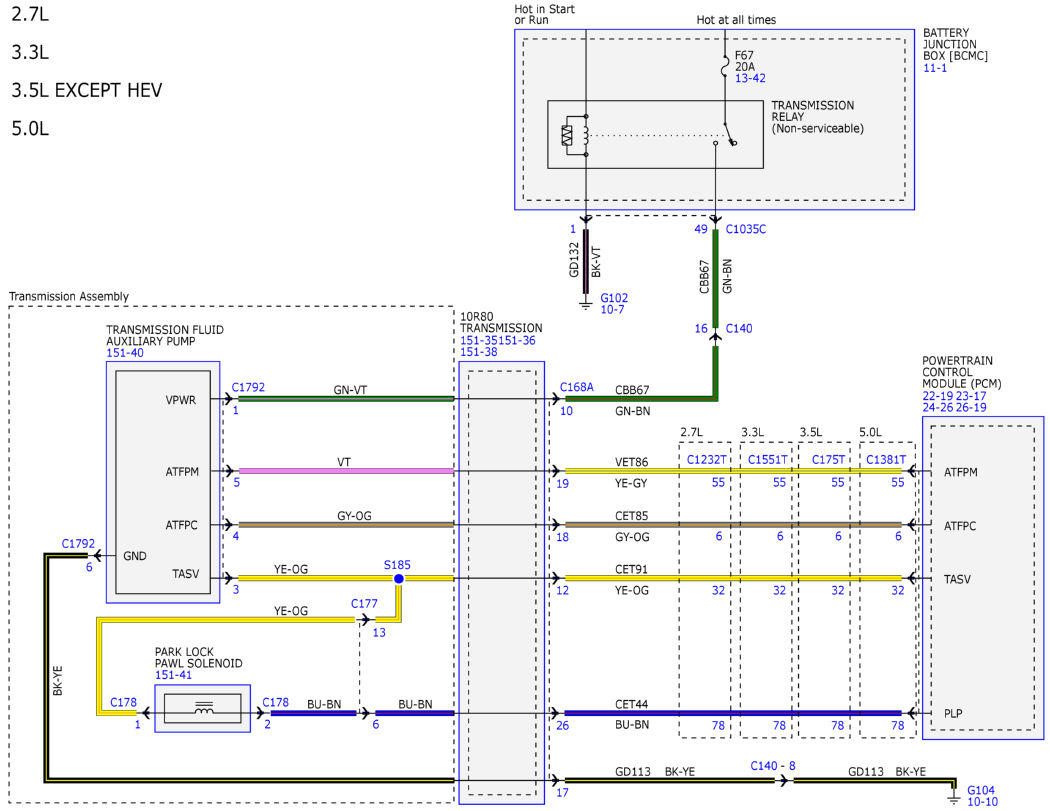

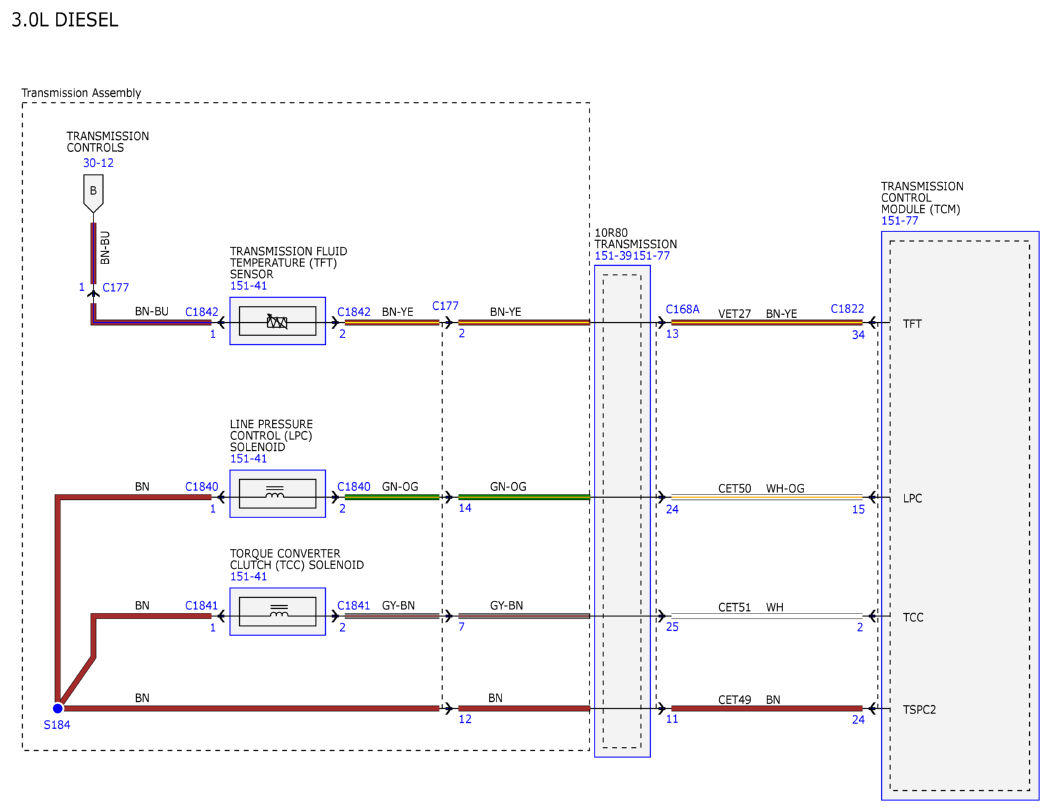

Fig 1: Transmission Controls Wiring Diagram - 10R80 (1 Of 19)

Courtesy of FORD MOTOR COMPANY

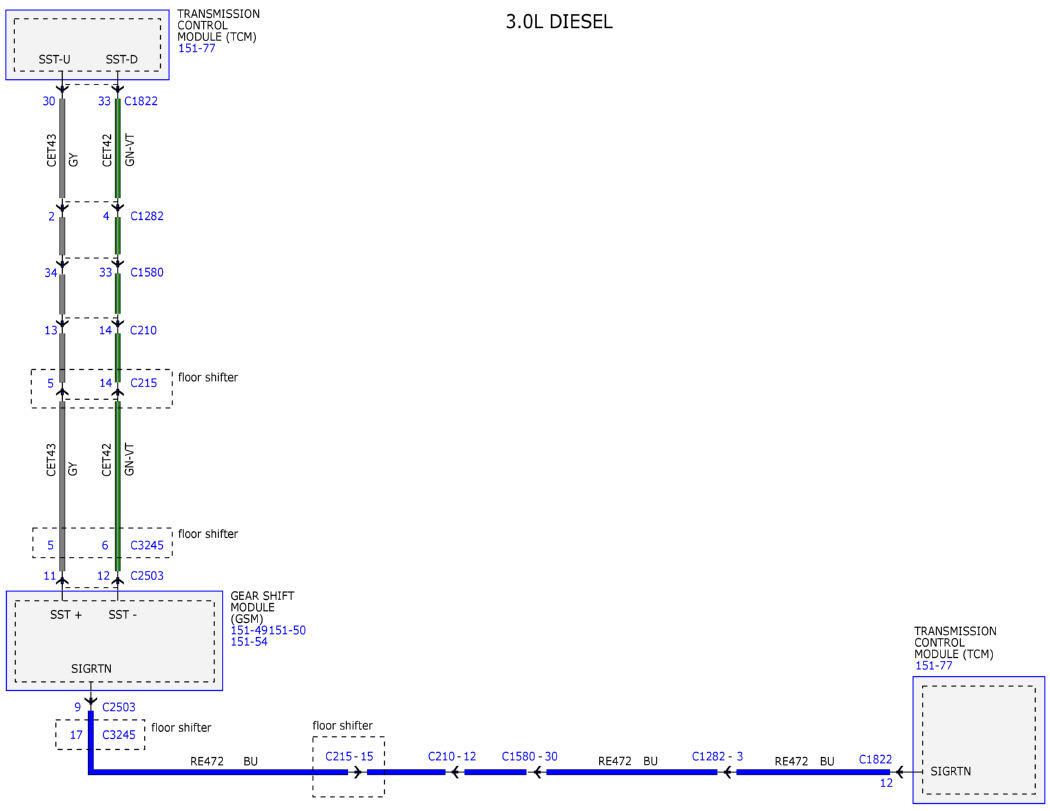

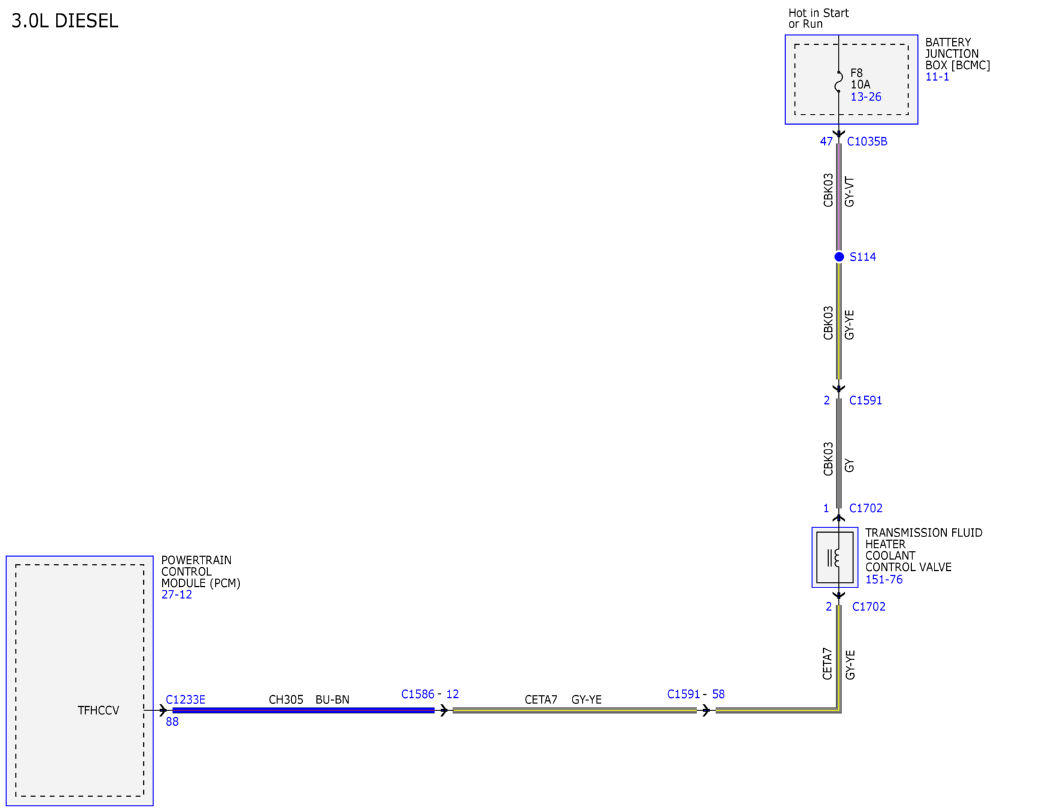

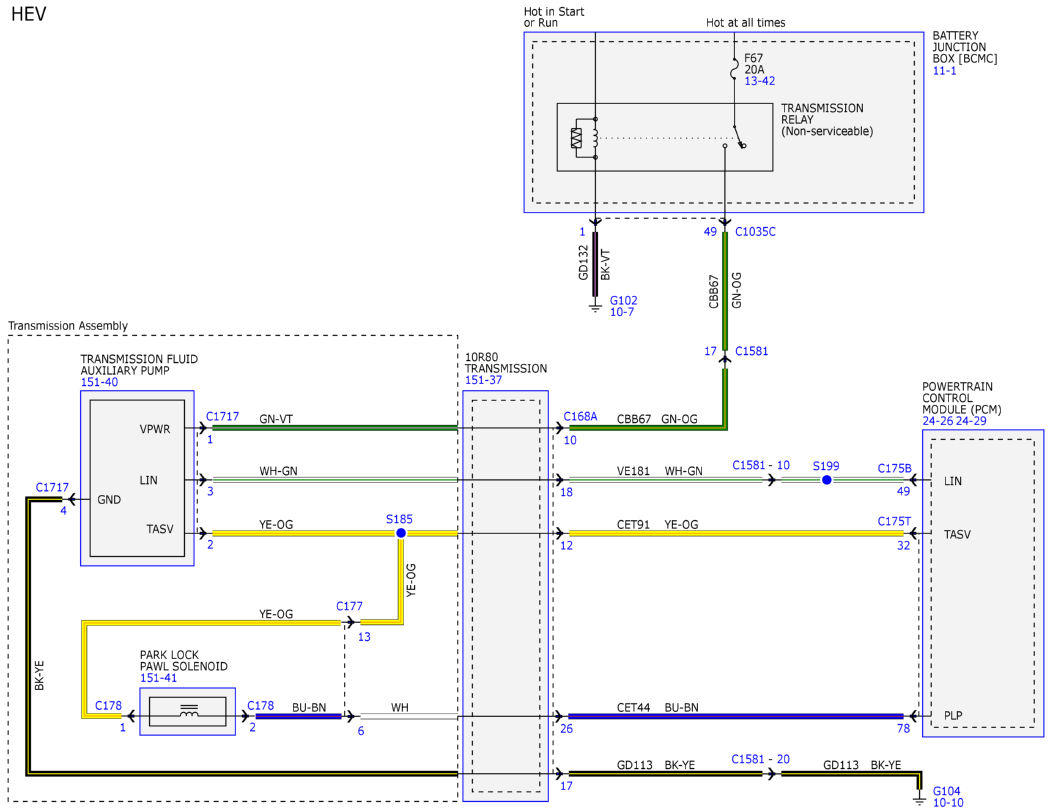

Fig 2: Transmission Controls Wiring Diagram - 10R80 (2 Of 19)

Courtesy of FORD MOTOR COMPANY

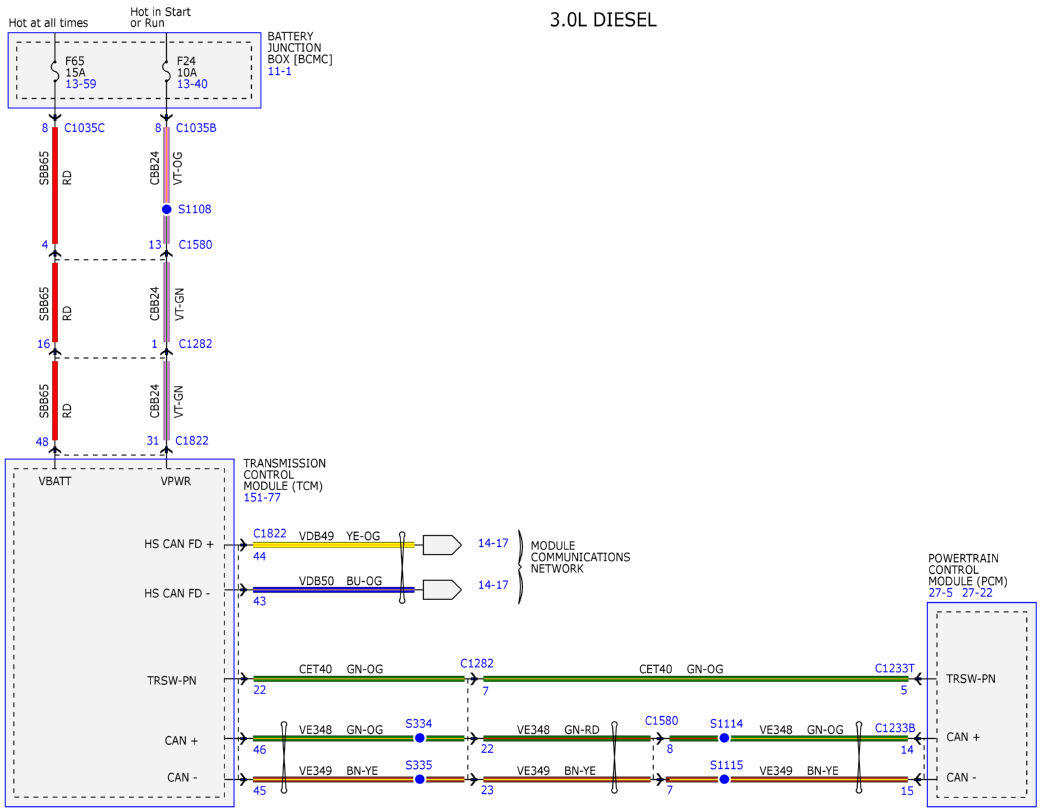

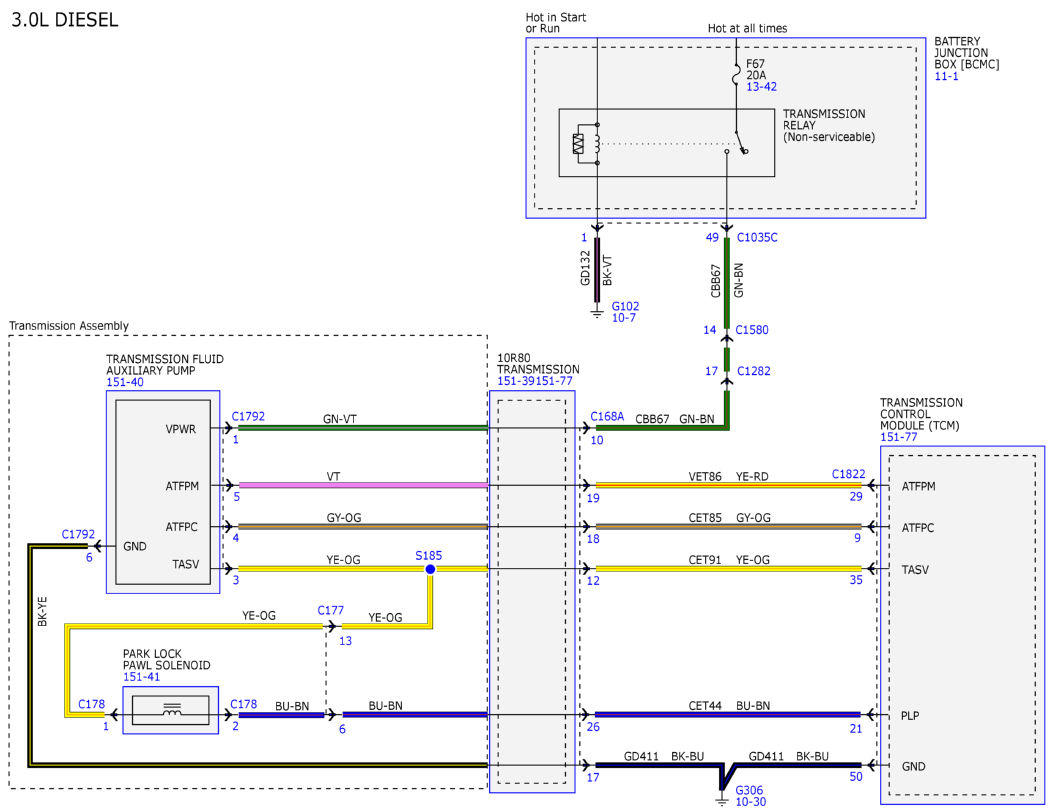

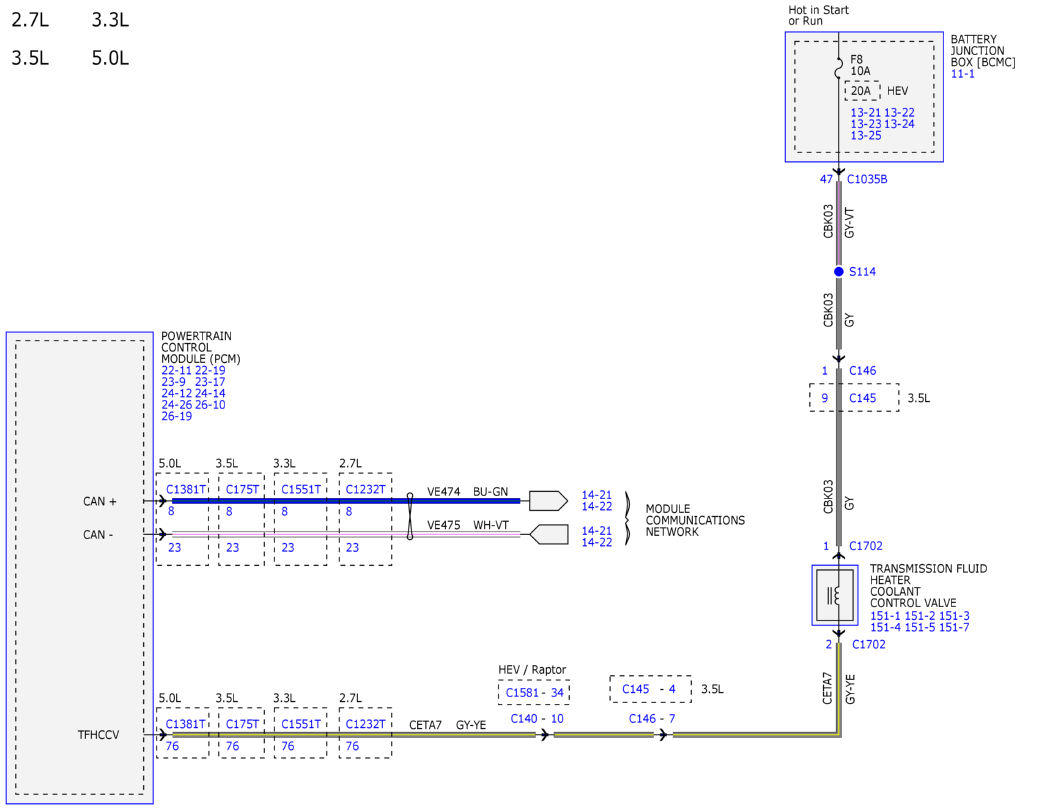

Fig 3: Transmission Controls Wiring Diagram - 10R80 (3 Of 19)

Courtesy of FORD MOTOR COMPANY

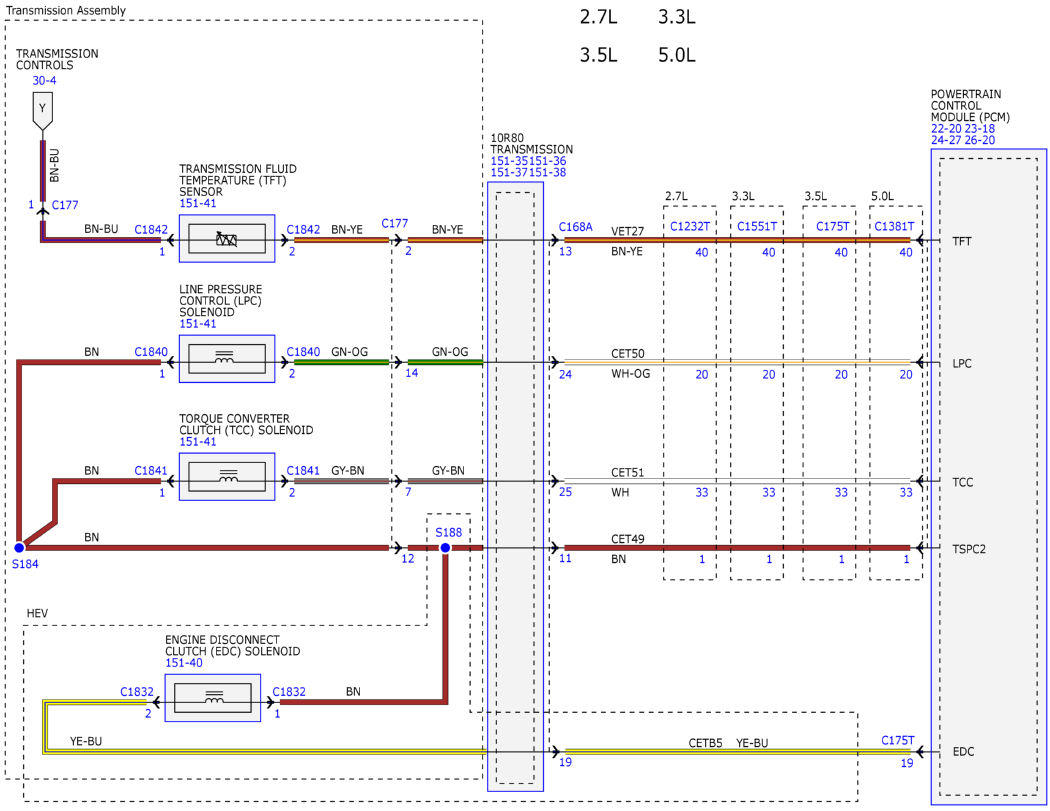

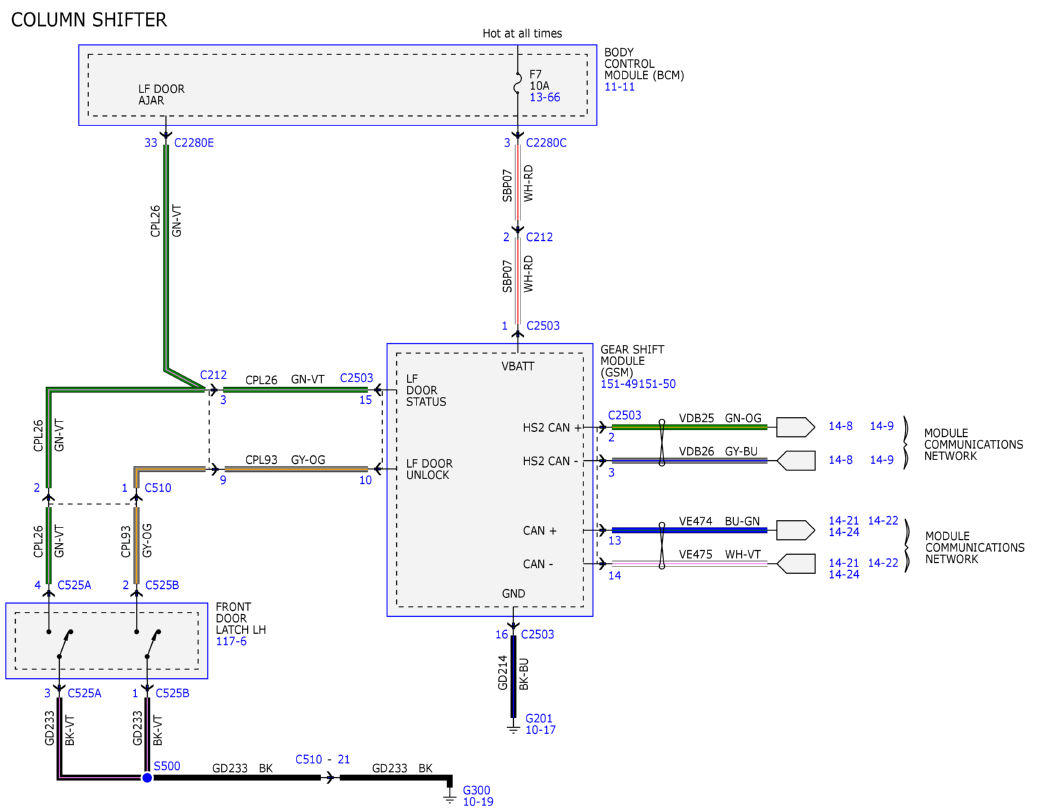

Fig 4: Transmission Controls Wiring Diagram - 10R80 (4 Of 19)

Courtesy of FORD MOTOR COMPANY

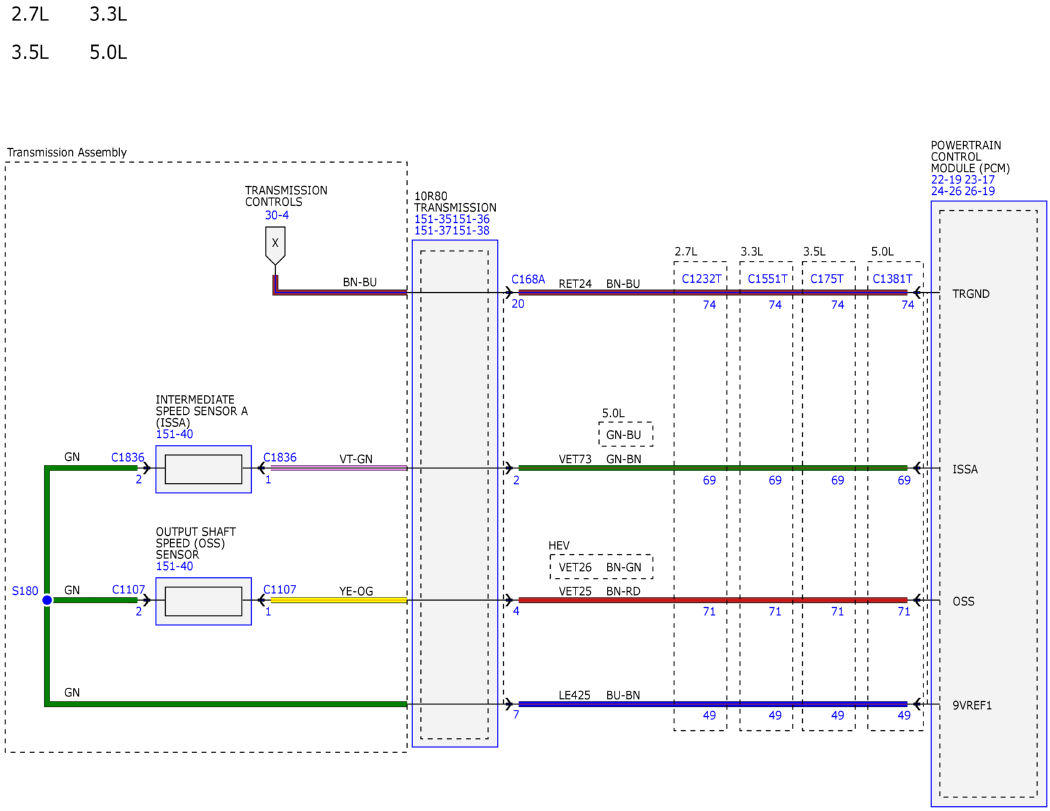

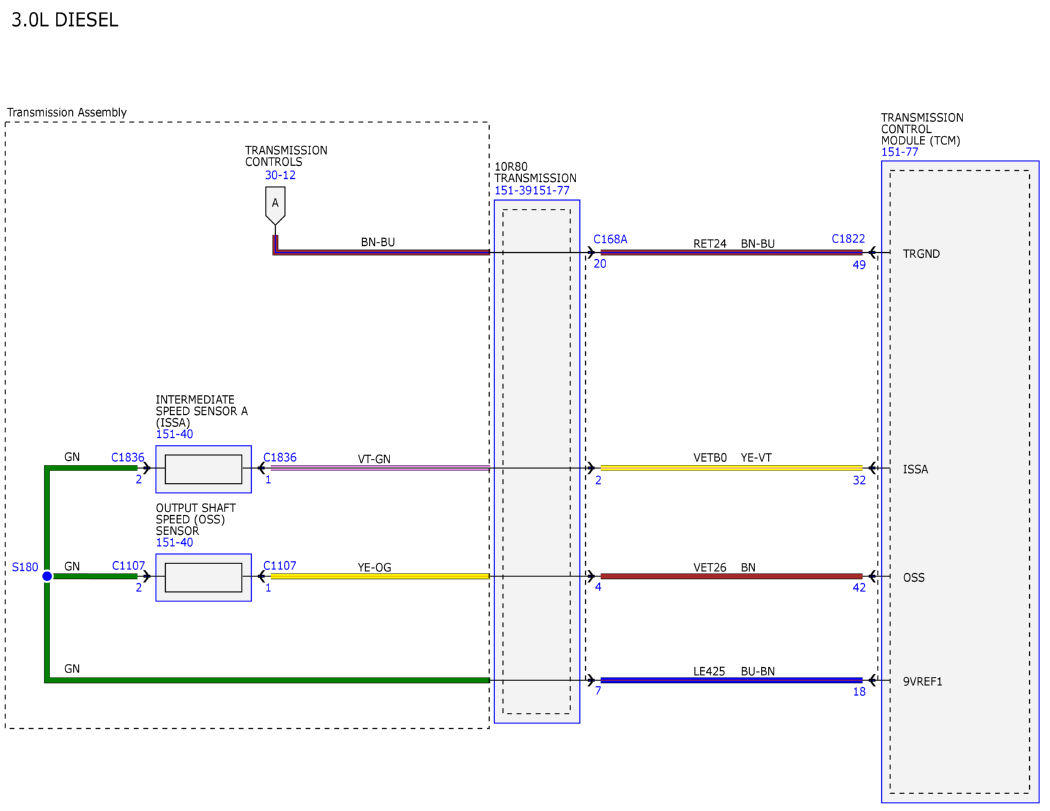

Fig 5: Transmission Controls Wiring Diagram - 10R80 (5 Of 19)

Courtesy of FORD MOTOR COMPANY

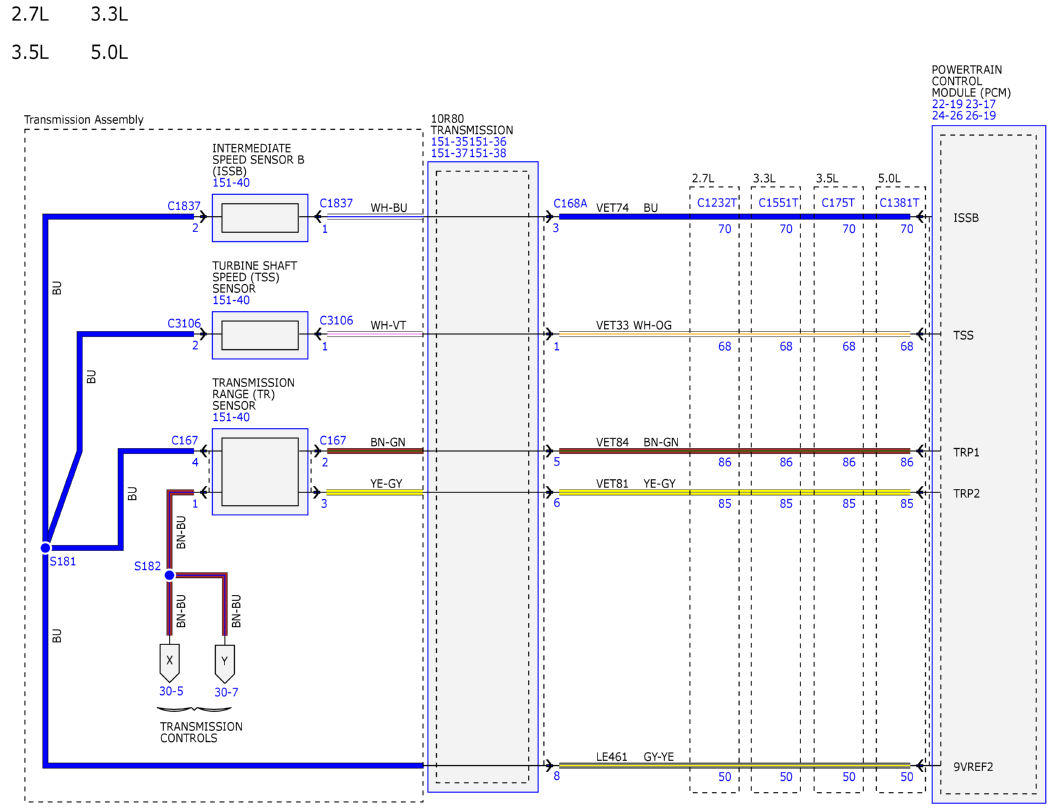

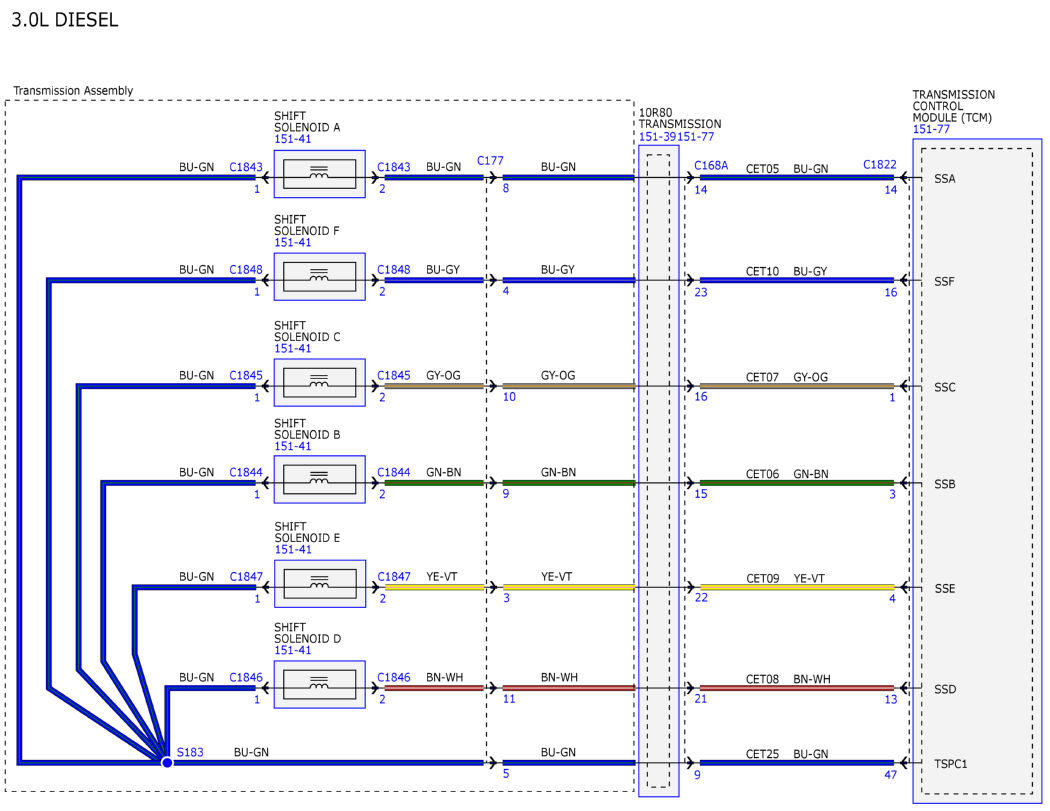

Fig 6: Transmission Controls Wiring Diagram - 10R80 (6 Of 19)

Courtesy of FORD MOTOR COMPANY

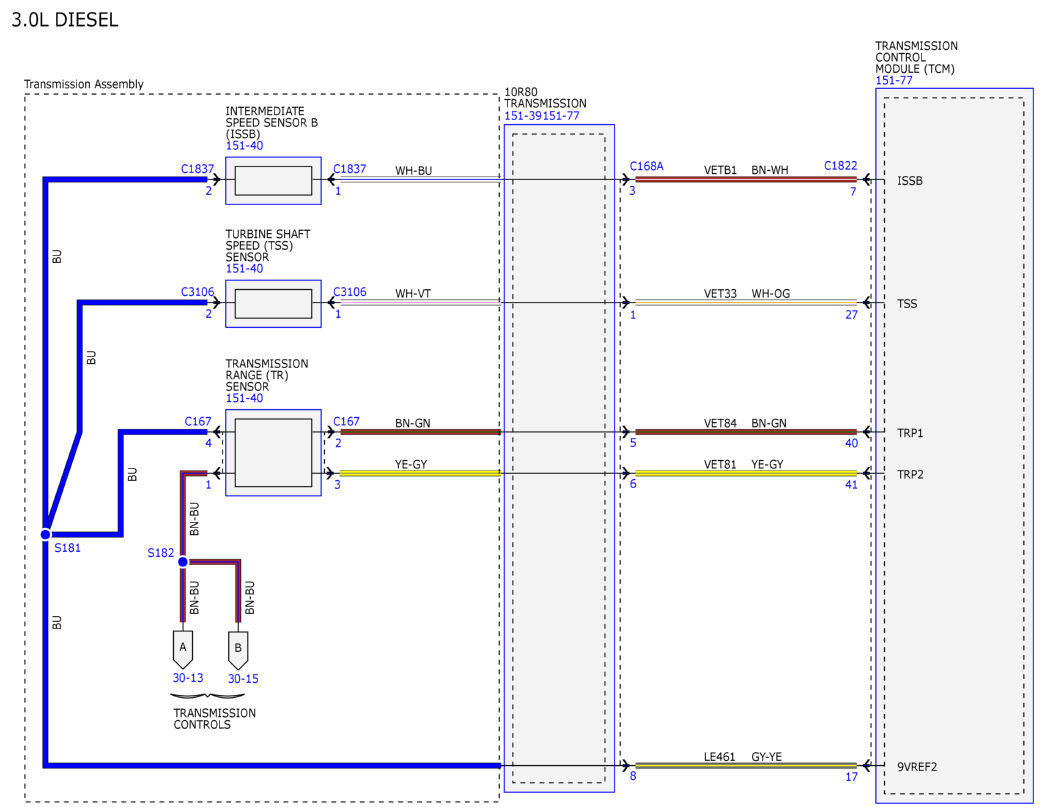

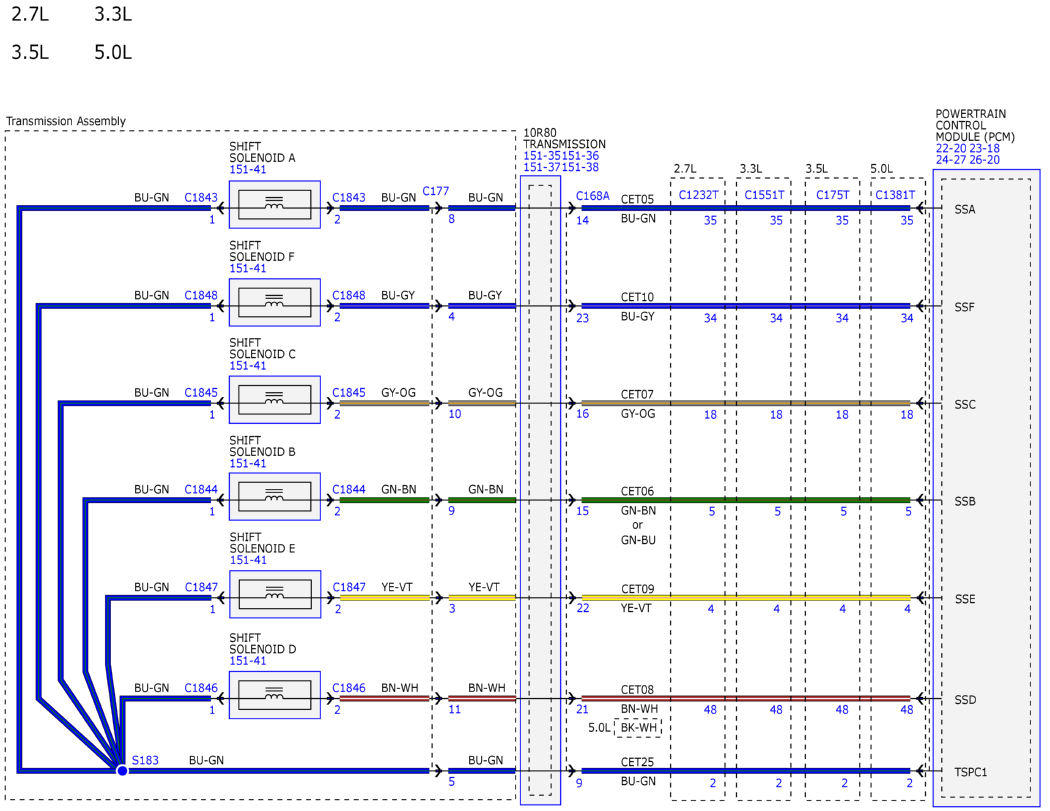

Fig 7: Transmission Controls Wiring Diagram - 10R80 (7 Of 19)

Courtesy of FORD MOTOR COMPANY

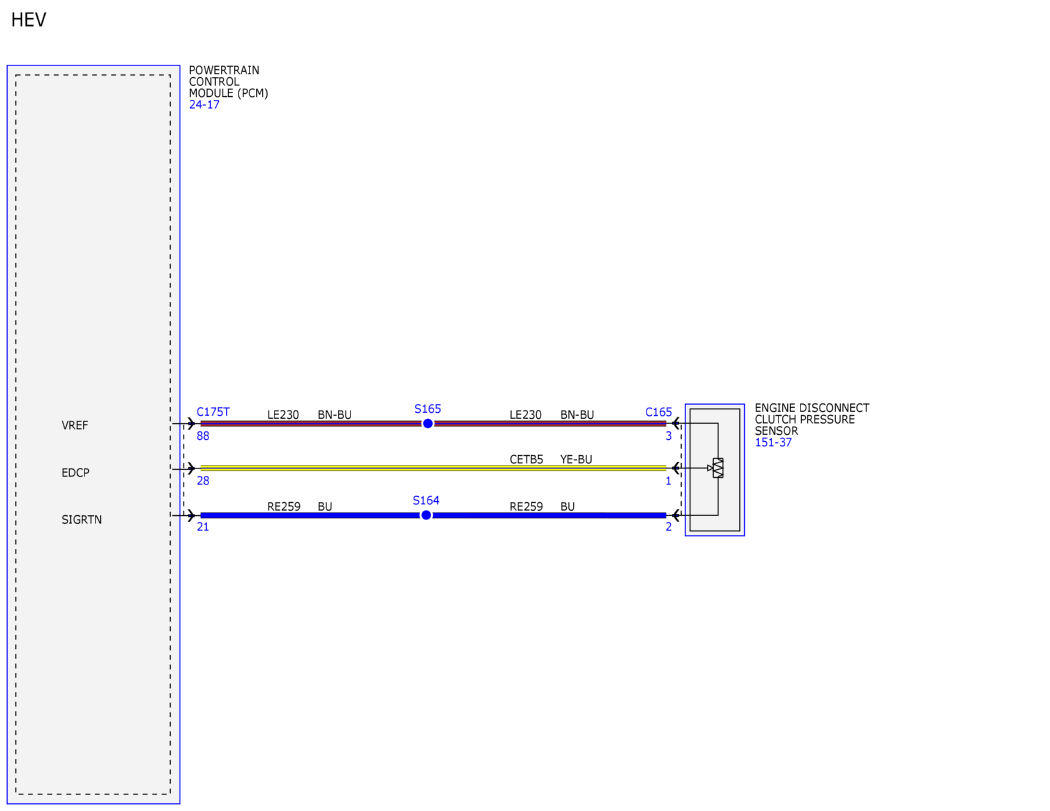

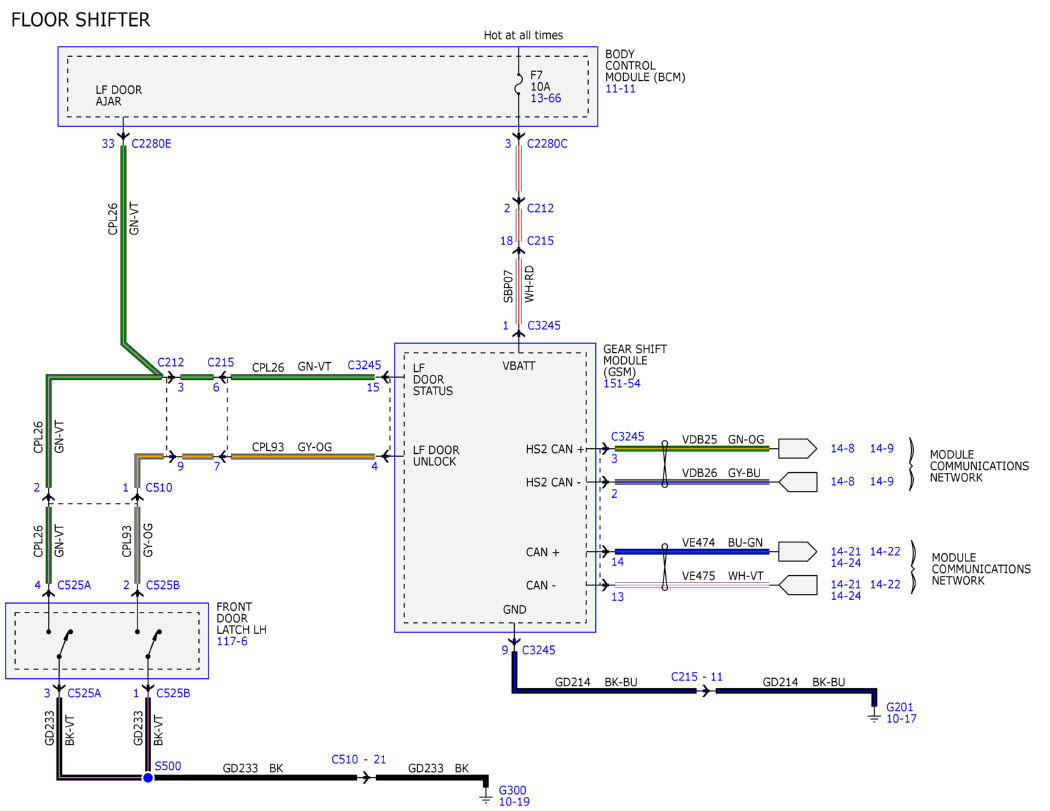

Fig 8: Transmission Controls Wiring Diagram - 10R80 (8 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 9: Transmission Controls Wiring Diagram - 10R80 (9 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 10: Transmission Controls Wiring Diagram - 10R80 (10 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 11: Transmission Controls Wiring Diagram - 10R80 (11 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 12: Transmission Controls Wiring Diagram - 10R80 (12 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 13: Transmission Controls Wiring Diagram - 10R80 (13 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 14: Transmission Controls Wiring Diagram - 10R80 (14 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 15: Transmission Controls Wiring Diagram - 10R80 (15 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 16: Transmission Controls Wiring Diagram - 10R80 (16 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 17: Transmission Controls Wiring Diagram - 10R80 (17 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 18: Transmission Controls Wiring Diagram - 10R80 (18 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 19: Transmission Controls Wiring Diagram - 10R80 (19 Of 19)

Courtesy of FORD MOTOR COMPANY
