Trailer/Camper Adapter

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

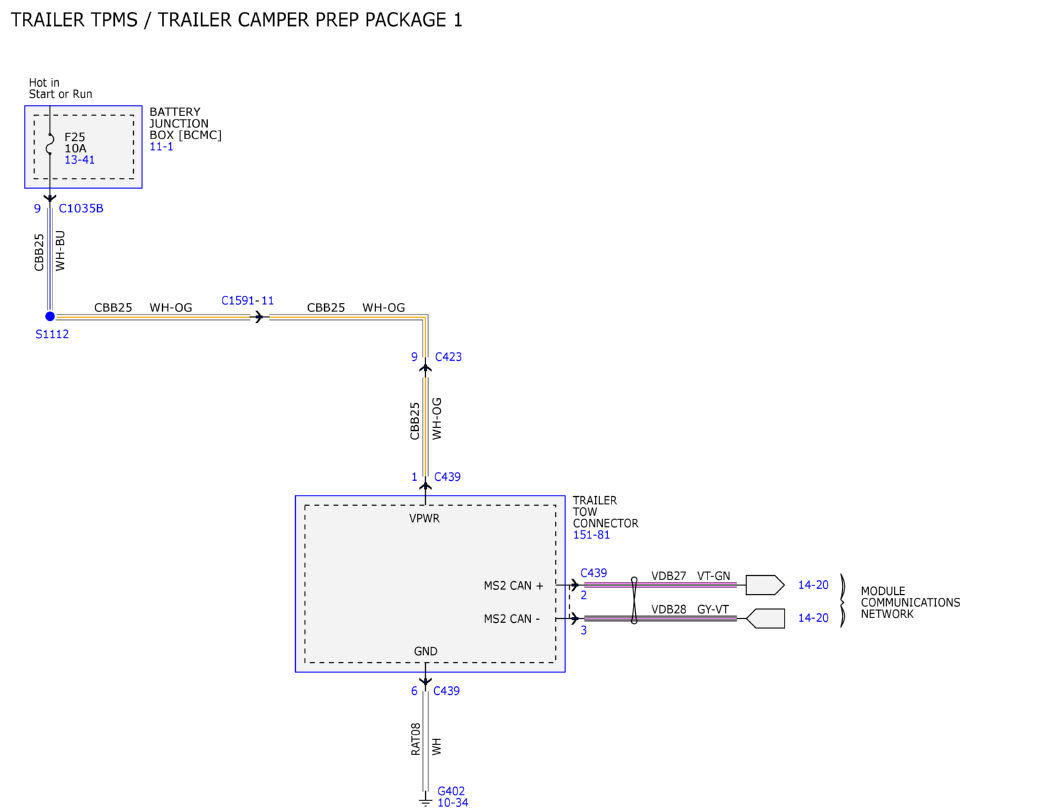

Fig 1: Trailer/Camper Adapter Wiring Diagram (1 Of 8)

Courtesy of FORD MOTOR COMPANY

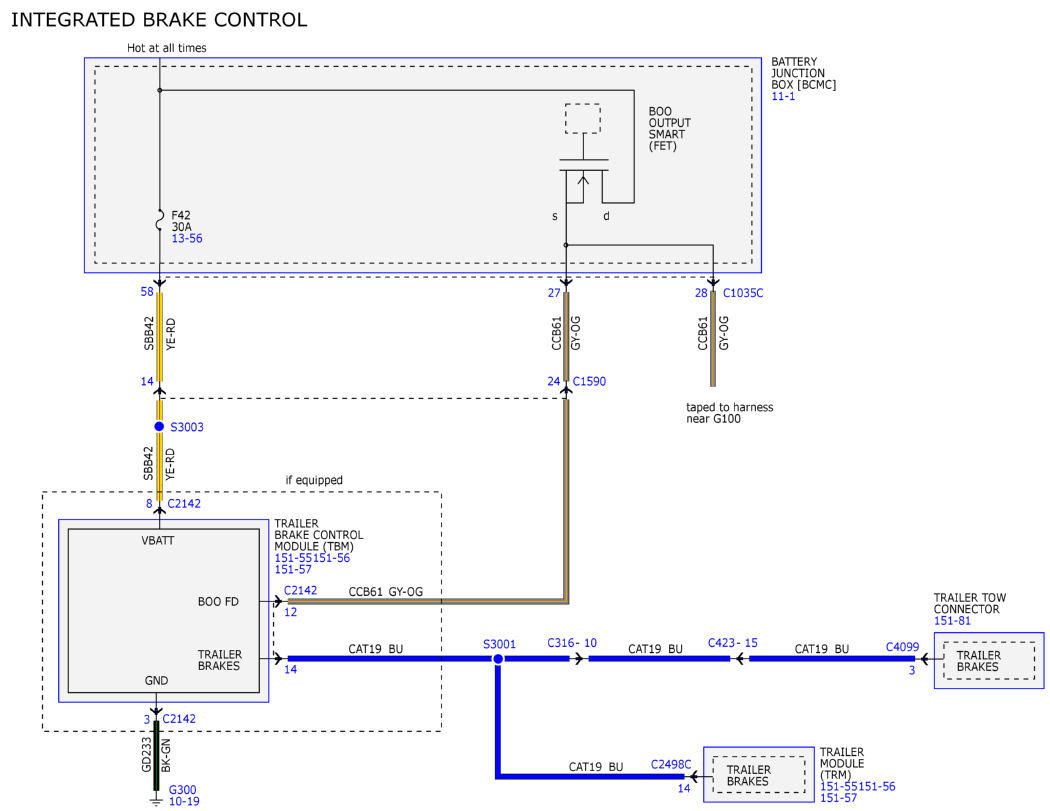

Fig 2: Trailer/Camper Adapter Wiring Diagram (2 Of 8)

Courtesy of FORD MOTOR COMPANY

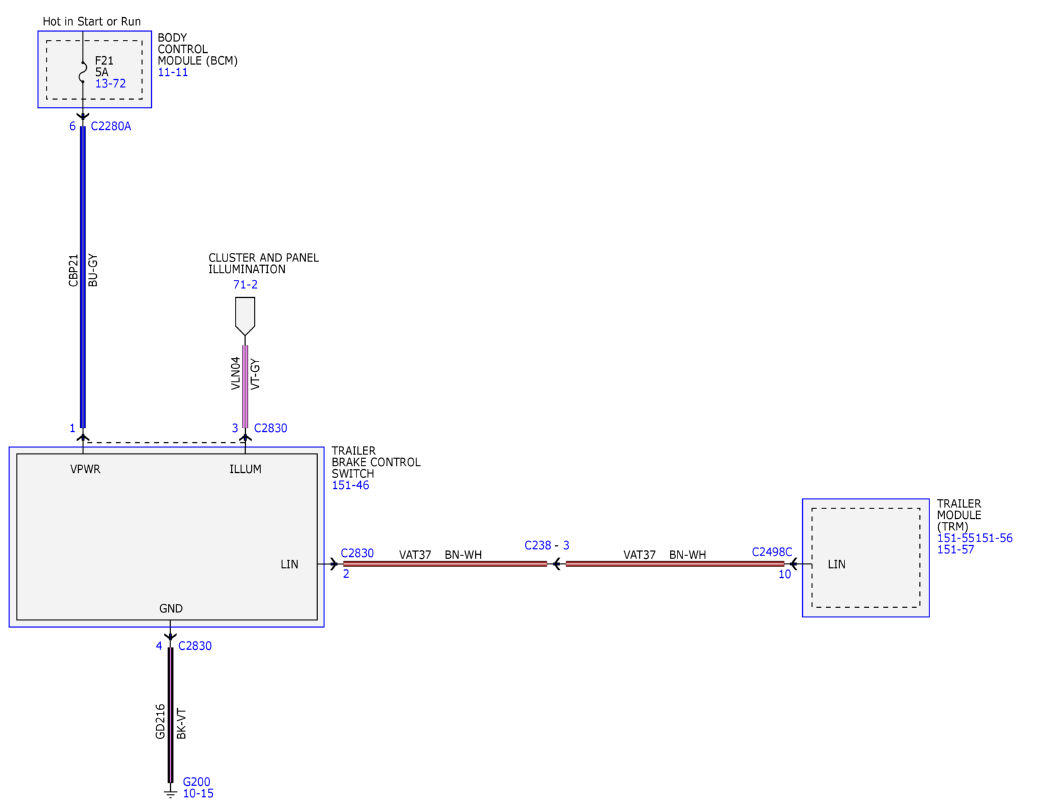

Fig 3: Trailer/Camper Adapter Wiring Diagram (3 Of 8)

Courtesy of FORD MOTOR COMPANY

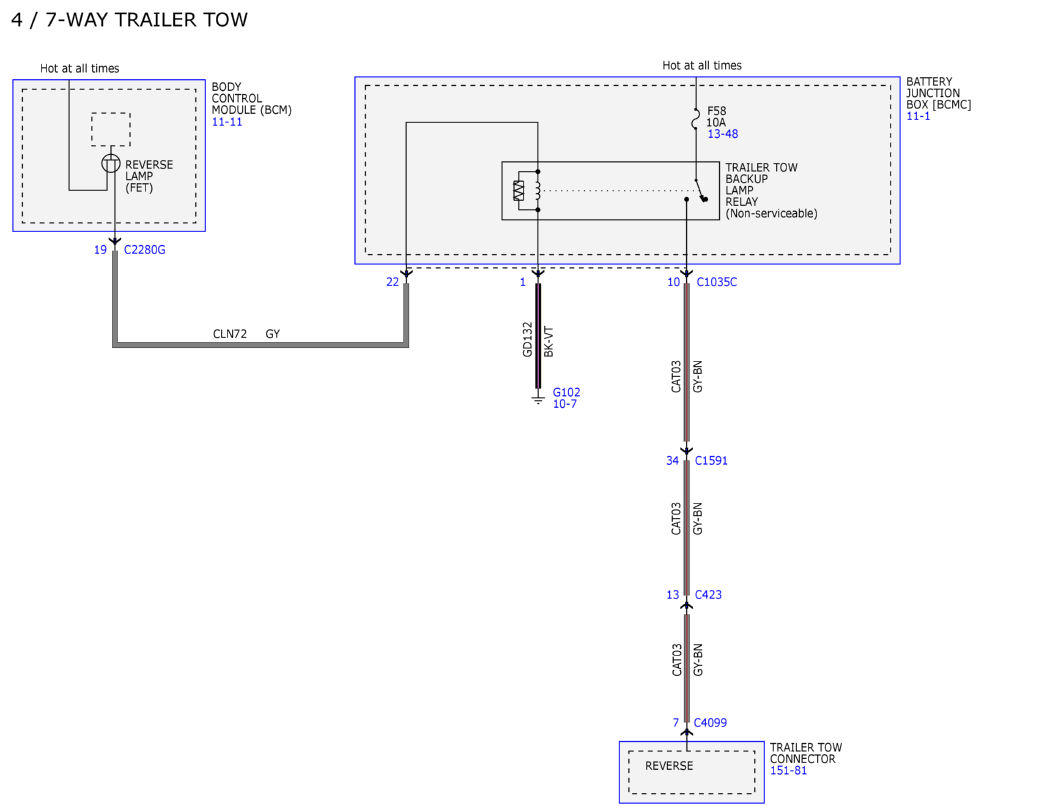

Fig 4: Trailer/Camper Adapter Wiring Diagram (4 Of 8)

Courtesy of FORD MOTOR COMPANY

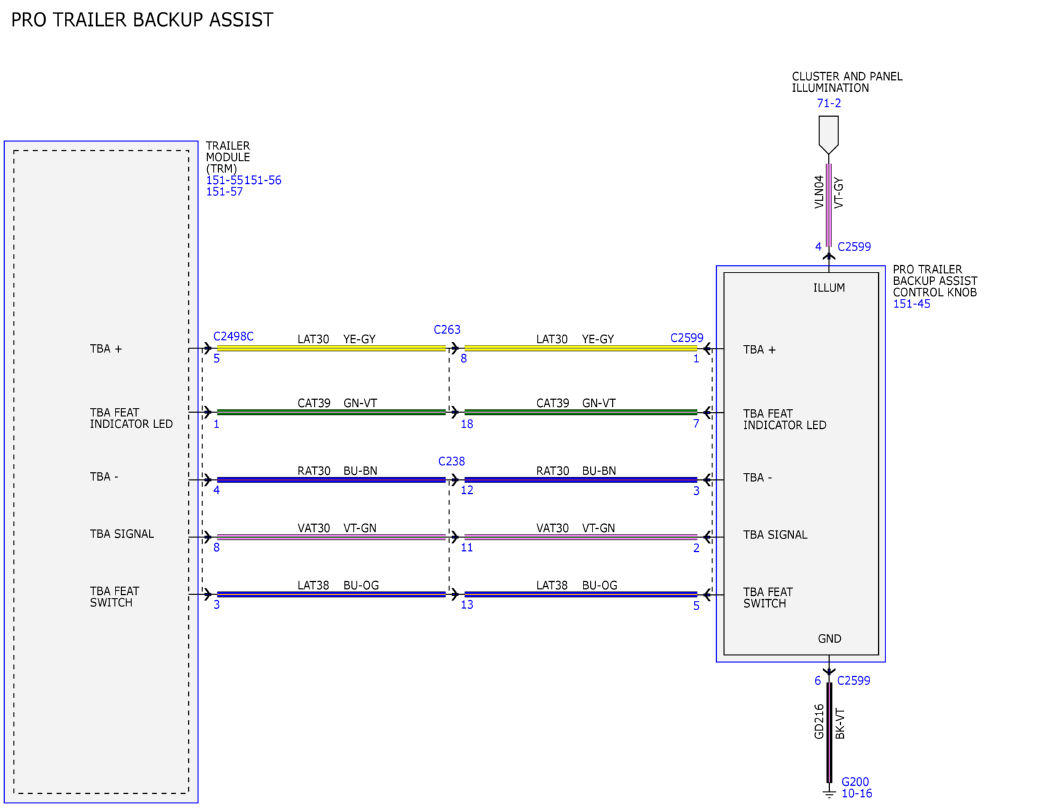

Fig 5: Trailer/Camper Adapter Wiring Diagram (5 Of 8)

Courtesy of FORD MOTOR COMPANY

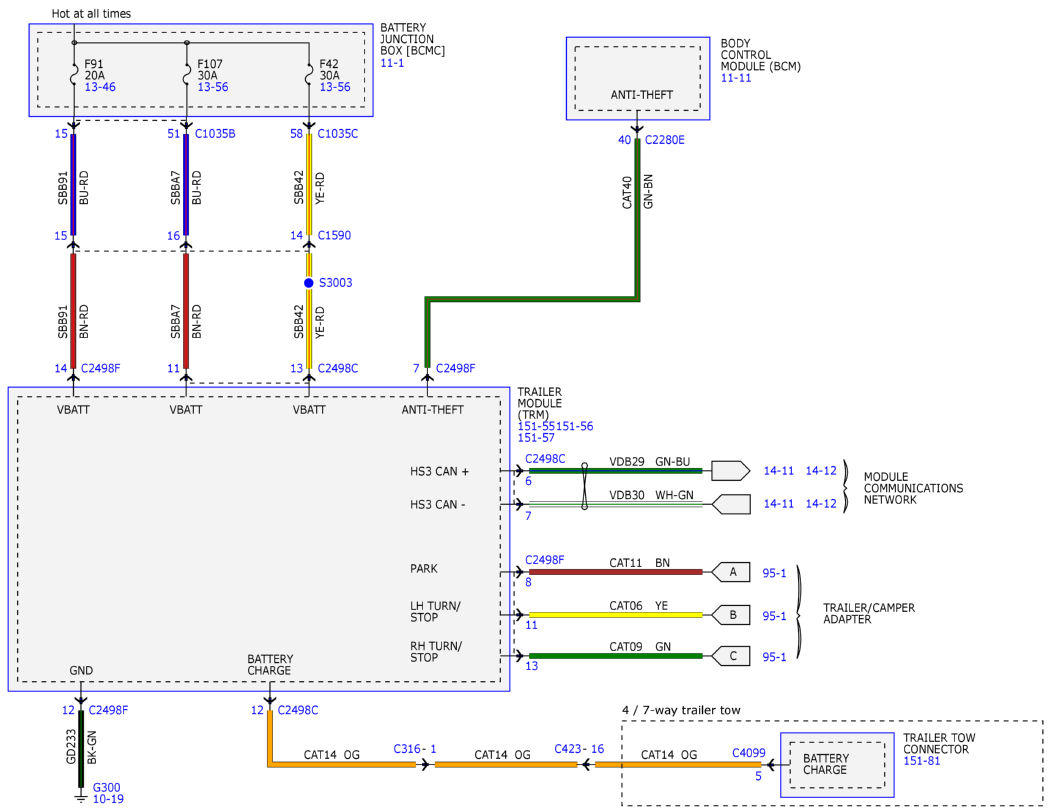

Fig 6: Trailer/Camper Adapter Wiring Diagram (6 Of 8)

Courtesy of FORD MOTOR COMPANY

Fig 7: Trailer/Camper Adapter Wiring Diagram (7 Of 8)

Courtesy of FORD MOTOR COMPANY

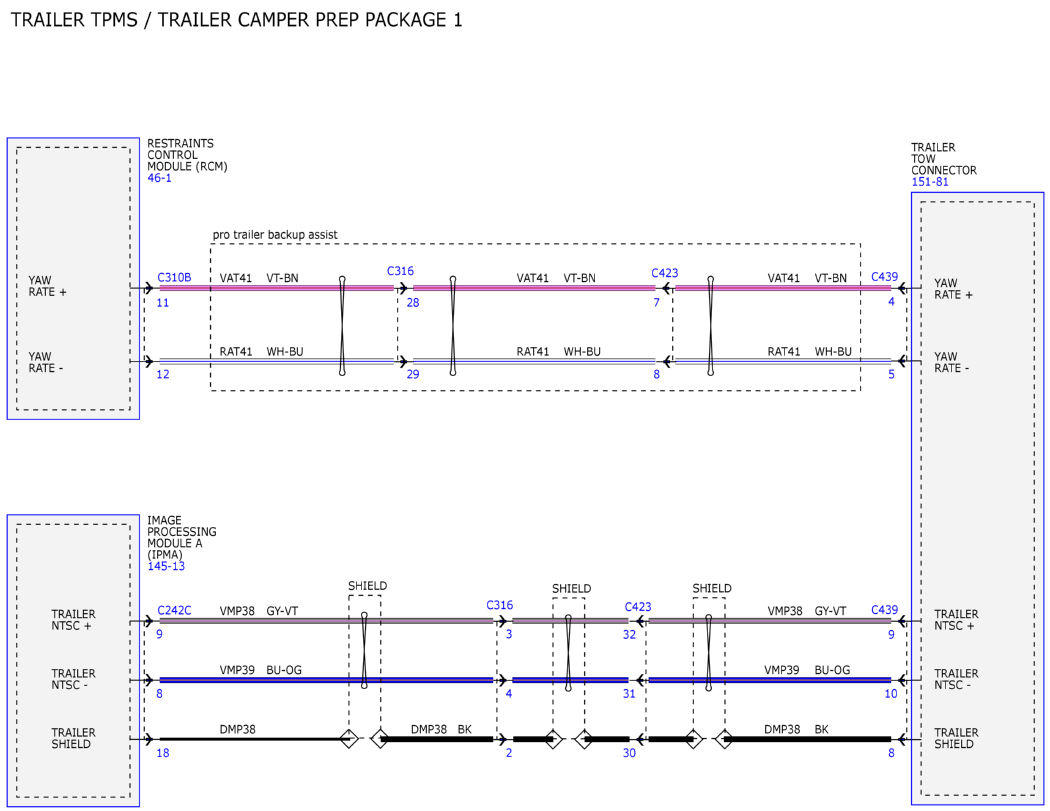

Fig 8: Trailer/Camper Adapter Wiring Diagram (8 Of 8)

Courtesy of FORD MOTOR COMPANY
