Supplemental Restraint System

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

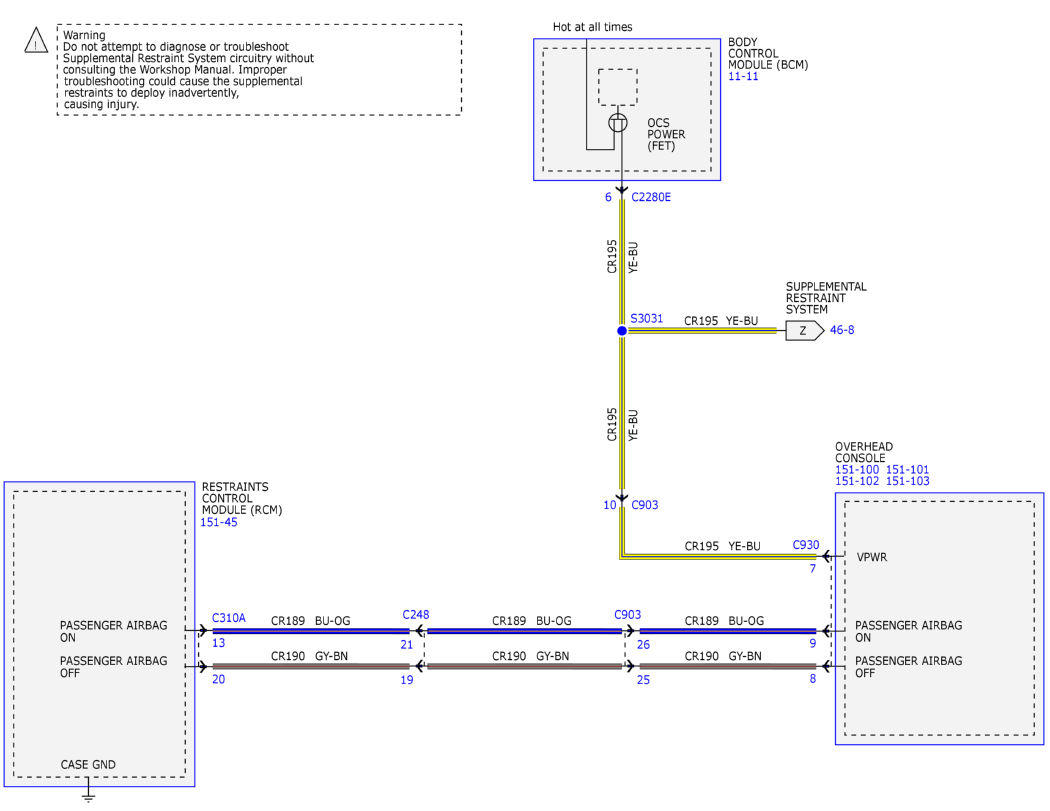

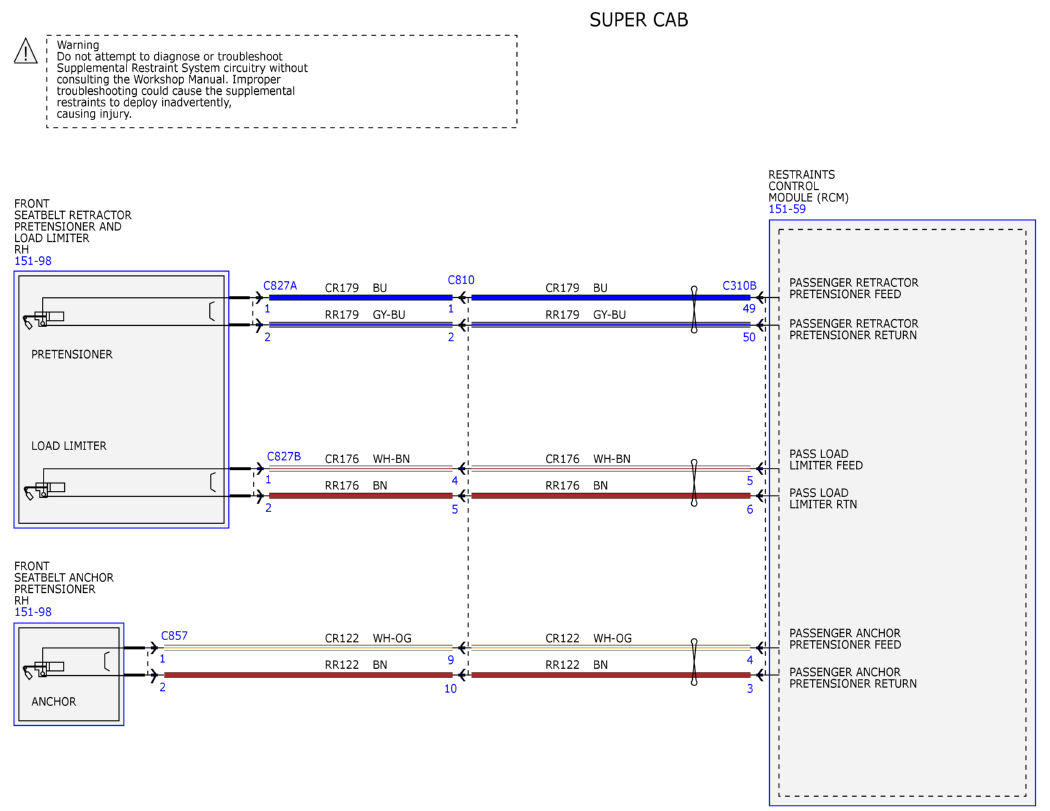

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 16)

Courtesy of FORD MOTOR COMPANY

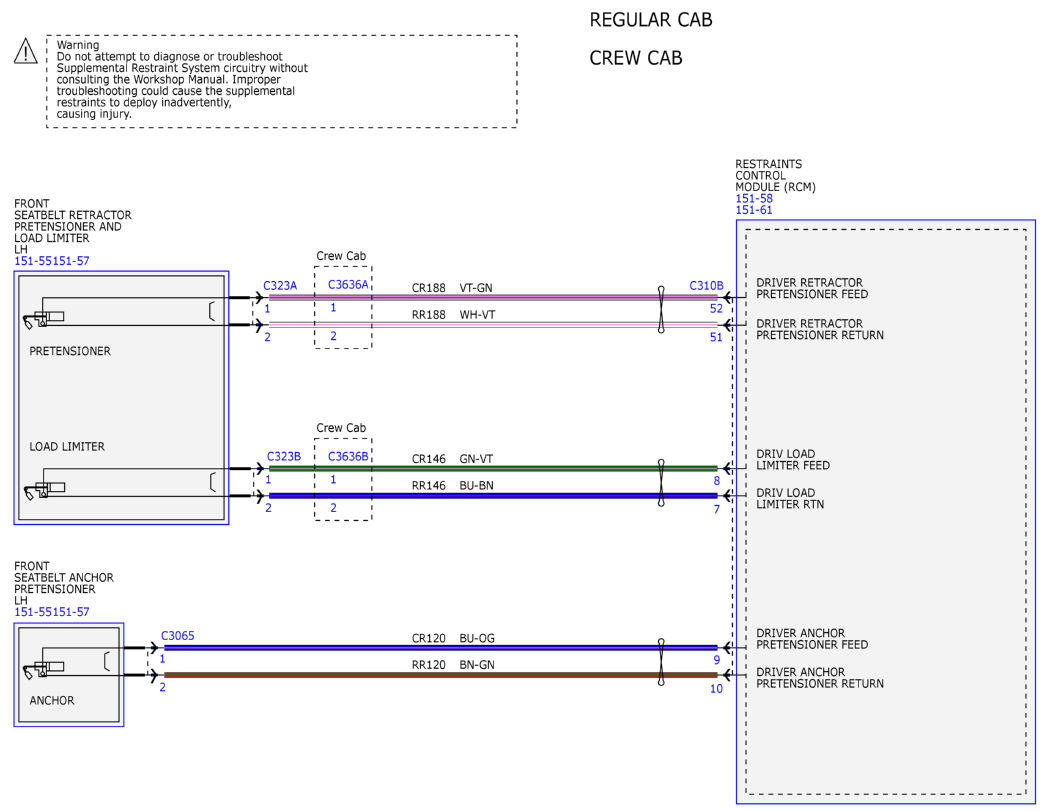

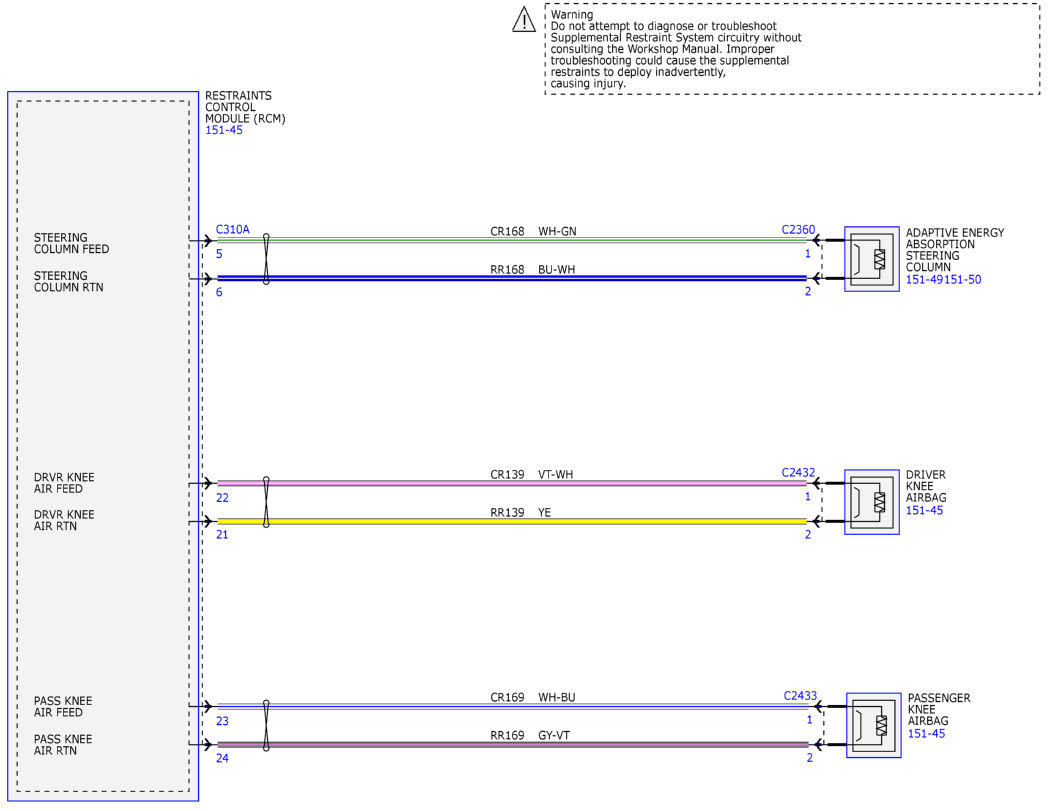

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 16)

Courtesy of FORD MOTOR COMPANY

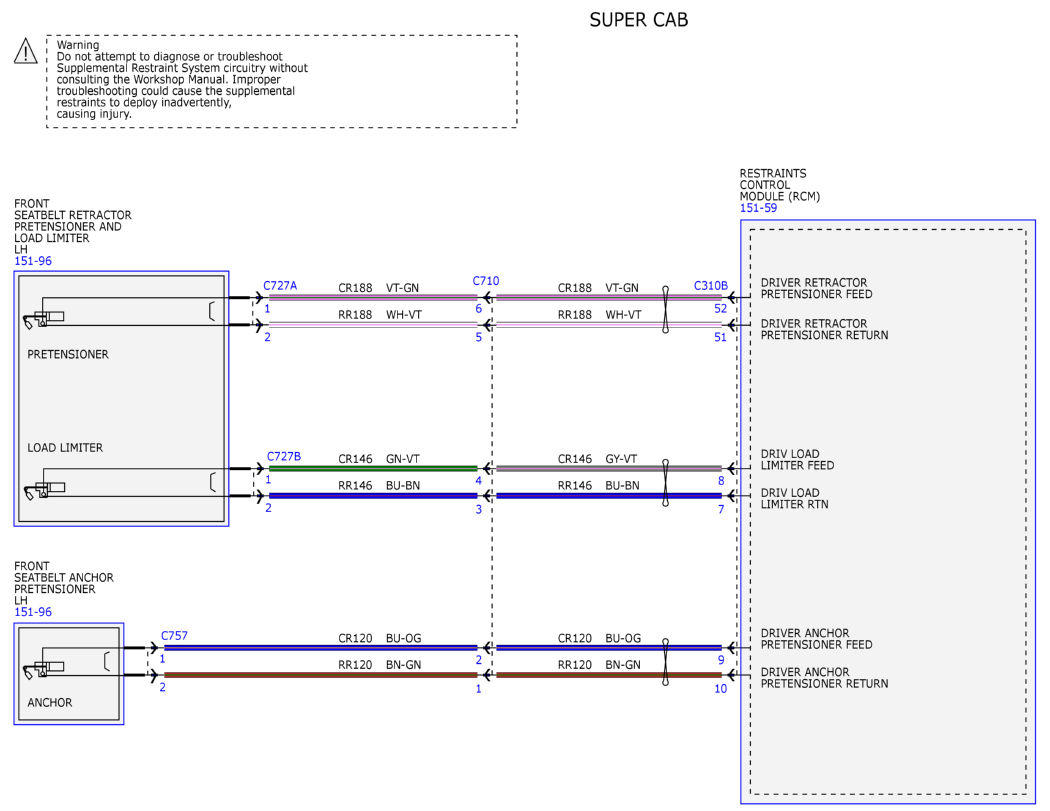

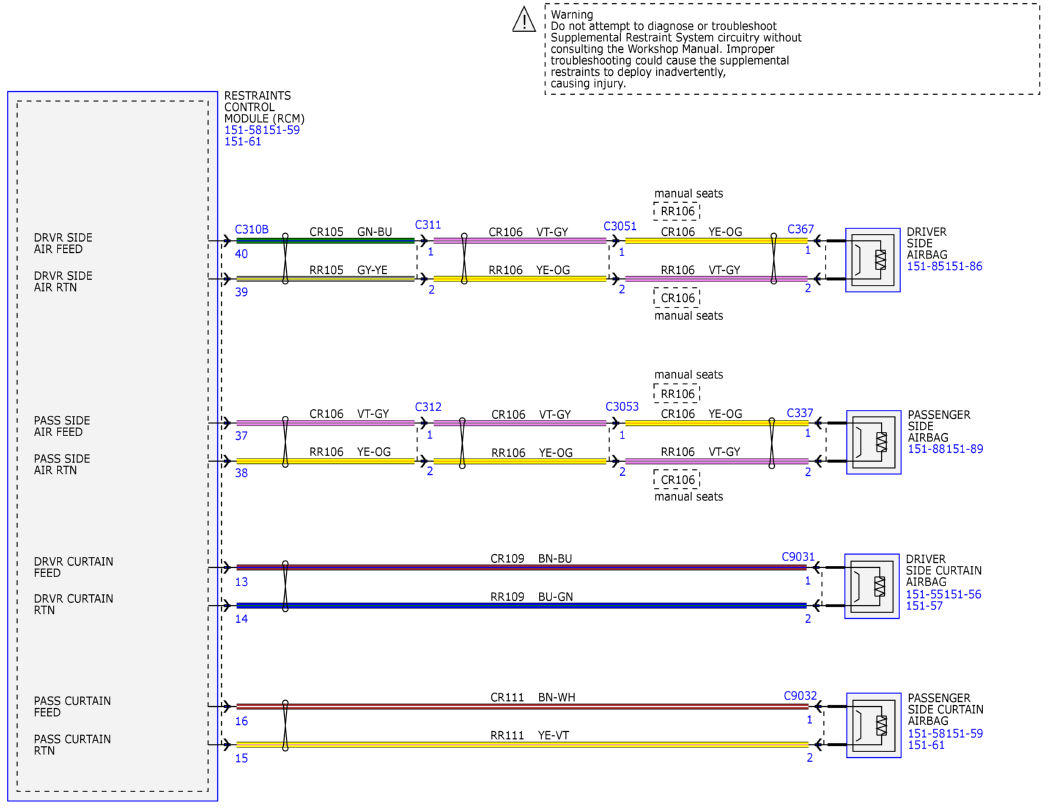

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 16)

Courtesy of FORD MOTOR COMPANY

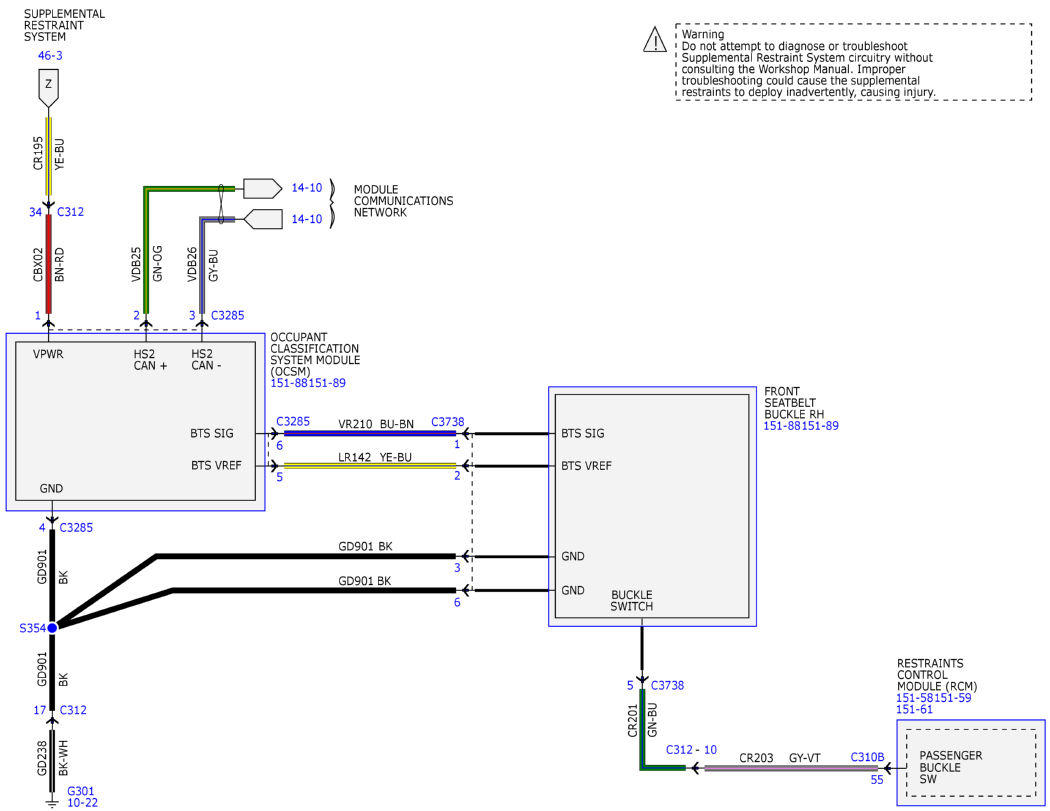

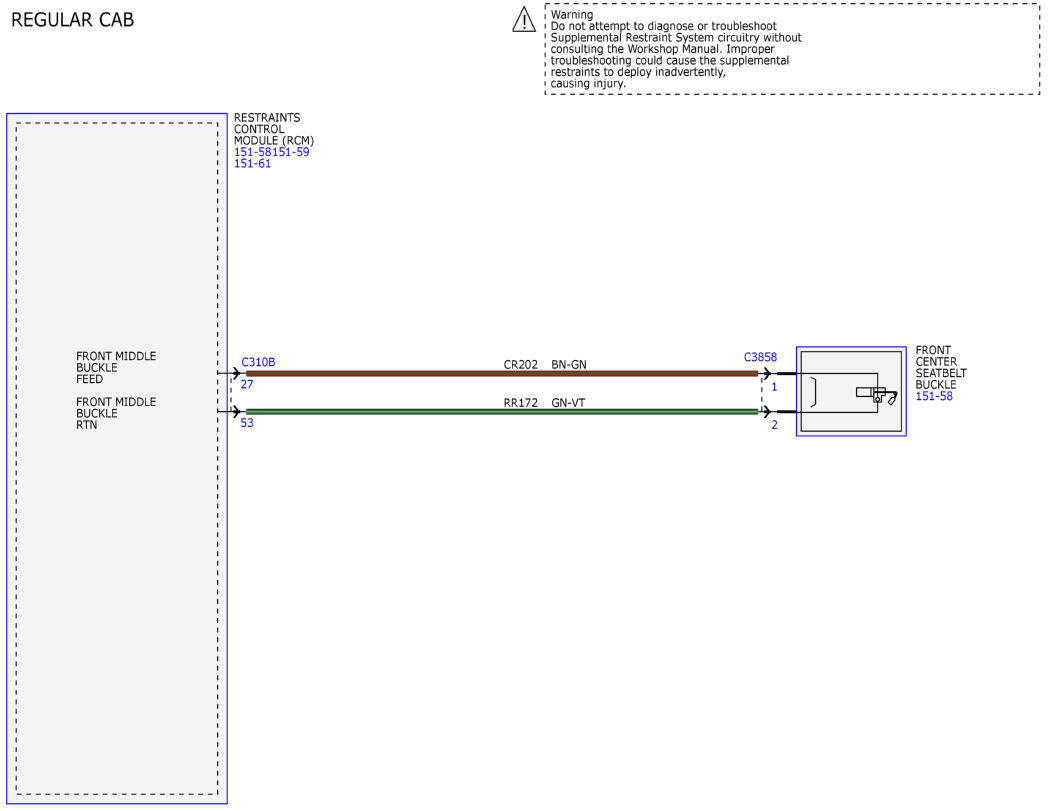

Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 16)

Courtesy of FORD MOTOR COMPANY

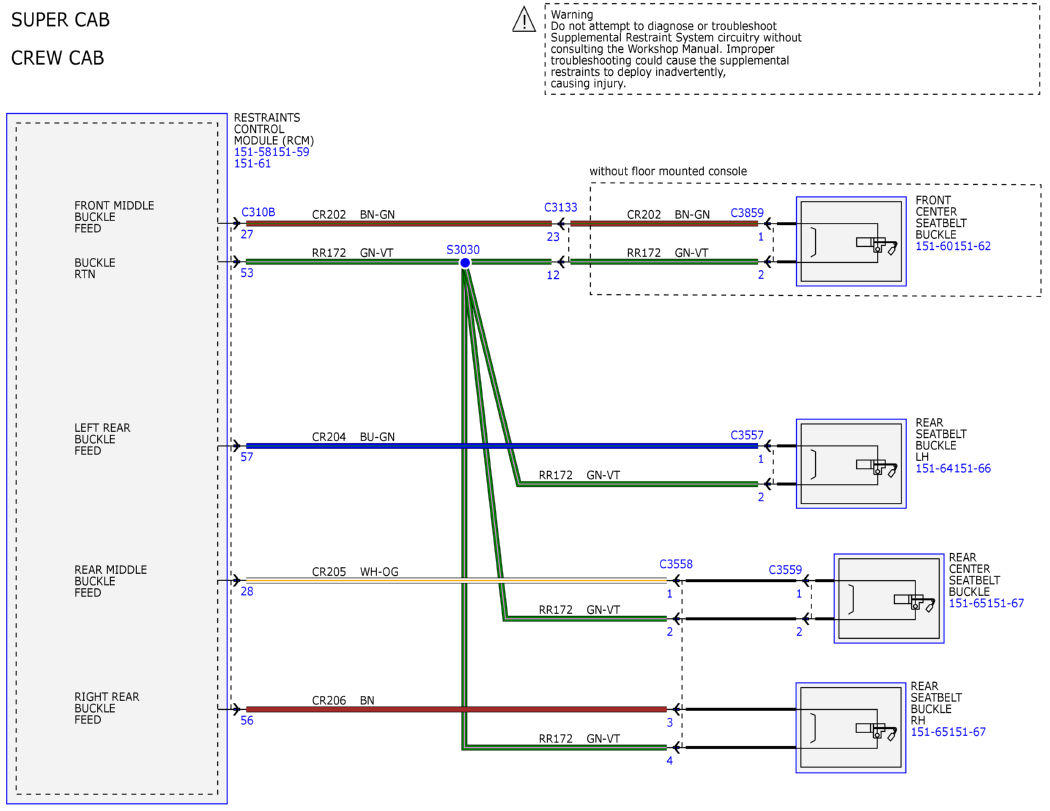

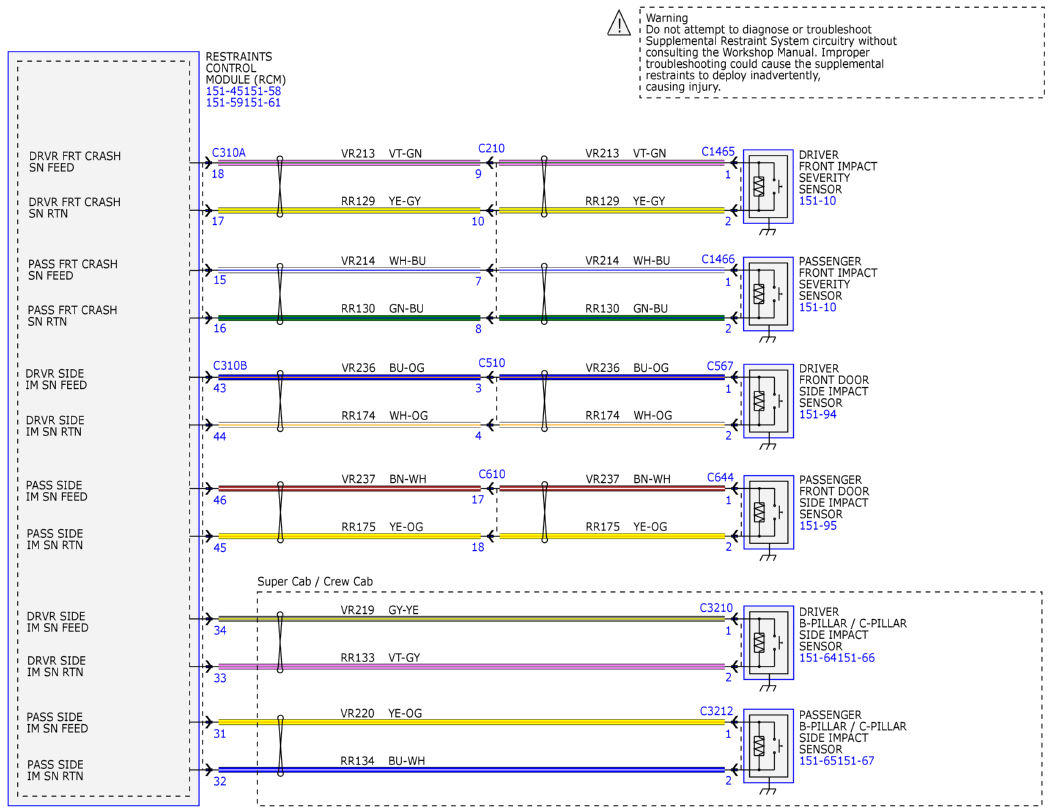

Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 16)

Courtesy of FORD MOTOR COMPANY

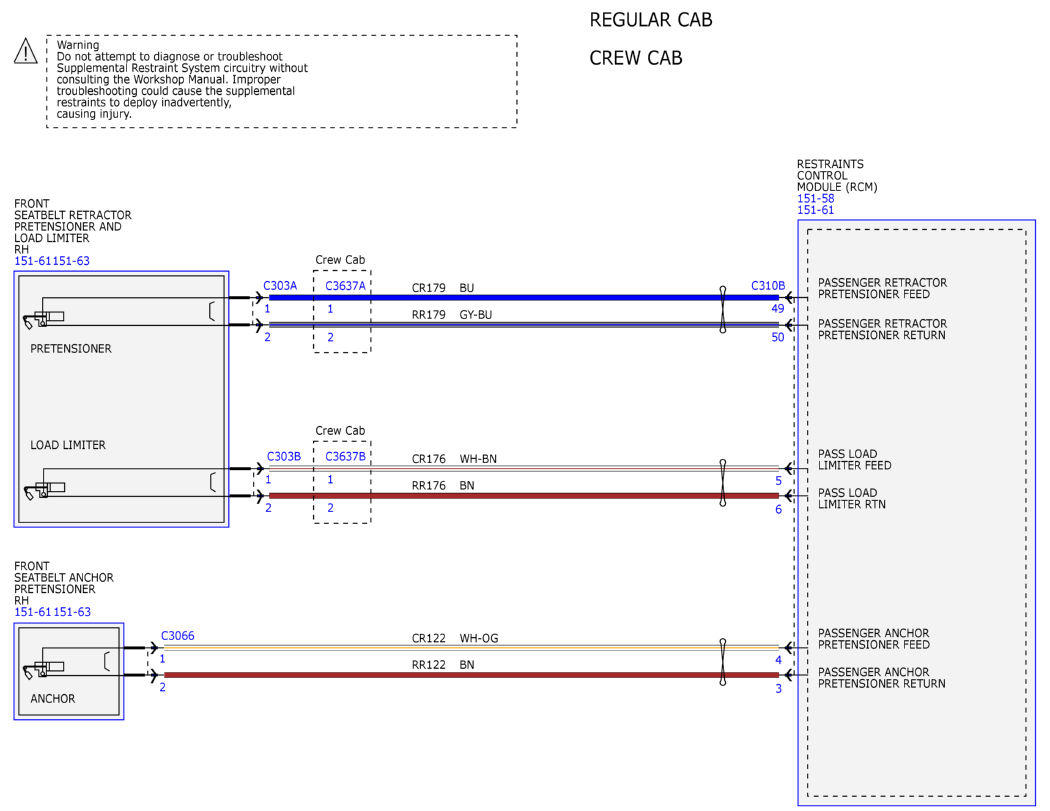

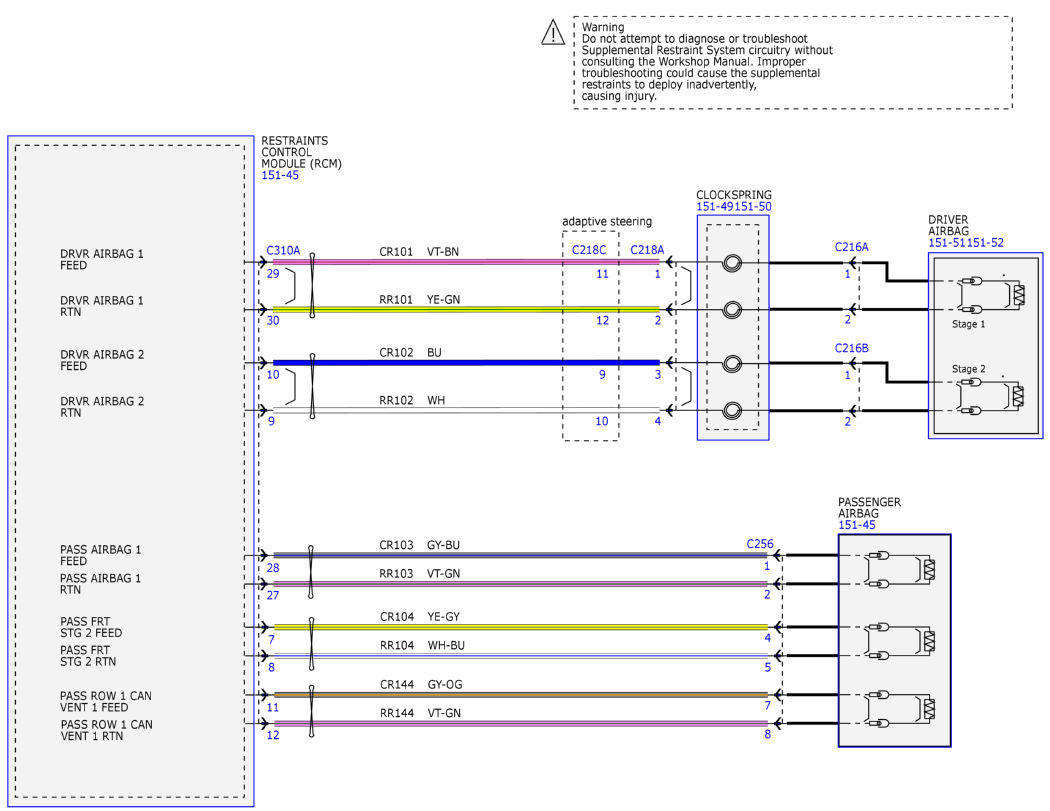

Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 16)

Courtesy of FORD MOTOR COMPANY

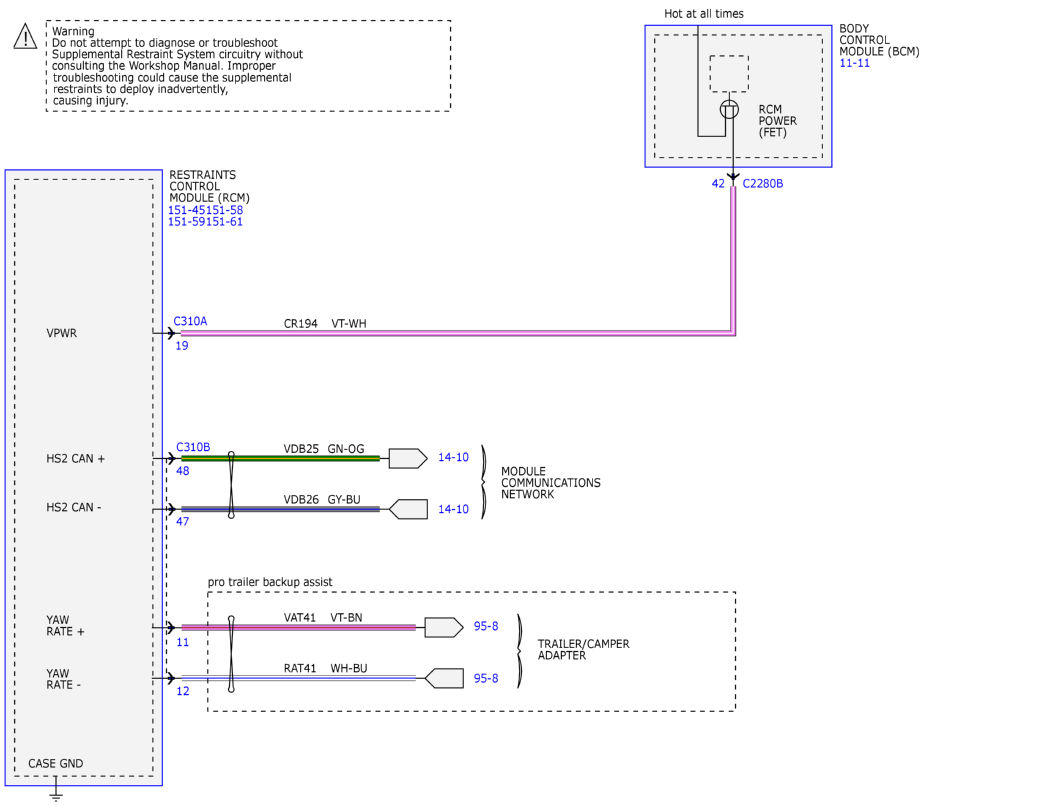

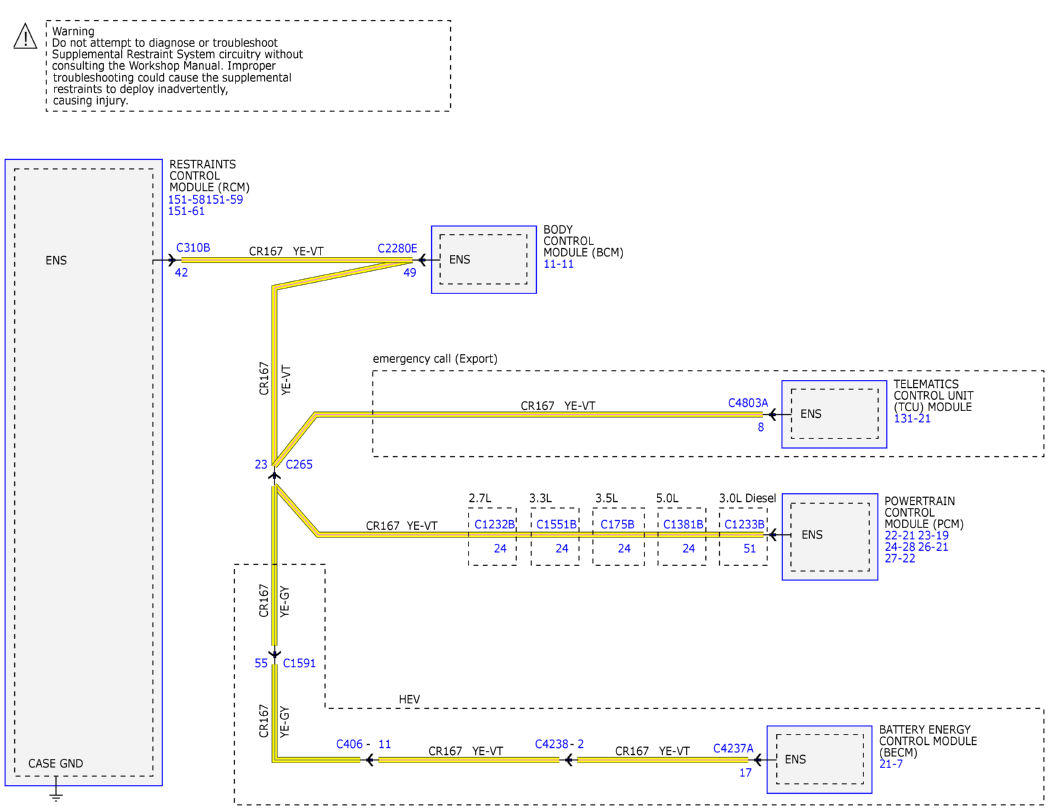

Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 16)

Courtesy of FORD MOTOR COMPANY

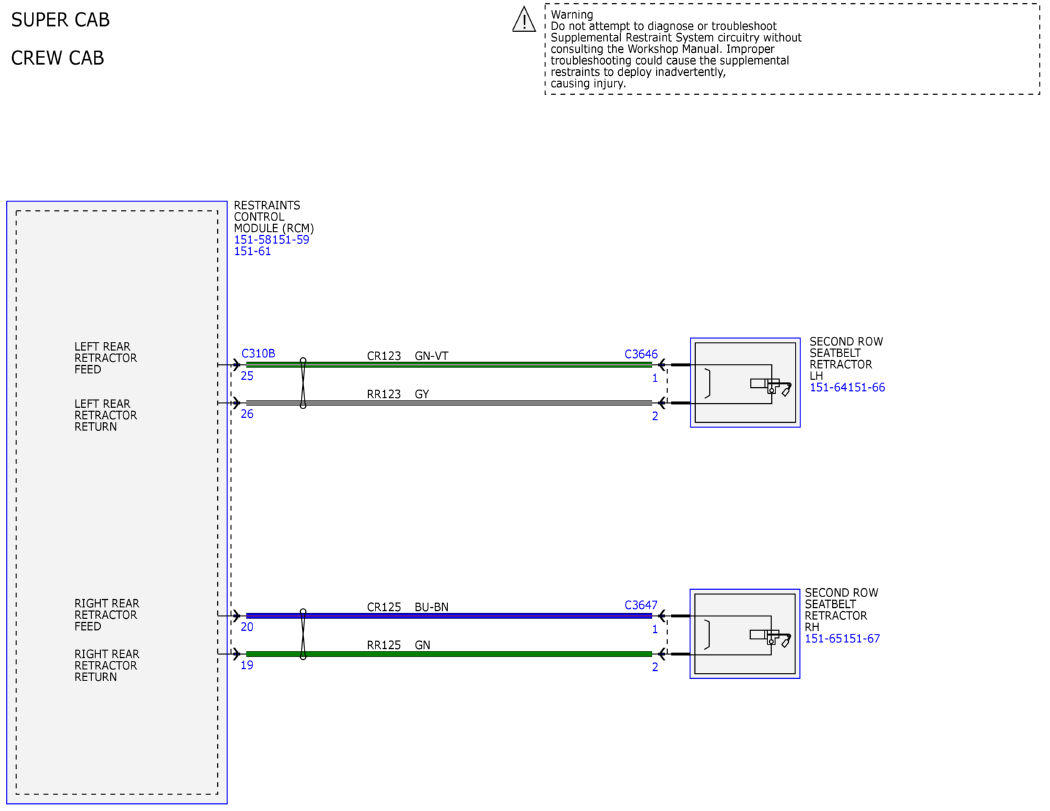

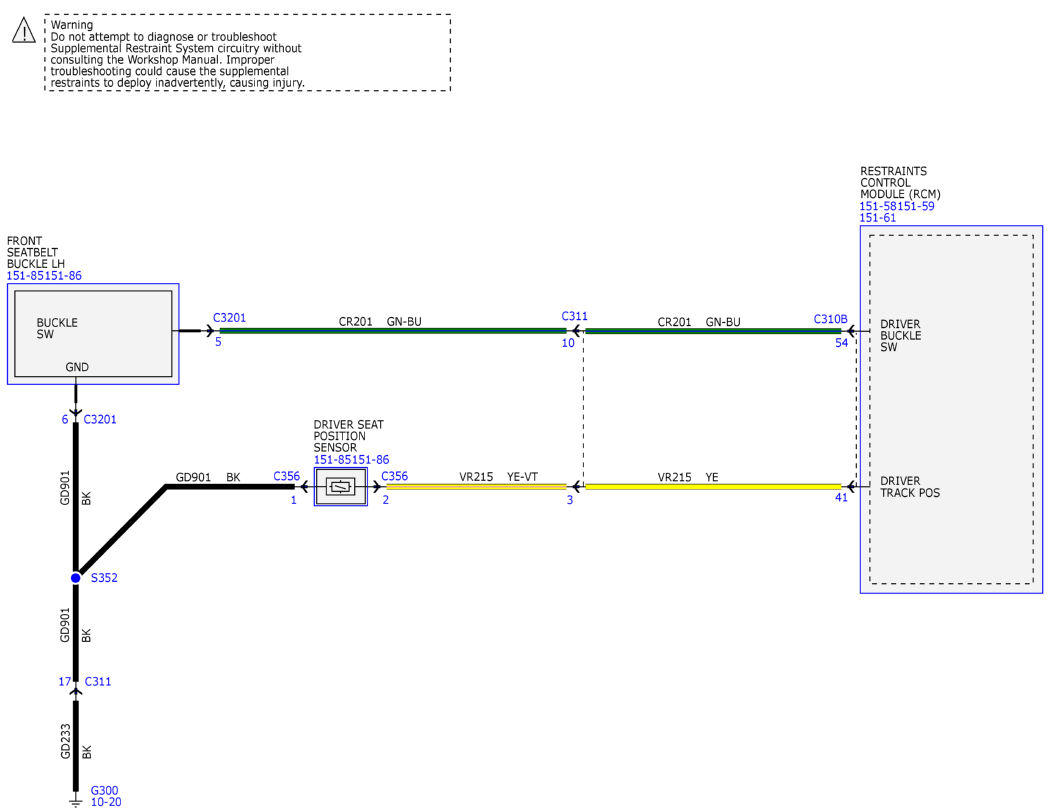

Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 10: Supplemental Restraint System Wiring Diagram (10 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 11: Supplemental Restraint System Wiring Diagram (11 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 12: Supplemental Restraint System Wiring Diagram (12 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 13: Supplemental Restraint System Wiring Diagram (13 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 14: Supplemental Restraint System Wiring Diagram (14 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 15: Supplemental Restraint System Wiring Diagram (15 Of 16)

Courtesy of FORD MOTOR COMPANY

Fig 16: Supplemental Restraint System Wiring Diagram (16 Of 16)

Courtesy of FORD MOTOR COMPANY
