Section 553 (OEM Wiring Diagrams)
>>
Roof Opening Panel
Roof Opening Panel
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

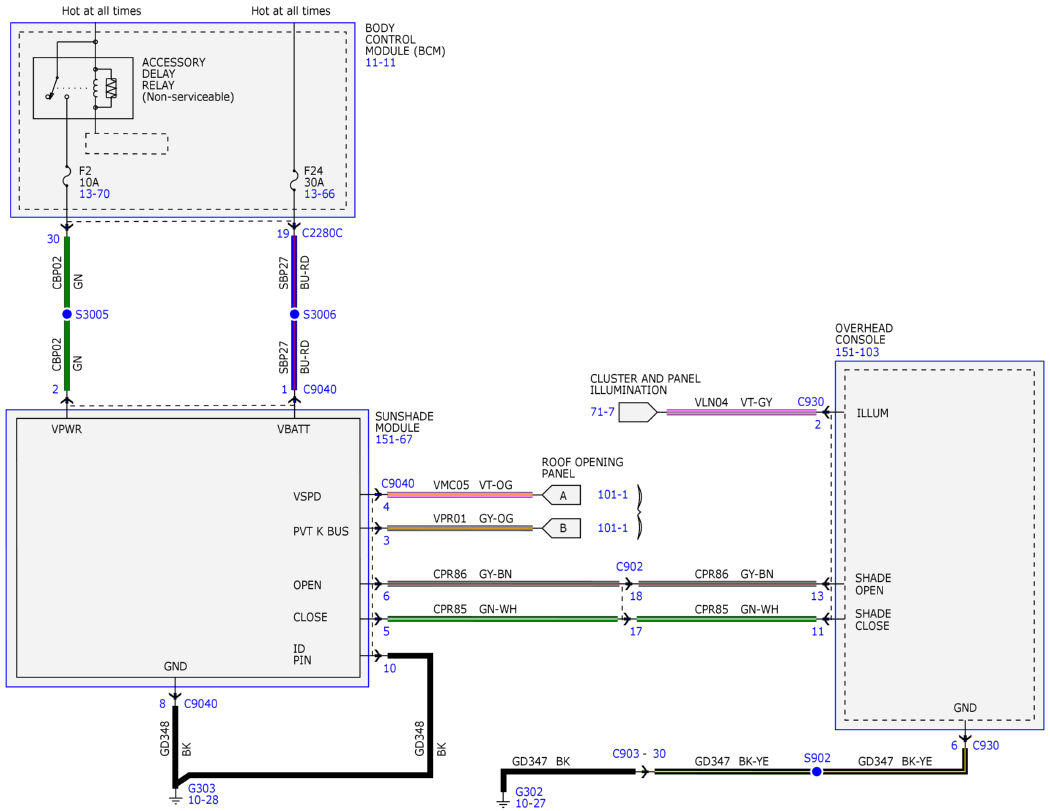

Fig 1: Roof Opening Panel Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

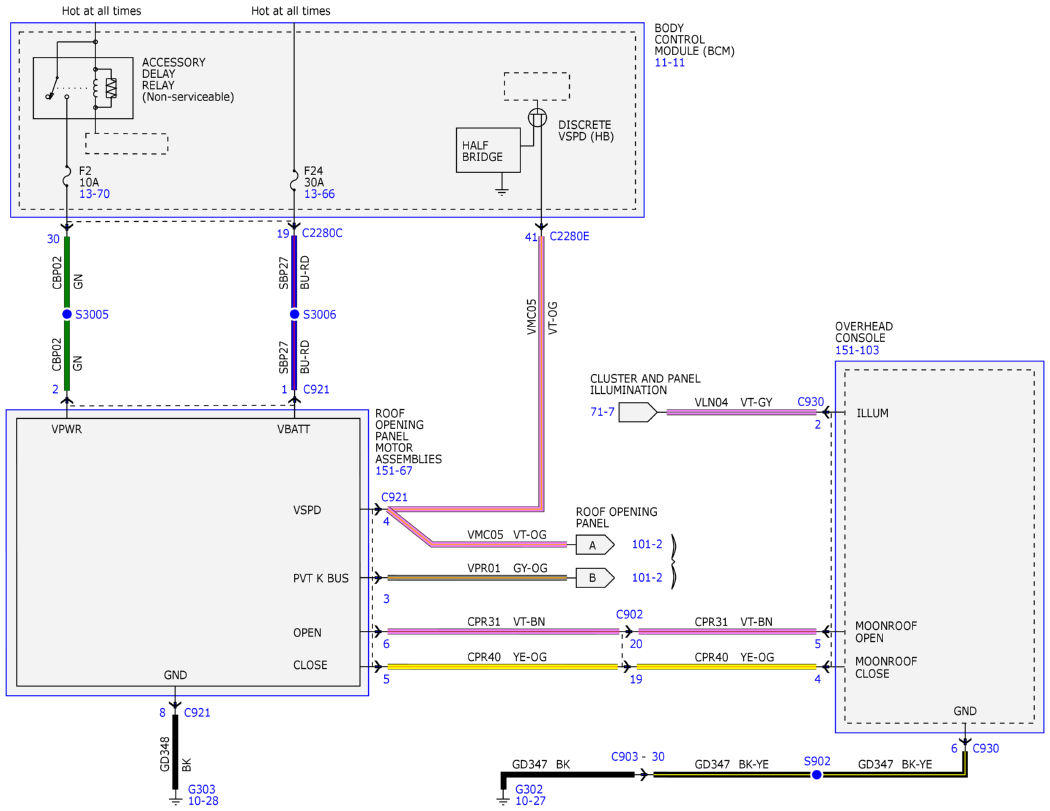

Fig 2: Roof Opening Panel Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
