Reversing Lamps

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

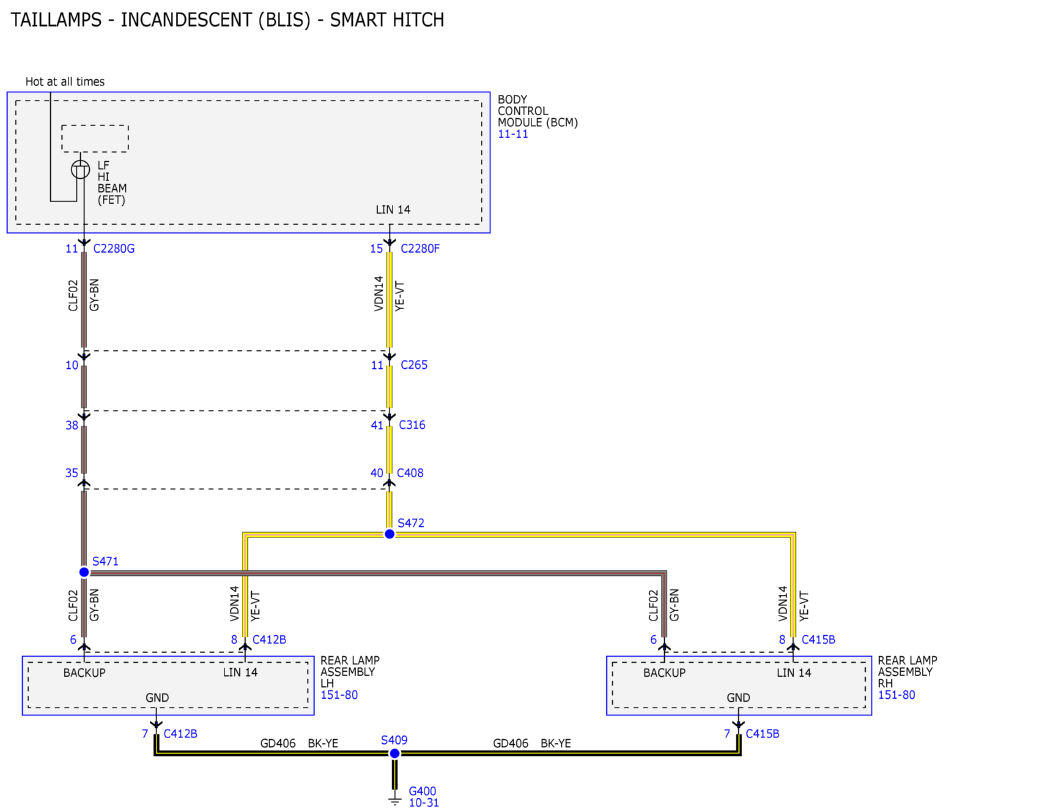

Fig 1: Reversing Lamps Wiring Diagram (1 Of 5)

Courtesy of FORD MOTOR COMPANY

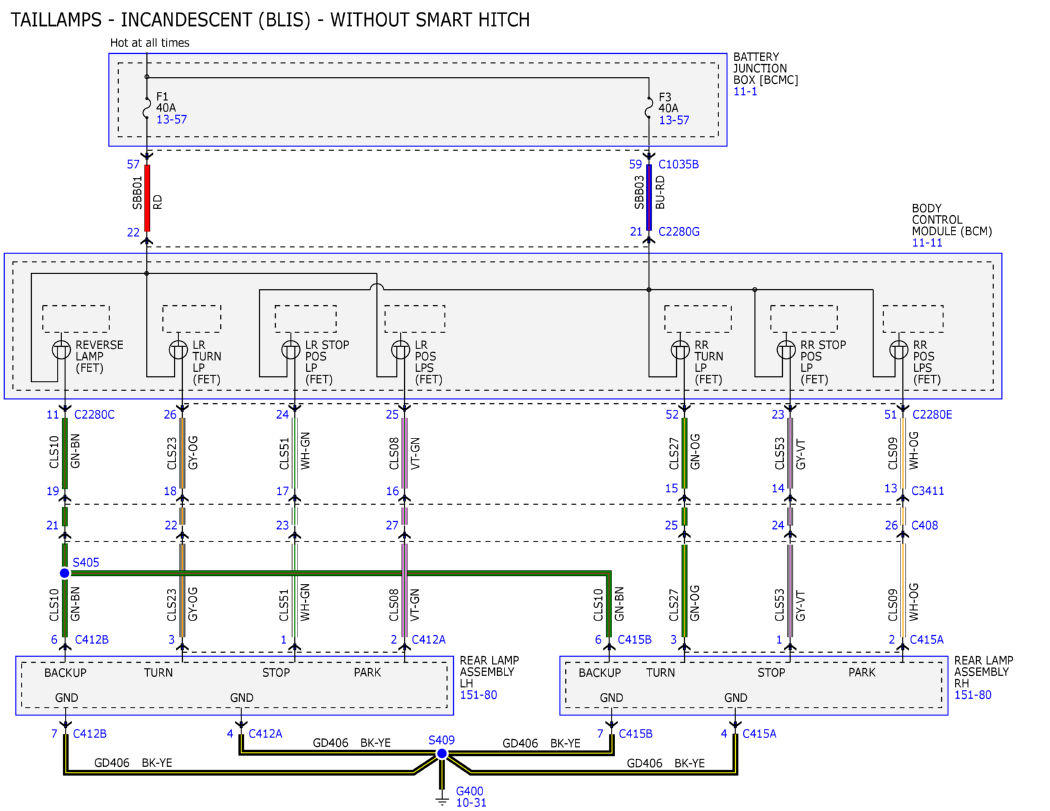

Fig 2: Reversing Lamps Wiring Diagram (2 Of 5)

Courtesy of FORD MOTOR COMPANY

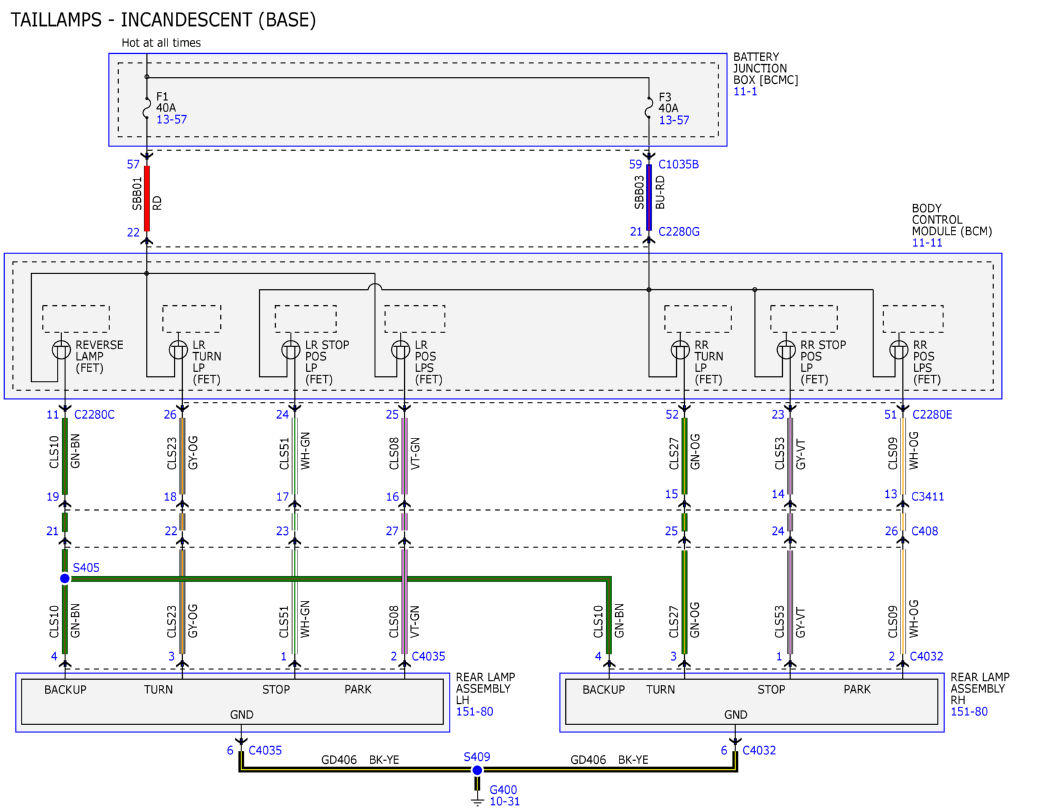

Fig 3: Reversing Lamps Wiring Diagram (3 Of 5)

Courtesy of FORD MOTOR COMPANY

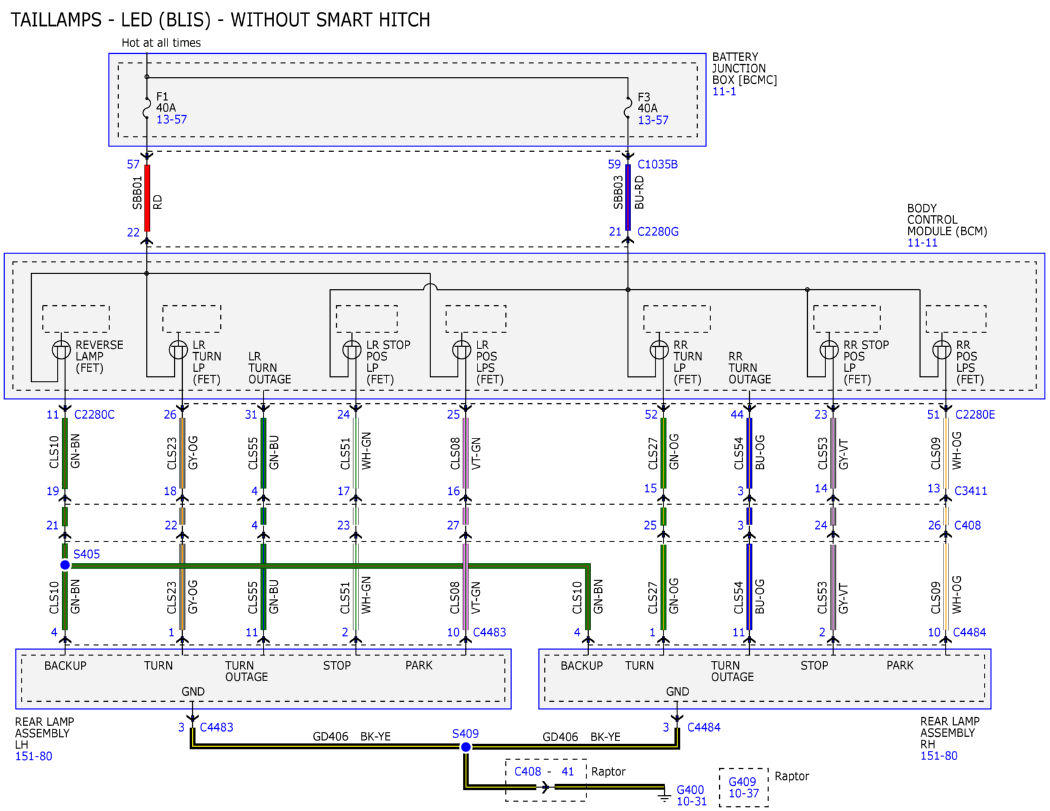

Fig 4: Reversing Lamps Wiring Diagram (4 Of 5)

Courtesy of FORD MOTOR COMPANY

Fig 5: Reversing Lamps Wiring Diagram (5 Of 5)

Courtesy of FORD MOTOR COMPANY
