Power Tailgate/Retractable Running Boards

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

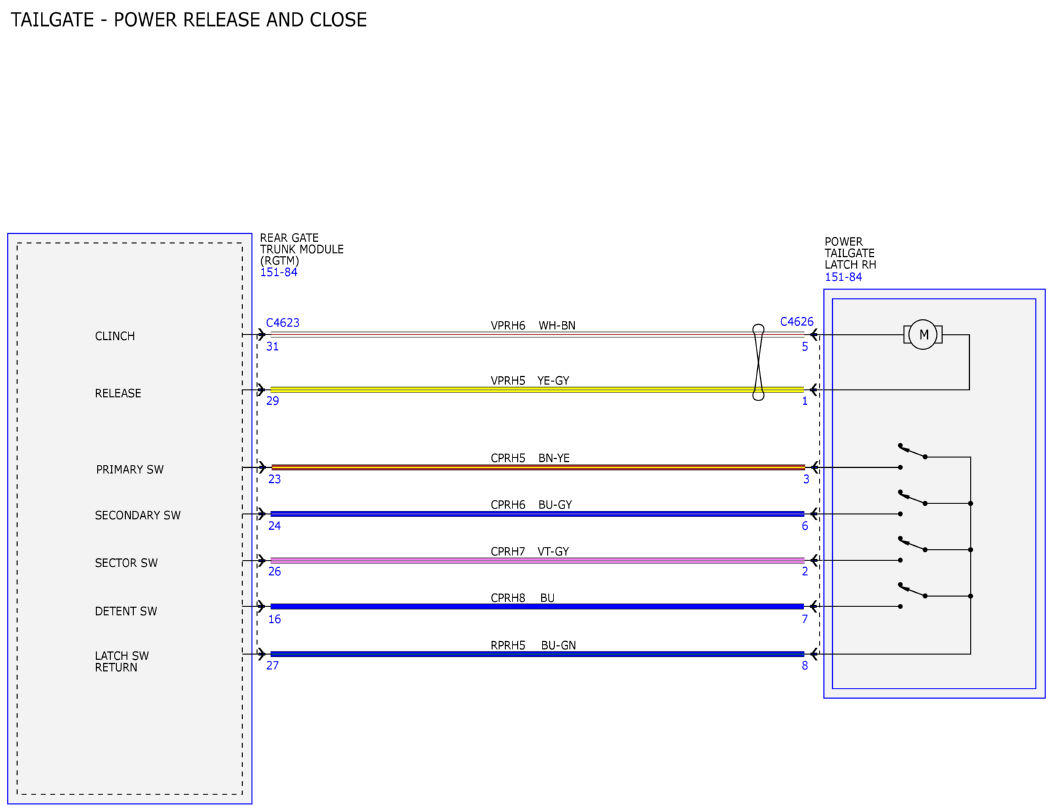

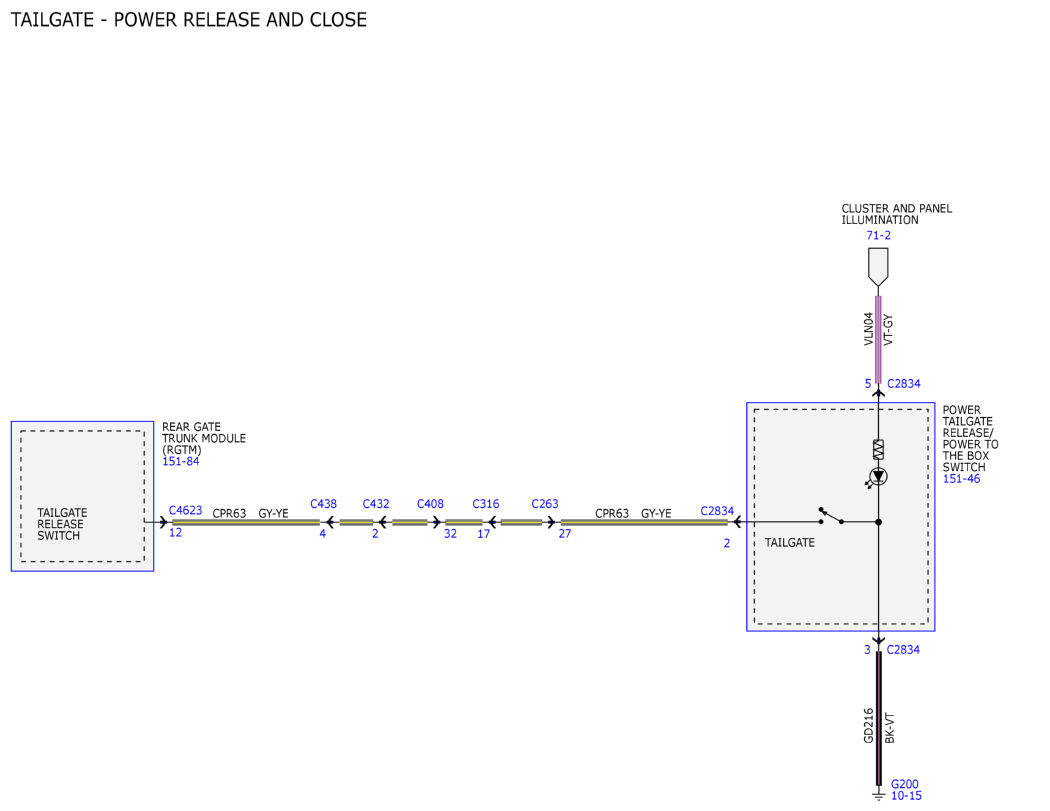

Fig 1: Power Tailgate/Retractable Running Boards Wiring Diagram (1 Of 9)

Courtesy of FORD MOTOR COMPANY

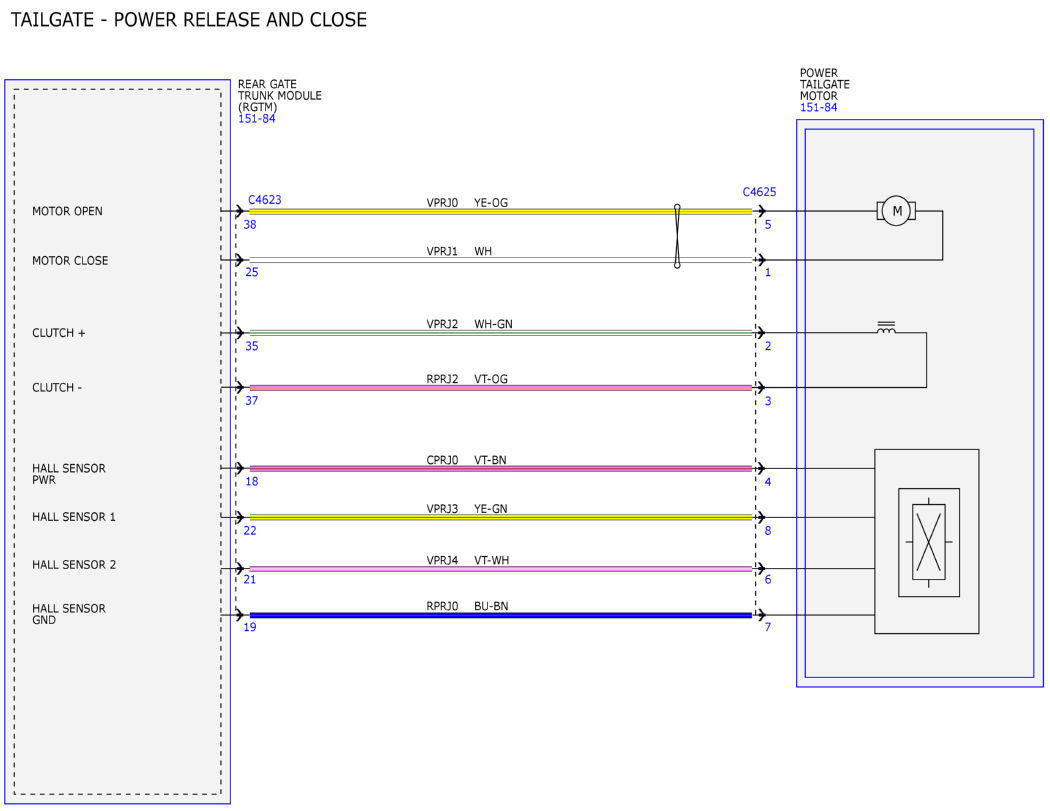

Fig 2: Power Tailgate/Retractable Running Boards Wiring Diagram (2 Of 9)

Courtesy of FORD MOTOR COMPANY

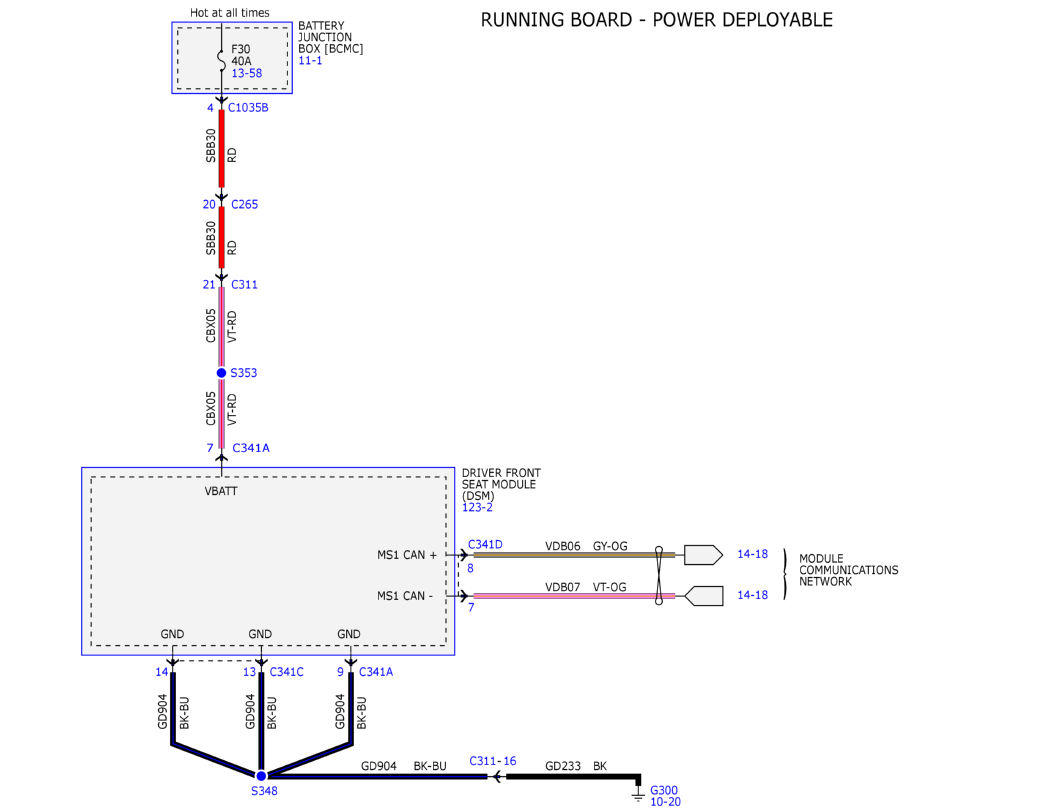

Fig 3: Power Tailgate/Retractable Running Boards Wiring Diagram (3 Of 9)

Courtesy of FORD MOTOR COMPANY

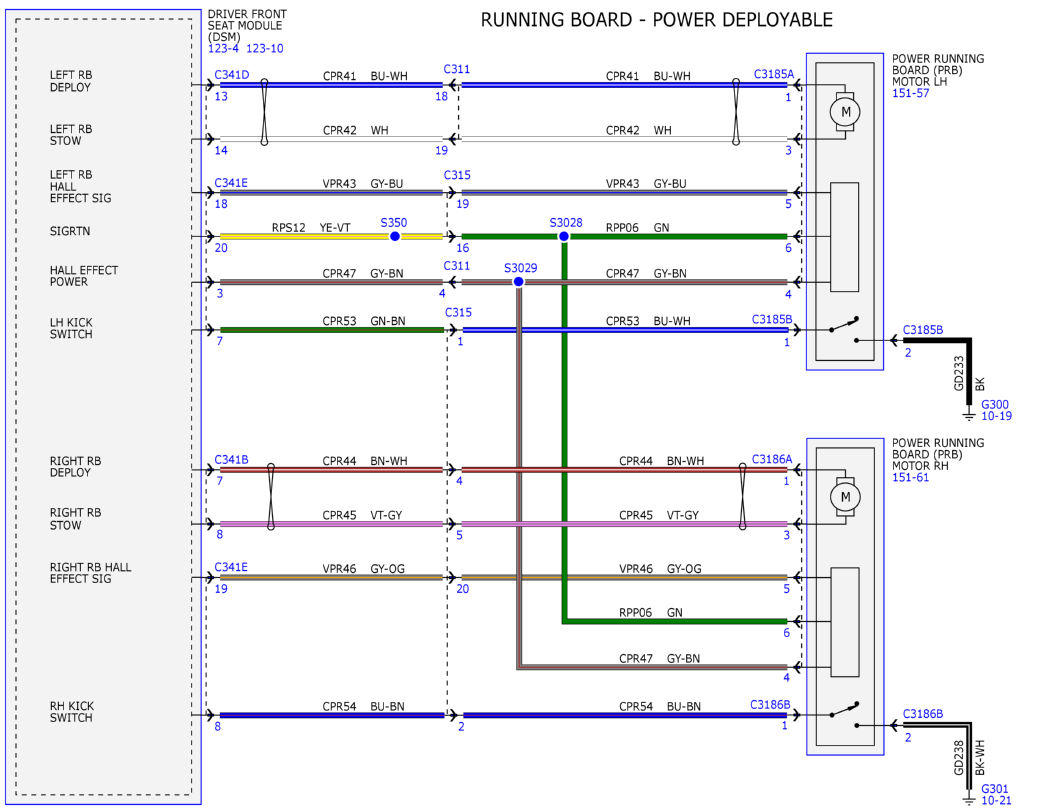

Fig 4: Power Tailgate/Retractable Running Boards Wiring Diagram (4 Of 9)

Courtesy of FORD MOTOR COMPANY

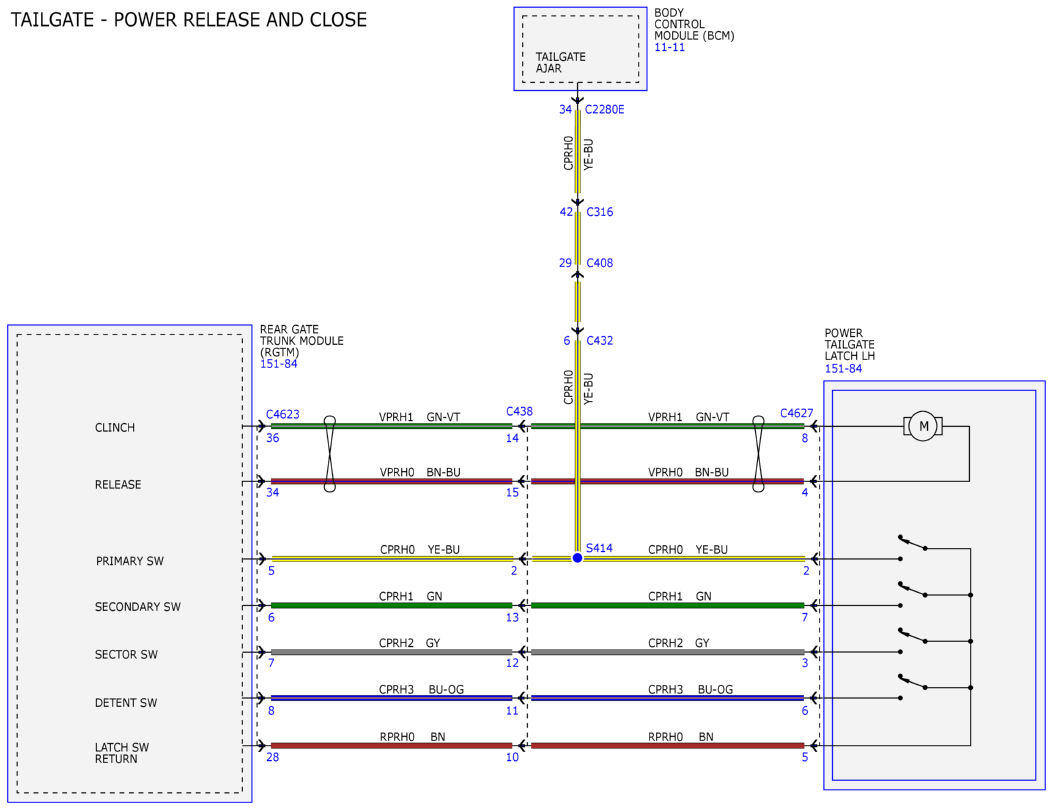

Fig 5: Power Tailgate/Retractable Running Boards Wiring Diagram (5 Of 9)

Courtesy of FORD MOTOR COMPANY

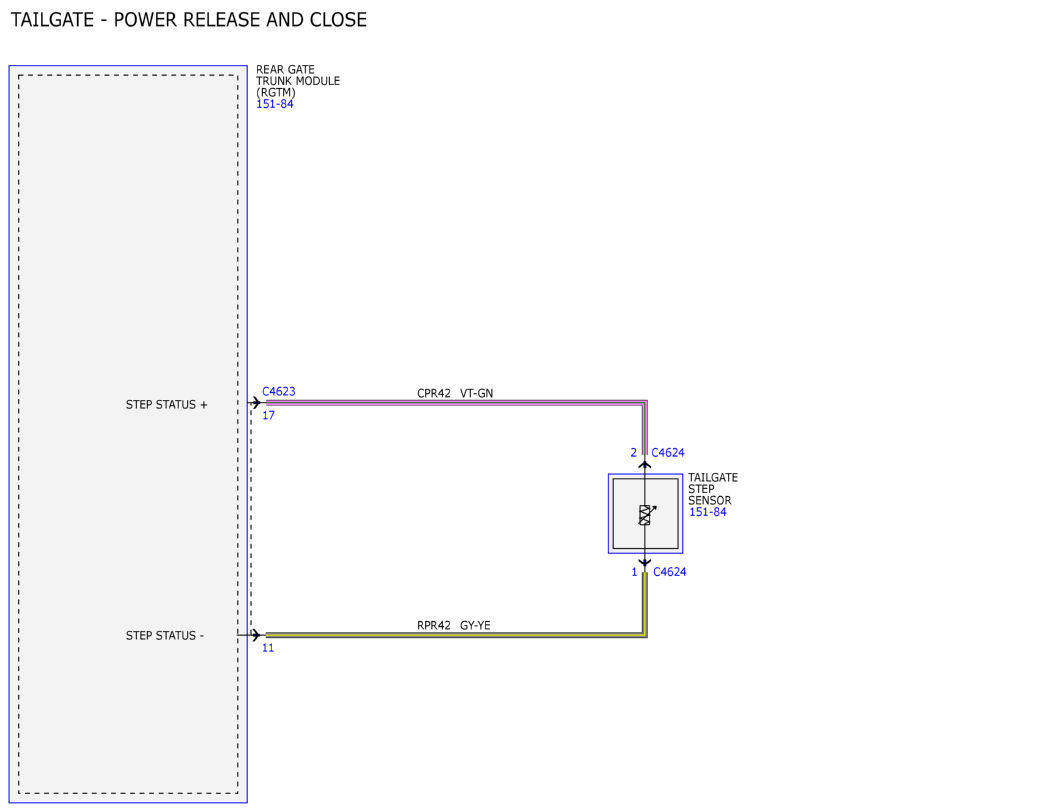

Fig 6: Power Tailgate/Retractable Running Boards Wiring Diagram (6 Of 9)

Courtesy of FORD MOTOR COMPANY

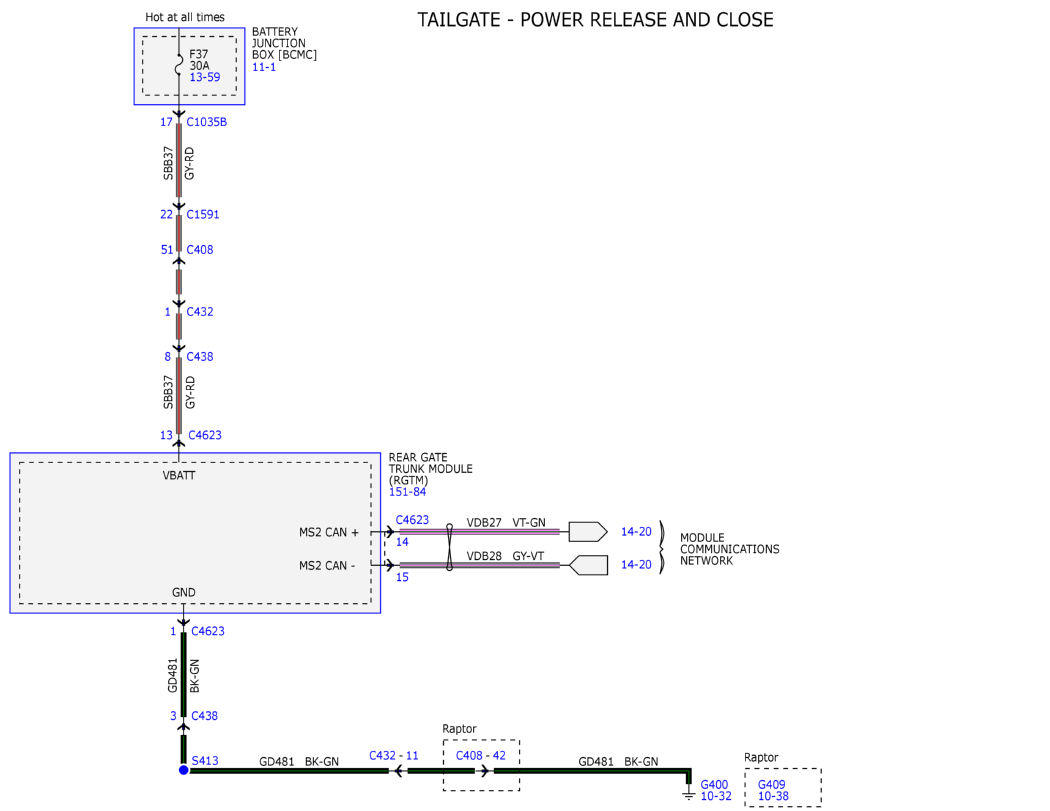

Fig 7: Power Tailgate/Retractable Running Boards Wiring Diagram (7 Of 9)

Courtesy of FORD MOTOR COMPANY

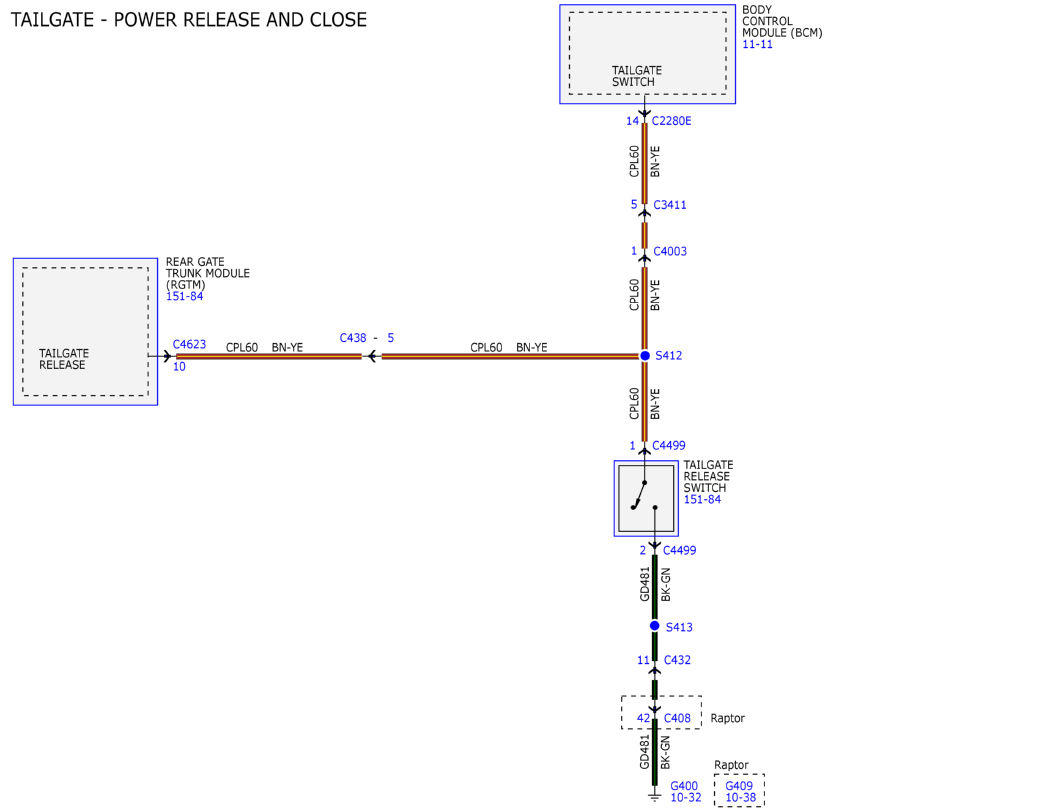

Fig 8: Power Tailgate/Retractable Running Boards Wiring Diagram (8 Of 9)

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Tailgate/Retractable Running Boards Wiring Diagram (9 Of 9)

Courtesy of FORD MOTOR COMPANY
