Memory Seats

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

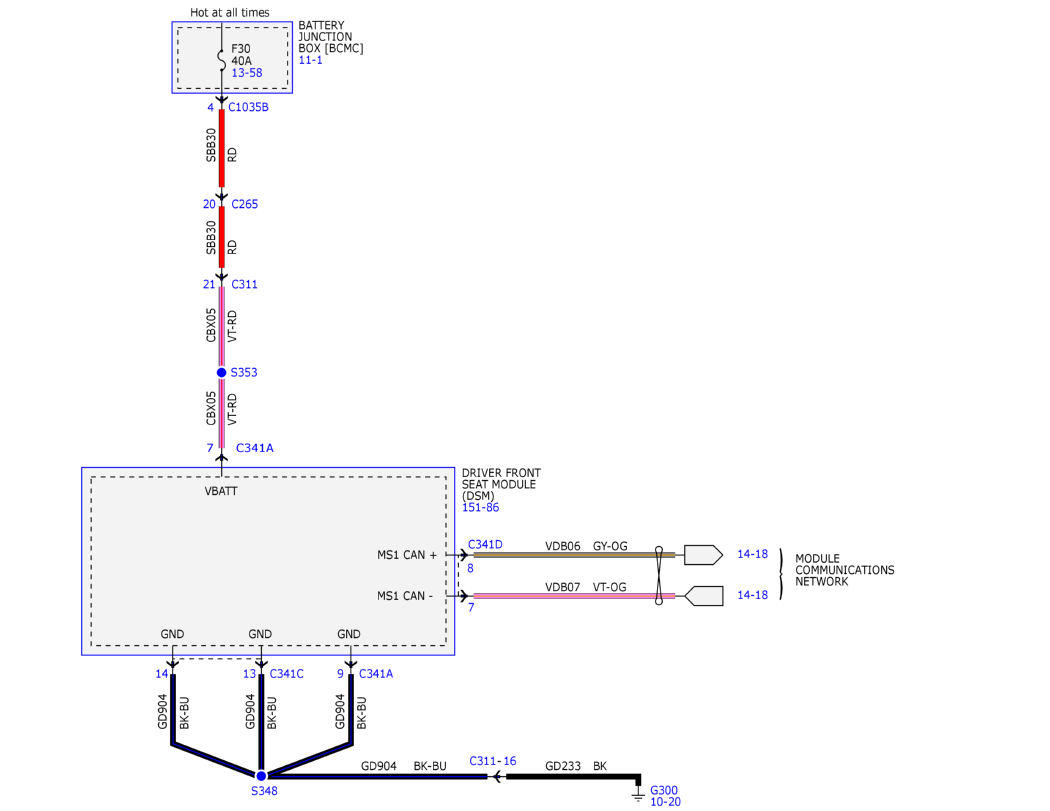

Fig 1: Memory Seats Wiring Diagram (1 Of 10)

Courtesy of FORD MOTOR COMPANY

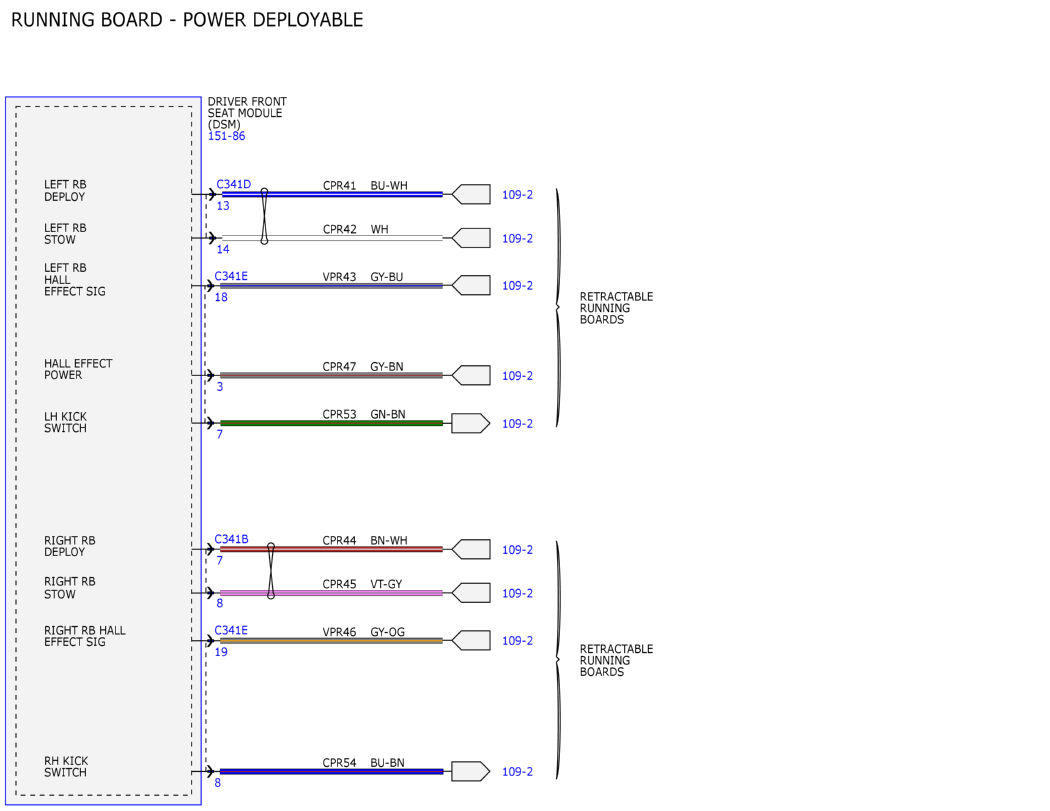

Fig 2: Memory Seats Wiring Diagram (2 Of 10)

Courtesy of FORD MOTOR COMPANY

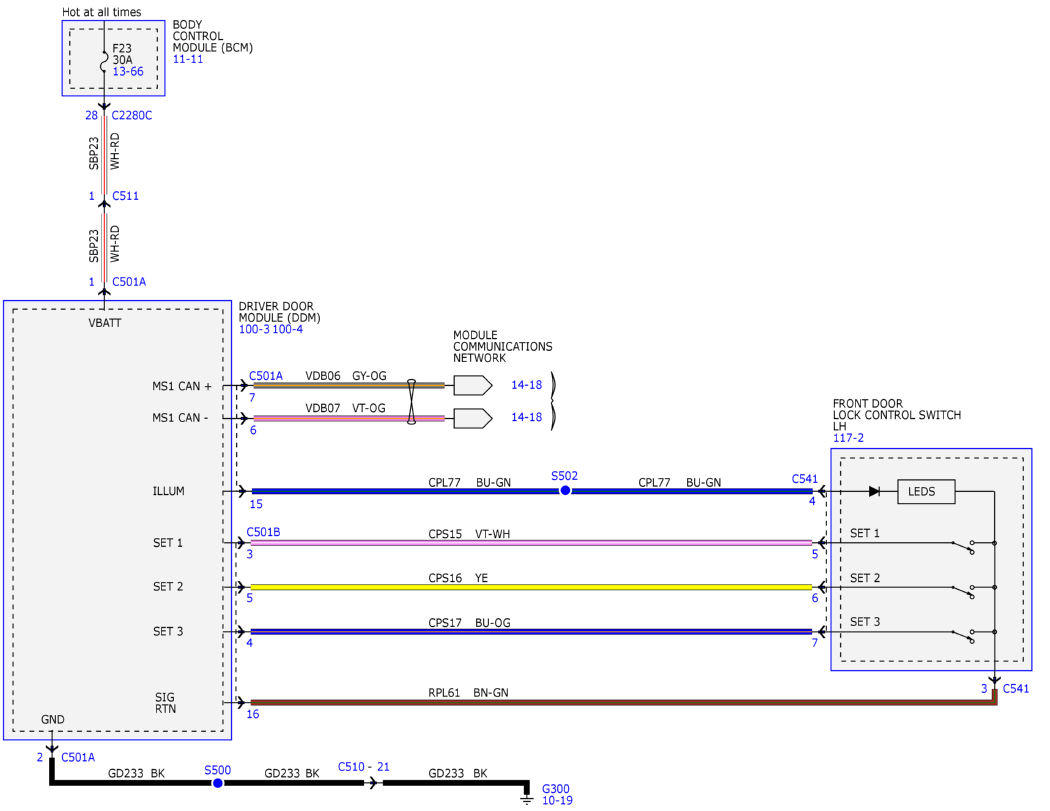

Fig 3: Memory Seats Wiring Diagram (3 Of 10)

Courtesy of FORD MOTOR COMPANY

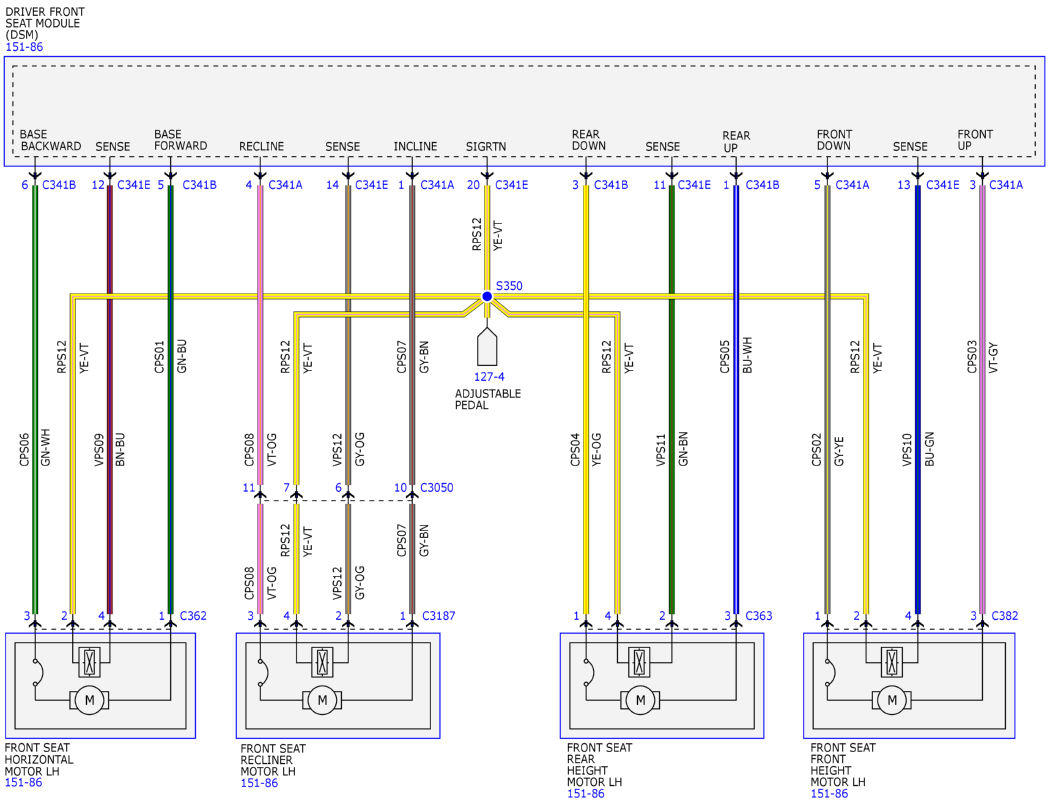

Fig 4: Memory Seats Wiring Diagram (4 Of 10)

Courtesy of FORD MOTOR COMPANY

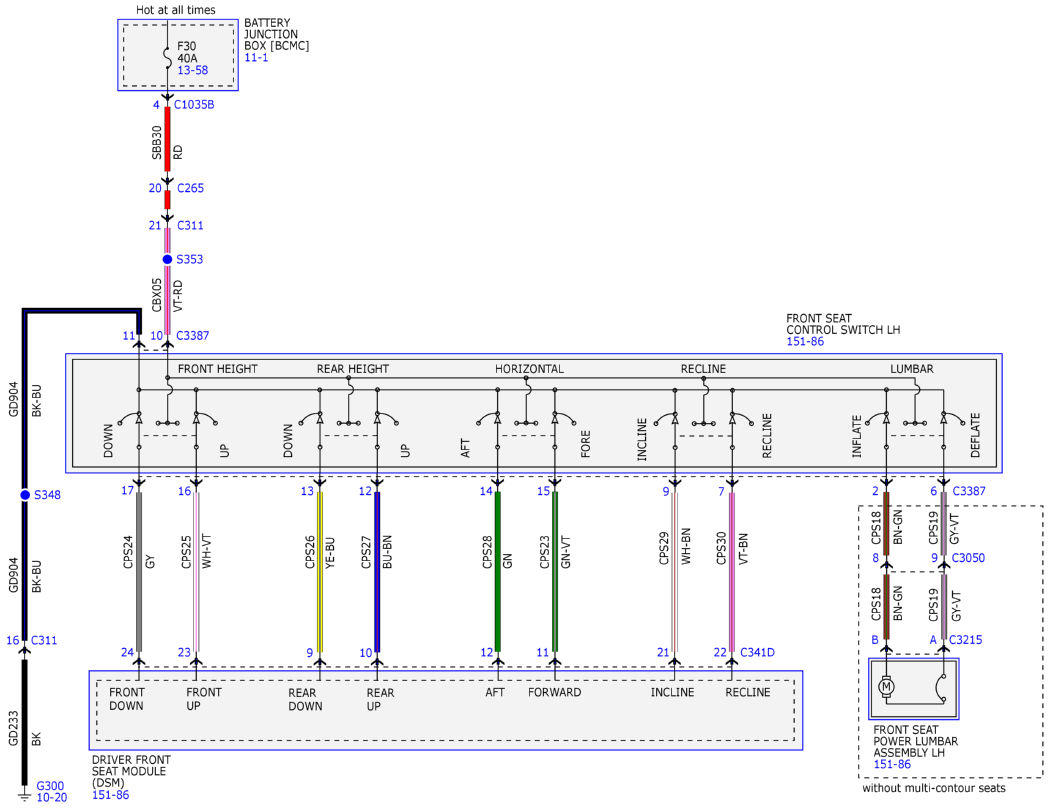

Fig 5: Memory Seats Wiring Diagram (5 Of 10)

Courtesy of FORD MOTOR COMPANY

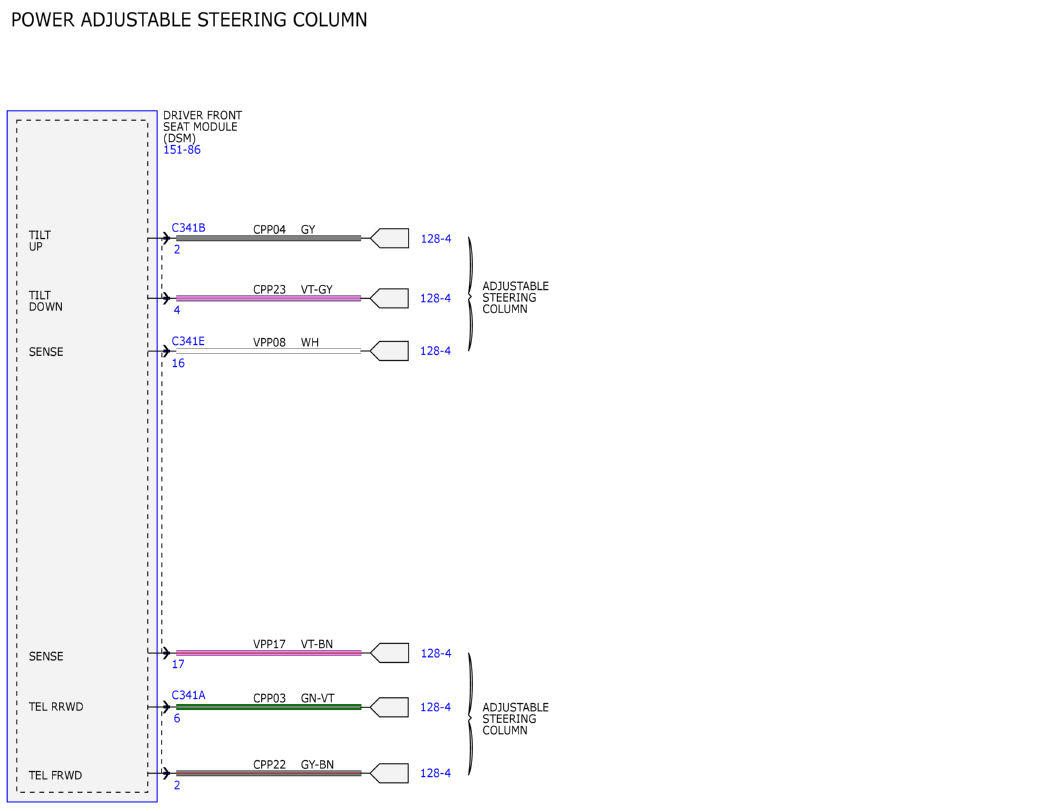

Fig 6: Memory Seats Wiring Diagram (6 Of 10)

Courtesy of FORD MOTOR COMPANY

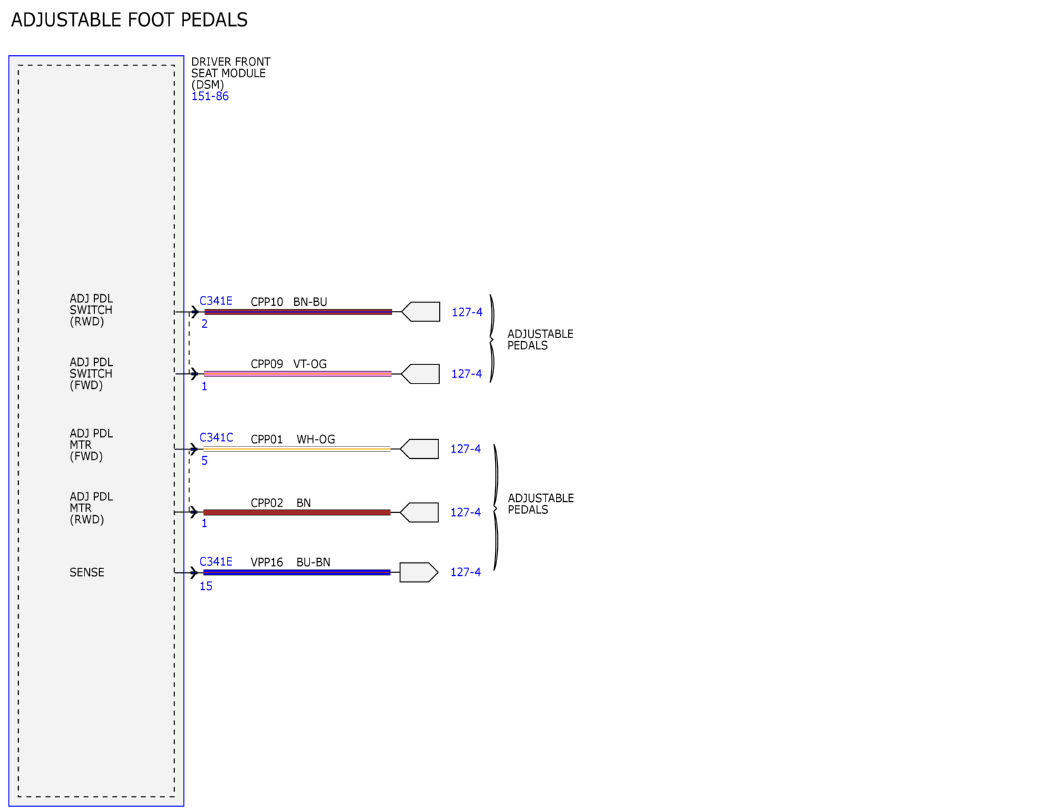

Fig 7: Memory Seats Wiring Diagram (7 Of 10)

Courtesy of FORD MOTOR COMPANY

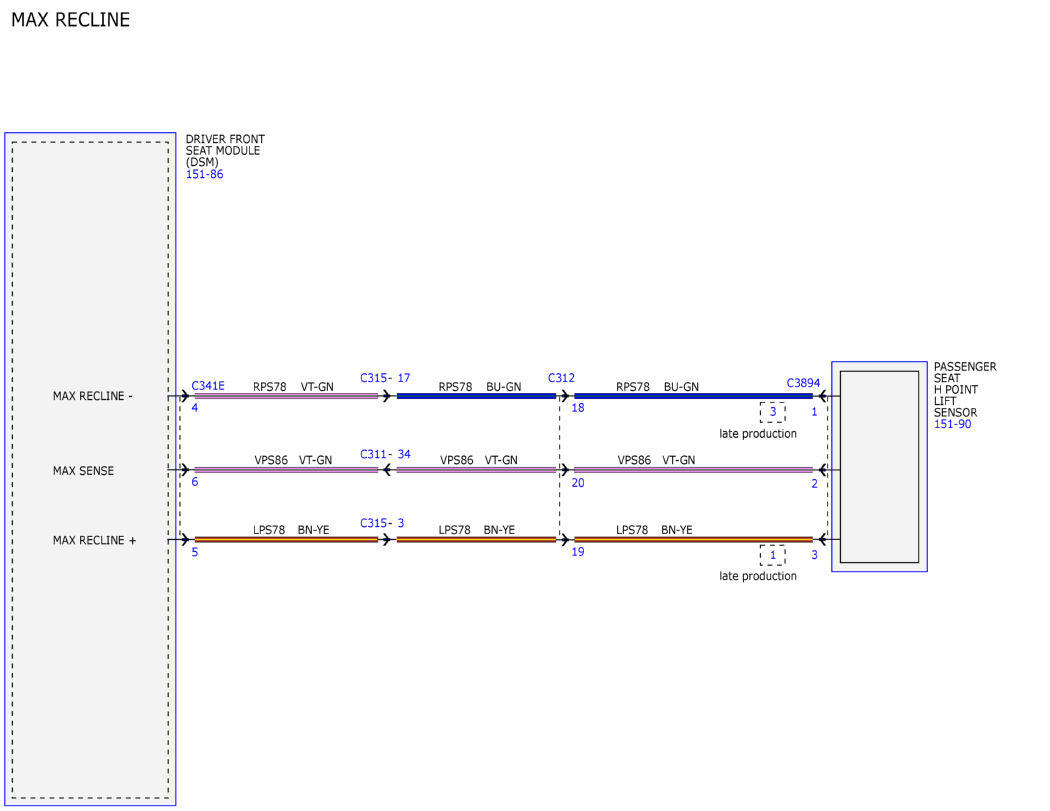

Fig 8: Memory Seats Wiring Diagram (8 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Memory Seats Wiring Diagram (9 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Memory Seats Wiring Diagram (10 Of 10)

Courtesy of FORD MOTOR COMPANY
